F100BET (2006)
CONTROL

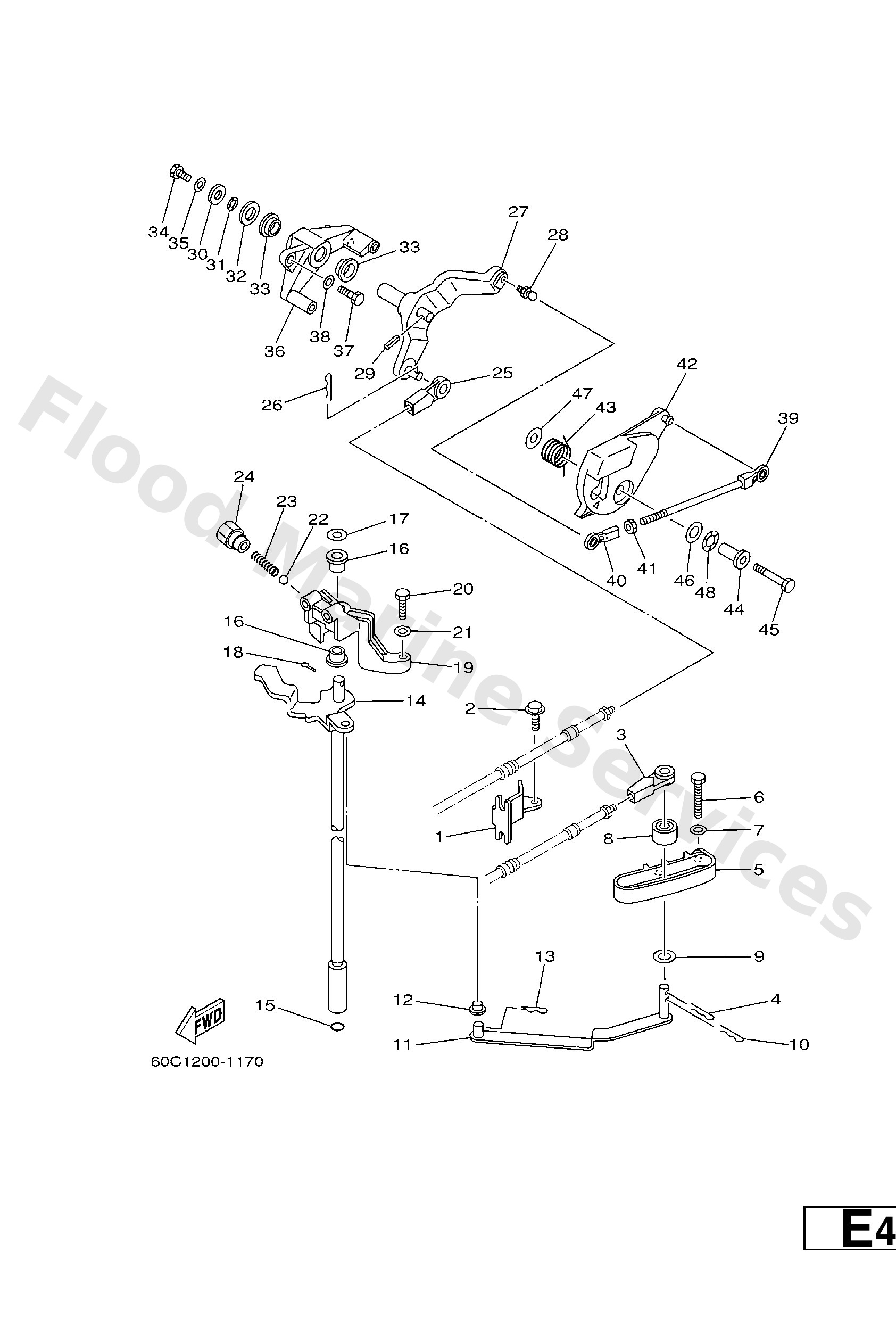

Diagram: CONTROL
Parts List
Reference
Description
Price
1
67F4853800
Clamp, cable 1
Loading…
↗
2
9010906M86
Bolt
Loading…
↗
3
6634834400
Cable end, remote control
Loading…
↗
4
9046818008
Clip 620436610000
Loading…
↗
5
67F4411700
Bracket
Loading…
↗
6
9709506040
Bolt (682)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
6884412200
Bushing, shift rod lever
Loading…
↗
9
9020207M07
Washer, plate (688)
Loading…
↗
11
67F4412100
Lever, shift rod
Loading…
↗
12
9038606M12
Bushing (688)
Loading…
↗
14
60C4412030
X (25.3")
Handle gear shift assembly
Loading…
↗
15
9321009165
O-ring
Loading…
↗
16
9038690M90
Bush(61a)
Loading…
↗
17
9020109M02
Washer, plate(61a)
Loading…
↗
18
9149020015
Pin, cotter (648)
Loading…
↗
19
68V4411800
Bracket
Loading…
↗
20
9707506025
Bolt
Loading…
↗
22
9350104M02
Ball (697)
Loading…
↗
23
9050112082
Spring 6484411600
Loading…
↗
24
6484271500
Bushing 2
Loading…
↗
27
67F421540094
Lever, throttle control
Loading…
↗
28
6638551800
Joint, ball
Loading…
↗
29
9169030018
926-51502-00 pin, spring (700)
Loading…
↗
30
9020106068
Washer,plate (6k8)
Loading…
↗
31
9020612M00
Washer, wave (676)
Loading…
↗
32
9299012600
Washer, plate(663)
Loading…
↗
33
9038612069
Bush(666)
Loading…
↗
34
9709506012
Bolt(gh1)
Loading…
↗
36
67F416610094
Bracket
Loading…
↗
37
9709506025
Bolt
Loading…
↗
39
67F4123700
Joint, link
Loading…
↗
40
6824123700
Joint, link 2
Loading…
↗
41
9538005600
Nut, hexagon (663)
Loading…
↗
42
67F4121301
Cam, accel.
Loading…
↗
43
67F4413500
Spring
Loading…
↗
44
9038706M82
Collar
Loading…
↗
45
9709506035
Bolt(j52)
Loading…
↗
46
9020110M02
Washer, plate(6g9)
Loading…
↗
47
9020106M31
Washer (6a0)
Loading…
↗
48
9020610M04
Washer, wave (676)
Loading…
↗
