F100DET (2005)
CONTROL

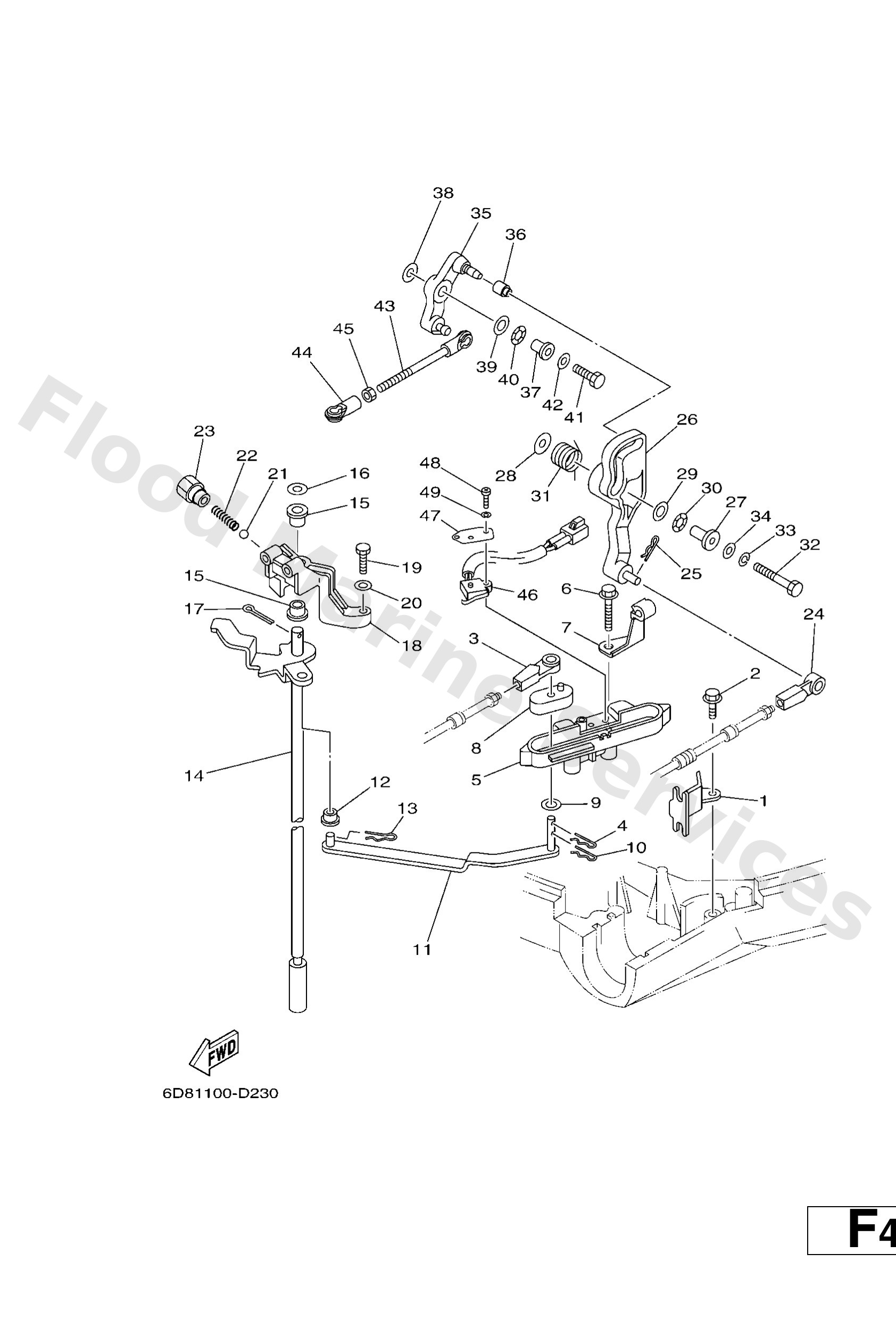

Diagram: CONTROL
Parts List
Reference
Description
Price
1
67F4853800
Clamp, cable 1
Loading…
↗
2
9010906M86
Bolt
Loading…
↗
3
6634834400
Cable end, remote control
Loading…
↗
4
9046818008
Clip 620436610000
Loading…
↗
5
6D84411700
Bracket
Loading…
↗
6
9759506550
Bolt, hexagon w/w deep recess
Loading…
↗
7
9046210027
Clamp
Loading…
↗
8
68V4412201
Bushing, shift rod lever
Loading…
↗
9
9020207M07
Washer, plate (688)
Loading…
↗
11
67F4412100
Lever, shift rod
Loading…
↗
12
9038606M12
Bushing (688)
Loading…
↗
14
67F4412010
L
Handle gear shift assembly
Loading…
↗
15
9038690M90
Bush(61a)
Loading…
↗
16
9020109M02
Washer, plate(61a)
Loading…
↗
17
9149020015
Pin, cotter (648)
Loading…
↗
18
67F4411800
Bracket
Loading…
↗
19
9707506025
Bolt
Loading…
↗
20
9299506600
Washer, plain (646)
Loading…
↗
21
9350104M02
Ball (697)
Loading…
↗
22
9050112082
Spring 6484411600
Loading…
↗
23
6484271500
Bushing 2
Loading…
↗
26
6D84215400
Lever, throttle control
Loading…
↗
27
9038706M21
Collar
Loading…
↗
28
9020106M31
Washer (6a0)
Loading…
↗
29
9020110M02
Washer, plate(6g9)
Loading…
↗
30
9020610M04
Washer, wave (676)
Loading…
↗
31
67F4413500
Spring
Loading…
↗
32
9709506035
Bolt(j52)
Loading…
↗
33
9299506100
Washer(6a1)
Loading…
↗
35
6D84215700
Lever, throttle
Loading…
↗
36
68V4217100
Bushing
Loading…
↗
37
9038706013
Collar
Loading…
↗
41
9709506025
Bolt
Loading…
↗
43
6D84123700
Joint, link
Loading…
↗
44
6824123700
Joint, link 2
Loading…
↗
45
9538005600
Nut, hexagon (663)
Loading…
↗
46
60V8259F00
Switch assembly
Loading…
↗
47
61A8258801
Plate
Loading…
↗
48
9788504016
Screw, panhead (796)
Loading…
↗
49
9299504100
Ybs67-4 washer, spring
Loading…
↗
