Yamaha Outboard Parts - CONTROL - F115AET (2014) | Flood Marine
New Search
Parts
New Outboards
Home
F115AET (2014)
CONTROL

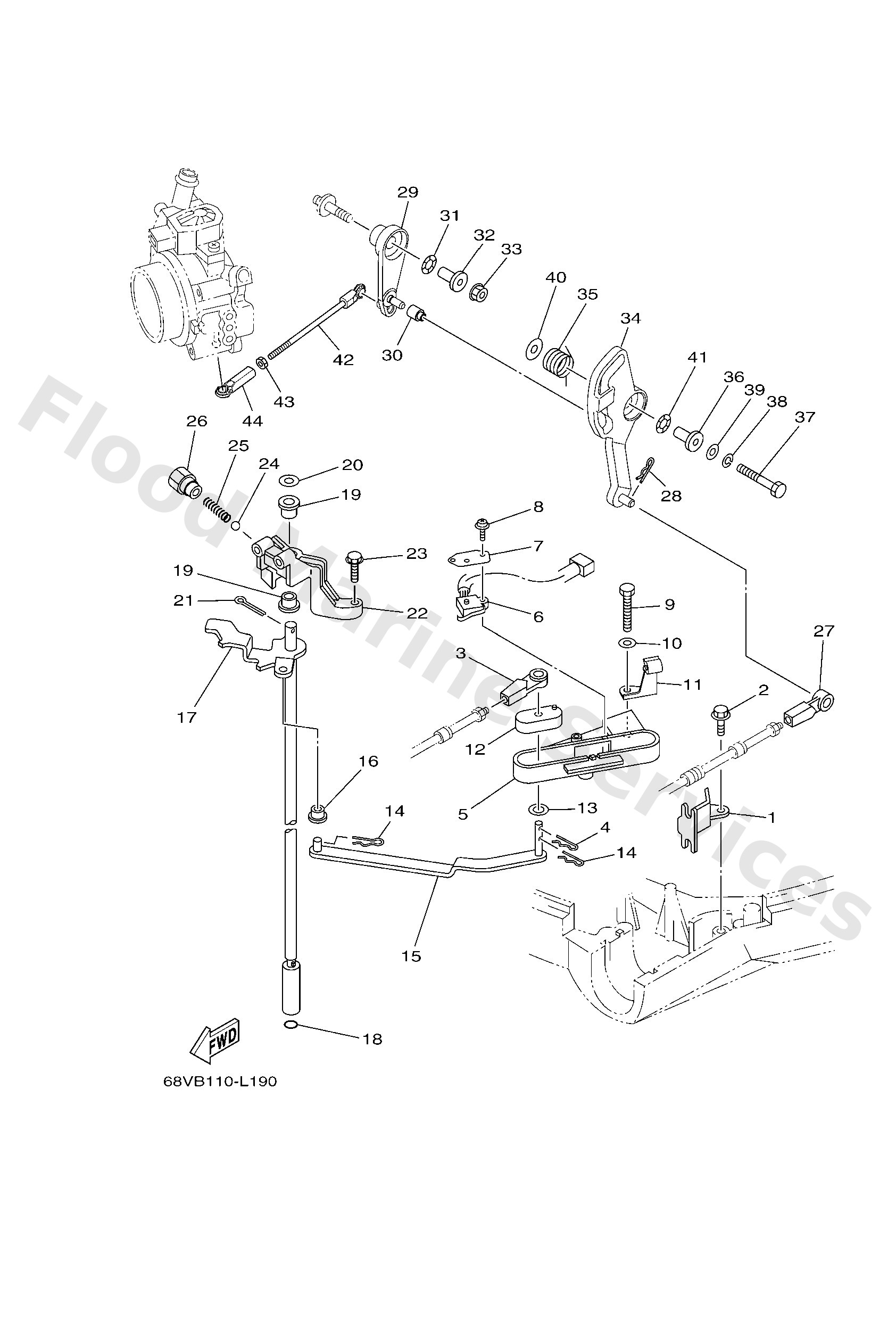

Diagram: CONTROL
Parts List
Reference
Description
Price
1
67F4853800
Clamp, cable 1
Loading…
↗
2
9010906M86
Bolt
Loading…
↗
3
6634834400
Cable end, remote control
Loading…
↗
4
9046818008
Clip 620436610000
Loading…
↗
5
68V4411702
Bracket
Loading…
↗
6
60V8259F00
Switch assembly
Loading…
↗
7
61A8258801
Plate
Loading…
↗
8
9798504116
Screw, with washer(61b)
Loading…
↗
9
9709506040
Bolt (682)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
9046210027
Clamp
Loading…
↗
12
68V4412201
Bushing, shift rod lever
Loading…
↗
13
9020207M07
Washer, plate (688)
Loading…
↗
15
68V4412100
Lever, shift rod
Loading…
↗
16
9038606M12
Bushing (688)
Loading…
↗
17
68V4412011
L(20.3")
Handle gear shift assembly
Loading…
↗
17
68V4412031
X(25.3")
Handle gear shift assembly
Loading…
↗
18
9321009165
O-ring
Loading…
↗
19
9038690M90
Bush(61a)
Loading…
↗
20
9020109M02
Washer, plate(61a)
Loading…
↗
21
9149020015
Pin, cotter (648)
Loading…
↗
22
68V4411800
Bracket
Loading…
↗
23
9757506525
Bolt, hexagon w/w deep recess
Loading…
↗
24
9350104M02
Ball (697)
Loading…
↗
25
9050112082
Spring 6484411600
Loading…
↗
26
6484271500
Bushing 2
Loading…
↗
29
68V4215410
Lever, throttle control
Loading…
↗
30
68V4217100
Bushing
Loading…
↗
31
9020610M04
Washer, wave (676)
Loading…
↗
32
9038706M21
Collar
Loading…
↗
33
9017906M28
Nut(63v)
Loading…
↗
34
68V4121300
Cam, accel.
Loading…
↗
35
67F4413500
Spring
Loading…
↗
37
9709506035
Bolt(j52)
Loading…
↗
38
9299506100
Washer(6a1)
Loading…
↗
40
9020106M62
Washer, plate (6e5)
Loading…
↗
42
6884121101
Link, accel
Loading…
↗
43
9538005600
Nut, hexagon (663)
Loading…
↗
44
6824123700
Joint, link 2
Loading…
↗
