F130A (2025)
CONTROL

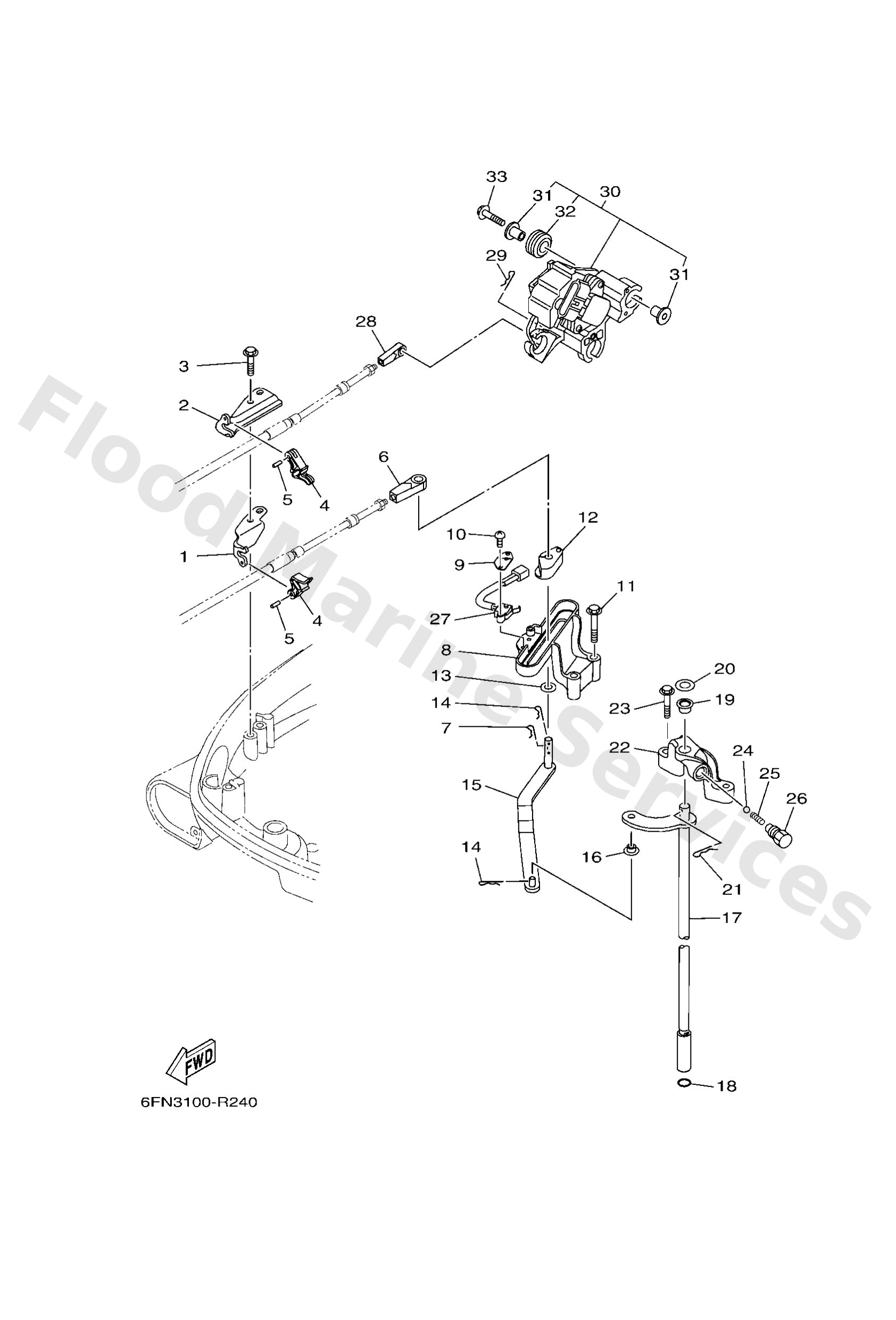

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6EK4853101
Bracket, remote control 1
Loading…
↗
2
6EK4853200
Bracket, remote control 2
Loading…
↗
3
9010906M81
Bolt
Loading…
↗
4
6EK4853800
Clamp, cable 1
Loading…
↗
5
9169030010
Pin, spring (663)
Loading…
↗
6
6E54834400
Cable end, remote control
Loading…
↗
7
9046818008
Clip 620436610000
Loading…
↗
8
6EK4411701
Bracket
Loading…
↗
9
61A8258801
Plate
Loading…
↗
10
9798504116
Screw, with washer(61b)
Loading…
↗
11
95D7506040
Bolt, flange deep recess
Loading…
↗
12
63P4412200
Bushing, shift rod lever
Loading…
↗
13
9020208M20
Washer, plate (6e5)
Loading…
↗
15
6EK4412100
Lever, shift rod
Loading…
↗
16
9038606M12
Bushing (688)
Loading…
↗
17
6EK4412011
X(25.3")
Handle gear shift assembly
Loading…
↗
17
6EK4412001
L(20.3")
Handle gear shift assembly
Loading…
↗
18
9321009165
O-ring
Loading…
↗
19
9038610001
Bush
Loading…
↗
20
9020111008
Washer, plate
Loading…
↗
21
90468180A0
Clip
Loading…
↗
22
6EK4411800
Bracket
Loading…
↗
23
95D9506030
Bolt, flange deep recess
Loading…
↗
24
9350104M02
Ball (697)
Loading…
↗
25
9050112082
Spring 6484411600
Loading…
↗
26
6484271500
Bushing 2
Loading…
↗
27
60V8259F01
Switch assembly
Loading…
↗
30
6EM8A41000
Sensor unit
Loading…
↗
31
69J1371600
Collar
Loading…
↗
32
6EM1359300
Damper
Loading…
↗
33
9011906297
Bolt, with washer
Loading…
↗
