F150FET (2025)
CONTROL

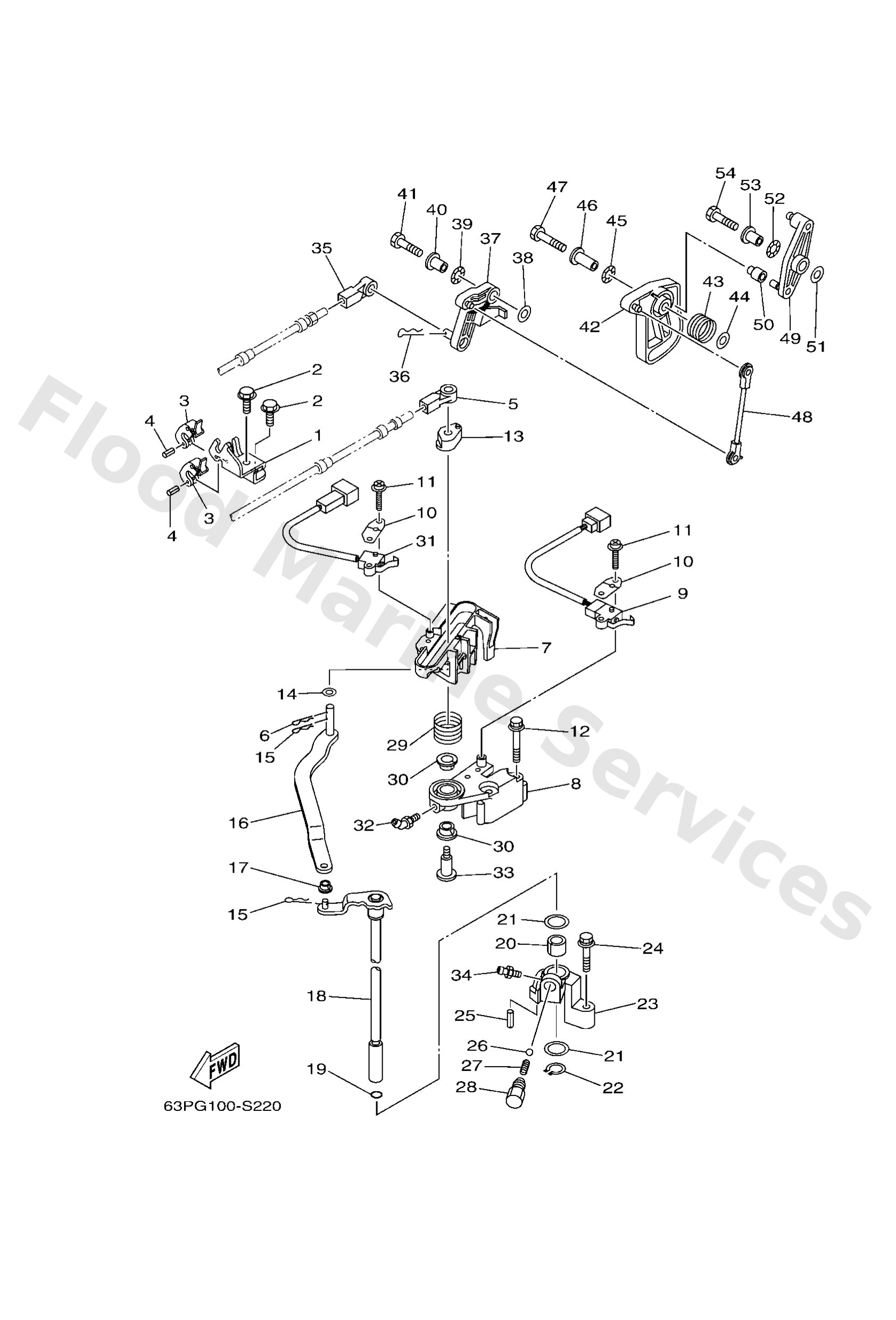

Diagram: CONTROL
Parts List
Reference
Description
Price
1
63P4853110
Bracket, remote control 1
Loading…
↗
2
9010906316
Bolt
Loading…
↗
3
6E54853800
Clamp, cable
Loading…
↗
4
9169030010
Pin, spring (663)
Loading…
↗
5
6E54834400
Cable end, remote control
Loading…
↗
6
9046818008
Clip 620436610000
Loading…
↗
7
6DA4417600
Bracket
Loading…
↗
8
63P4411701
Bracket
Loading…
↗
9
69J8259F00
Switch assembly
Loading…
↗
10
61A8258801
Plate
Loading…
↗
11
9798504116
Screw, with washer(61b)
Loading…
↗
12
97E9506550
Bolt, hexagon w/w deep recess
Loading…
↗
13
63P4412200
Bushing, shift rod lever
Loading…
↗
14
9020208M20
Washer, plate (6e5)
Loading…
↗
16
6DA4412100
Lever, shift rod
Loading…
↗
17
9038606M12
Bushing (688)
Loading…
↗
18
6DA4412012
Handle gear shift assembly
Loading…
↗
19
9321009165
O-ring
Loading…
↗
20
9038616M66
Bush(6e5)
Loading…
↗
21
9020216061
Washer, plate(663)
Loading…
↗
22
9341016006
Circlip
Loading…
↗
23
63P4411800
Bracket
Loading…
↗
24
97E7506535
Bolt, hexagon w/w deep recess
Loading…
↗
26
9350104M02
Ball (697)
Loading…
↗
27
9050112082
Spring 6484411600
Loading…
↗
28
6484271500
Bushing 2
Loading…
↗
29
9050820M31
Spring, torsion(61a)
Loading…
↗
30
9038612069
Bush(666)
Loading…
↗
31
60V8259F01
Switch assembly
Loading…
↗
32
9370006M01
Nipple, grease(61a)
Loading…
↗
33
9010908019
Bolt
Loading…
↗
34
9370006M03
Nipple, grease(6a1)
Loading…
↗
37
63P4215410
Lever, throttle control
Loading…
↗
38
9020106M31
Washer (6a0)
Loading…
↗
39
9020610M04
Washer, wave (676)
Loading…
↗
40
9038706M29
Coller (6a0)
Loading…
↗
41
97D9506025
Bolt, hexagon deep recess
Loading…
↗
42
63P4121300
Cam, accel.
Loading…
↗
43
69J4413500
Spring
Loading…
↗
46
9038706M82
Collar
Loading…
↗
47
97D9506035
Bolt, hexagon deep recess
Loading…
↗
48
63P4123700
Joint, link
Loading…
↗
49
63P4215700
Lever, throttle
Loading…
↗
50
68V4217100
Bushing
Loading…
↗
