F2.5AMH (2011)
CONTROL

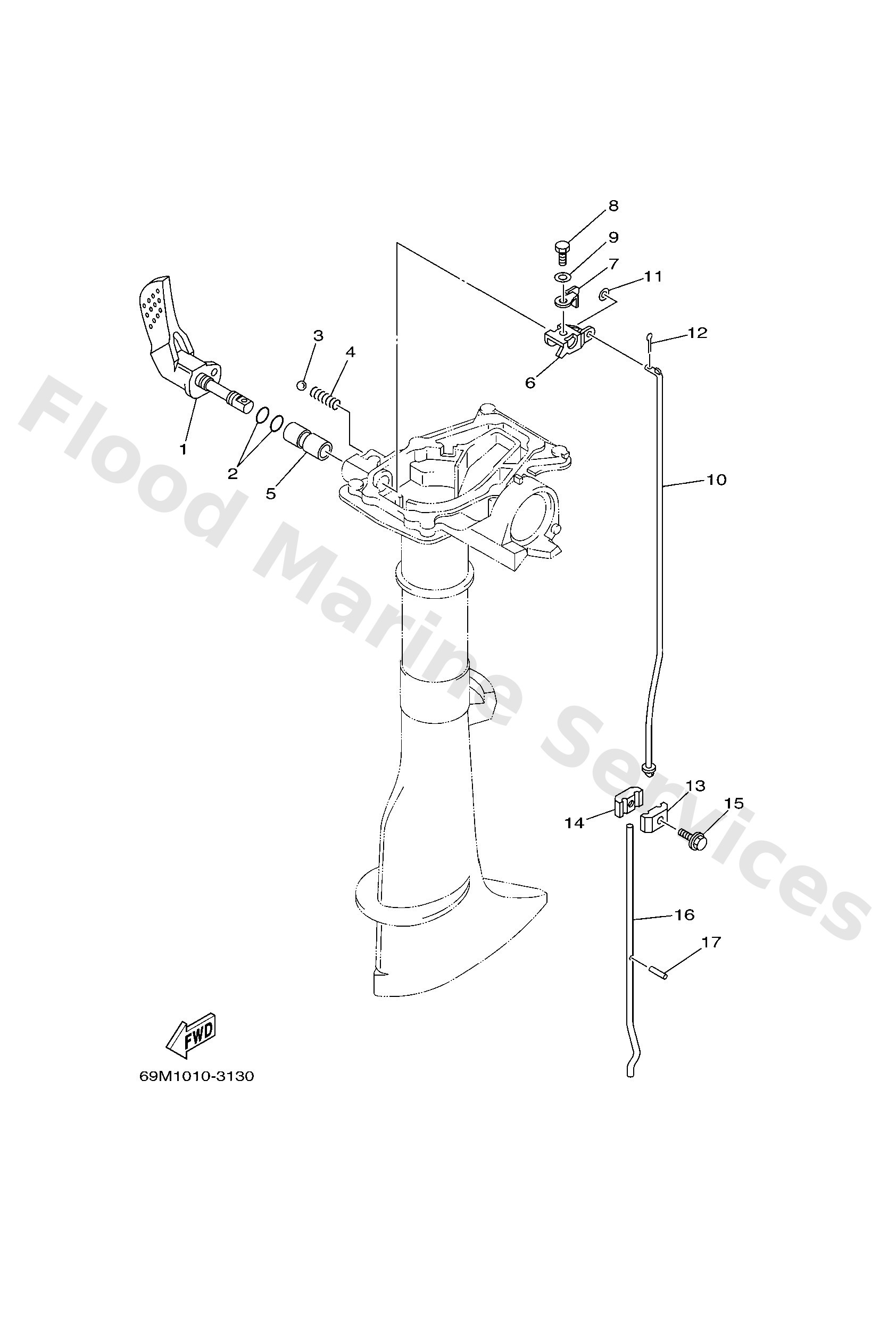

Diagram: CONTROL
Parts List
Reference
Description
Price
1
69MG411100
Handle,gear shift
Loading…
↗
2
9321009350
O-ring
Loading…
↗
3
9350516024
Ball
Loading…
↗
4
9050112802
Spring,compression
Loading…
↗
5
68DG412201
Bushing, shift rod lever
Loading…
↗
6
69MG412100
Lever, shift rod
Loading…
↗
7
69M4412600
Washer, shift rod
Loading…
↗
8
9709505012
Bolt, hexagon
Loading…
↗
9
9299505600
Washer, plain (646)
Loading…
↗
10
69M4414300
Rod, shift
Loading…
↗
11
9299005600
Washer, plain (646)
Loading…
↗
12
9149016010
Pin, cotter
Loading…
↗
13
6N0G414510
Connecter 1
Loading…
↗
14
6N0G414610
Connecter 2
Loading…
↗
15
9011906ME0
Bolt, with washer
Loading…
↗
16
6L54414400
S(17.0")
Rod, shift
Loading…
↗
16
6L54414410
L(22.0")
Rod, shift
Loading…
↗
17
9160925014
Pin, Spring
Loading…
↗
