F225BET (2014)
CONTROL

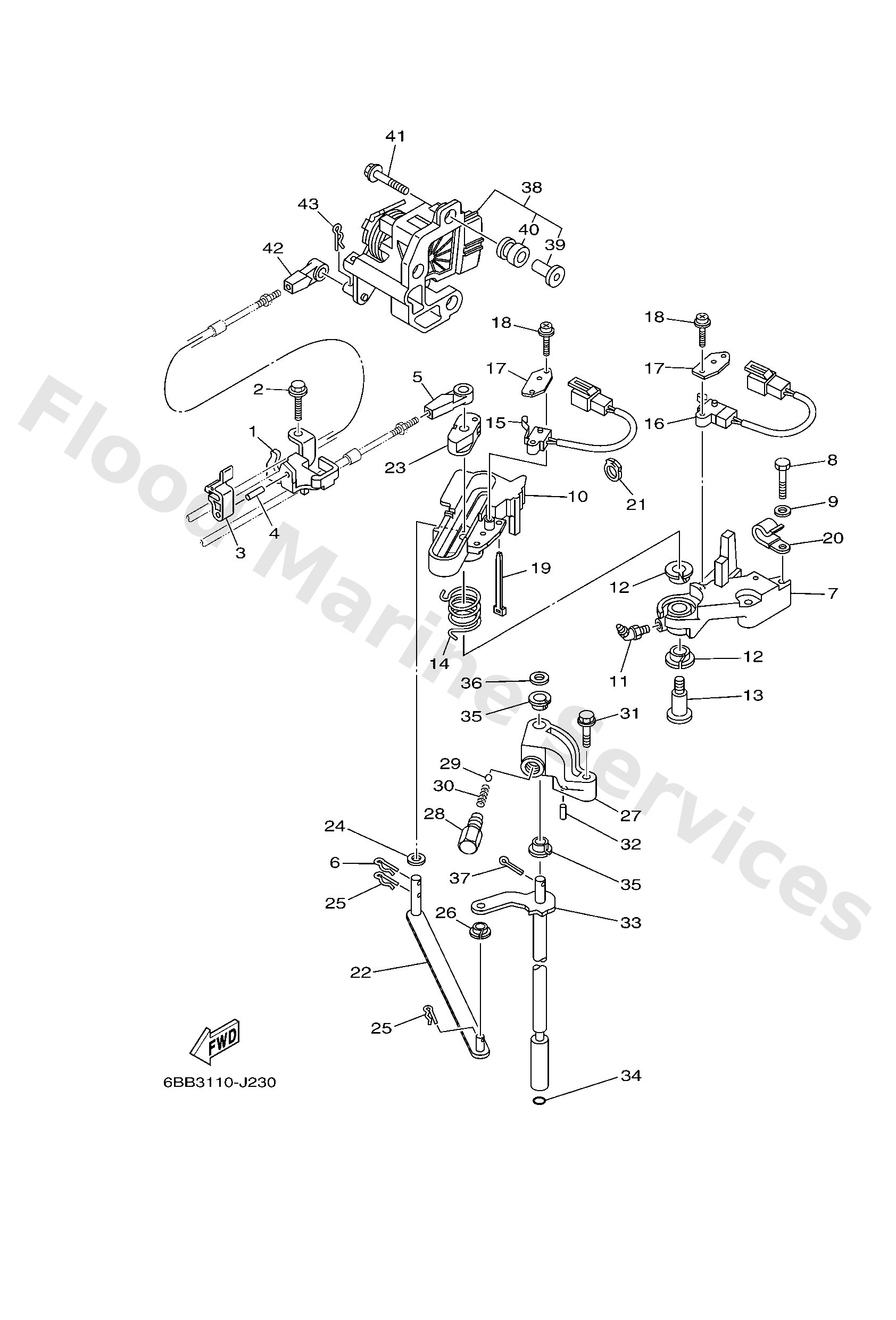

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6P24853100
Bracket, remote control 1
Loading…
↗
2
9010906M86
Bolt
Loading…
↗
3
63P4853800
Clamp, cable 1
Loading…
↗
4
9169030010
Pin, spring (663)
Loading…
↗
5
6E54834400
Cable end, remote control
Loading…
↗
6
9046818008
Clip 620436610000
Loading…
↗
7
69J4411700
Bracket
Loading…
↗
8
9709506035
Bolt(j52)
Loading…
↗
9
9299506600
Washer, plain (646)
Loading…
↗
10
69J4417601
Bracket
Loading…
↗
11
9370006M01
Nipple, grease(61a)
Loading…
↗
12
9038612069
Bush(666)
Loading…
↗
13
9010908019
Bolt
Loading…
↗
14
9050820020
Spring, torsion
Loading…
↗
15
60V8259F00
Switch assembly
Loading…
↗
16
69J8259F00
Switch assembly
Loading…
↗
17
61A8258801
Plate
Loading…
↗
18
9798504116
Screw, with washer(61b)
Loading…
↗
19
9046511M10
Clamp
Loading…
↗
20
9046506M86
Clamp
Loading…
↗
21
9046409010
Clamp
Loading…
↗
22
6P24412100
Lever, shift rod
Loading…
↗
23
69J4412200
Bushing, shift rod lever
Loading…
↗
24
9020208M20
Washer, plate (6e5)
Loading…
↗
26
9038606M12
Bushing (688)
Loading…
↗
27
69J4411800
Bracket
Loading…
↗
28
6484271500
Bushing 2
Loading…
↗
29
9350104M02
Ball (697)
Loading…
↗
30
9050112082
Spring 6484411600
Loading…
↗
31
9757506535
Bolt, hexagon w/w deep recess
Loading…
↗
33
69J4412001
X(25.3")
Handle gear shift assembly
Loading…
↗
34
9321009165
O-ring
Loading…
↗
35
9038690M90
Bush(61a)
Loading…
↗
36
9020109M02
Washer, plate(61a)
Loading…
↗
37
9149020015
Pin, cotter (648)
Loading…
↗
38
6P28A41001
Sensor unit
Loading…
↗
39
6P24413900
Collar
Loading…
↗
40
6CB4127300
Grommet
Loading…
↗
41
9011906126
Bolt, with washer
Loading…
↗
