F25AMH (2009)
CONTROL

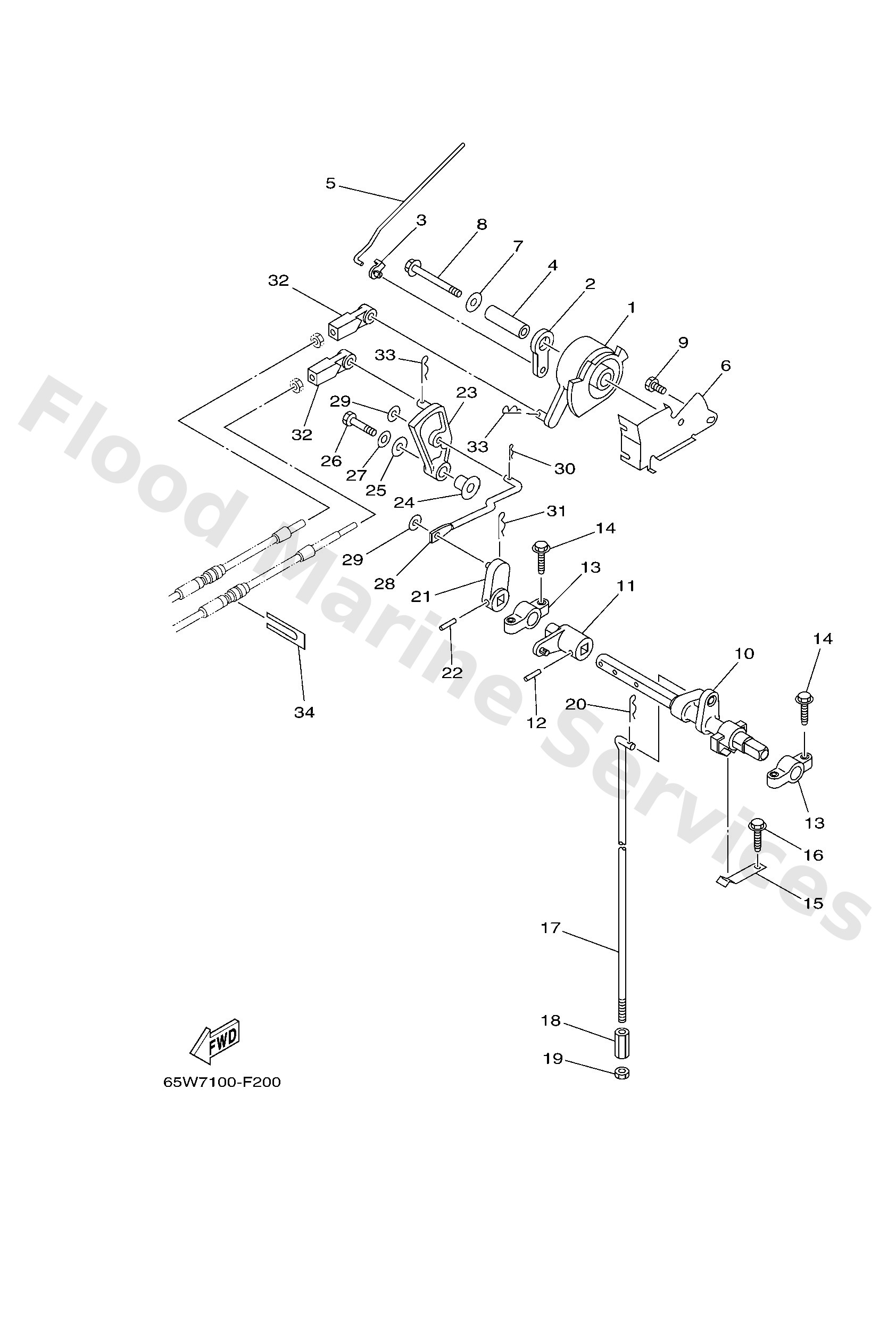

Diagram: CONTROL
Parts List
Reference
Description
Price
1
65W4163800
Pulley
Loading…
↗
2
65W4128300
Lever, free accel.
Loading…
↗
3
6614126202
Joint, choke lever
Loading…
↗
4
9038706064
-
Loading…
↗
5
65W4121100
Link, Accel.
Loading…
↗
6
65W1449701
Stay, Throttle Wire
Loading…
↗
7
9020106M31
Washer (6a0)
Loading…
↗
8
9759506555
Bolt, hexagon w/w deep recess
Loading…
↗
9
9709506010
Bolt
Loading…
↗
10
65W4412100
Lever, shift rod
Loading…
↗
11
65W4412200
-
Loading…
↗
12
9025403M05
Pin, spring
Loading…
↗
13
6F54166200
Bracket 2
Loading…
↗
14
9010906M81
Bolt
Loading…
↗
15
65W4411600
Spring
Loading…
↗
16
9010906M86
Bolt
Loading…
↗
17
65W4414310
L(21.6")
Rod, shift
Loading…
↗
17
65W4414300
S(16.6")
Rod, shift
Loading…
↗
18
9017006015
Connector, shift rod
Loading…
↗
19
9538006700
Nut
Loading…
↗
20
9046818008
Clip 620436610000
Loading…
↗
21
65W4414200
Joint
Loading…
↗
23
65W4412500
Lever, shift rod
Loading…
↗
24
9038706M29
Coller (6a0)
Loading…
↗
26
9709506025
Bolt
Loading…
↗
27
9299506600
Washer, plain (646)
Loading…
↗
28
65W4419200
Joint, rod 1
Loading…
↗
29
9020105M06
Washer, plate(61u)
Loading…
↗
30
9046810005
Pin, hair 6264123500
Loading…
↗
32
6634834400
Cable end, remote control
Loading…
↗
34
6H34853800
Clamp, cable
Loading…
↗
