Yamaha Outboard Parts - CONTROL - F300NCA2 FOR LOWER GRAY (2020) | Flood Marine

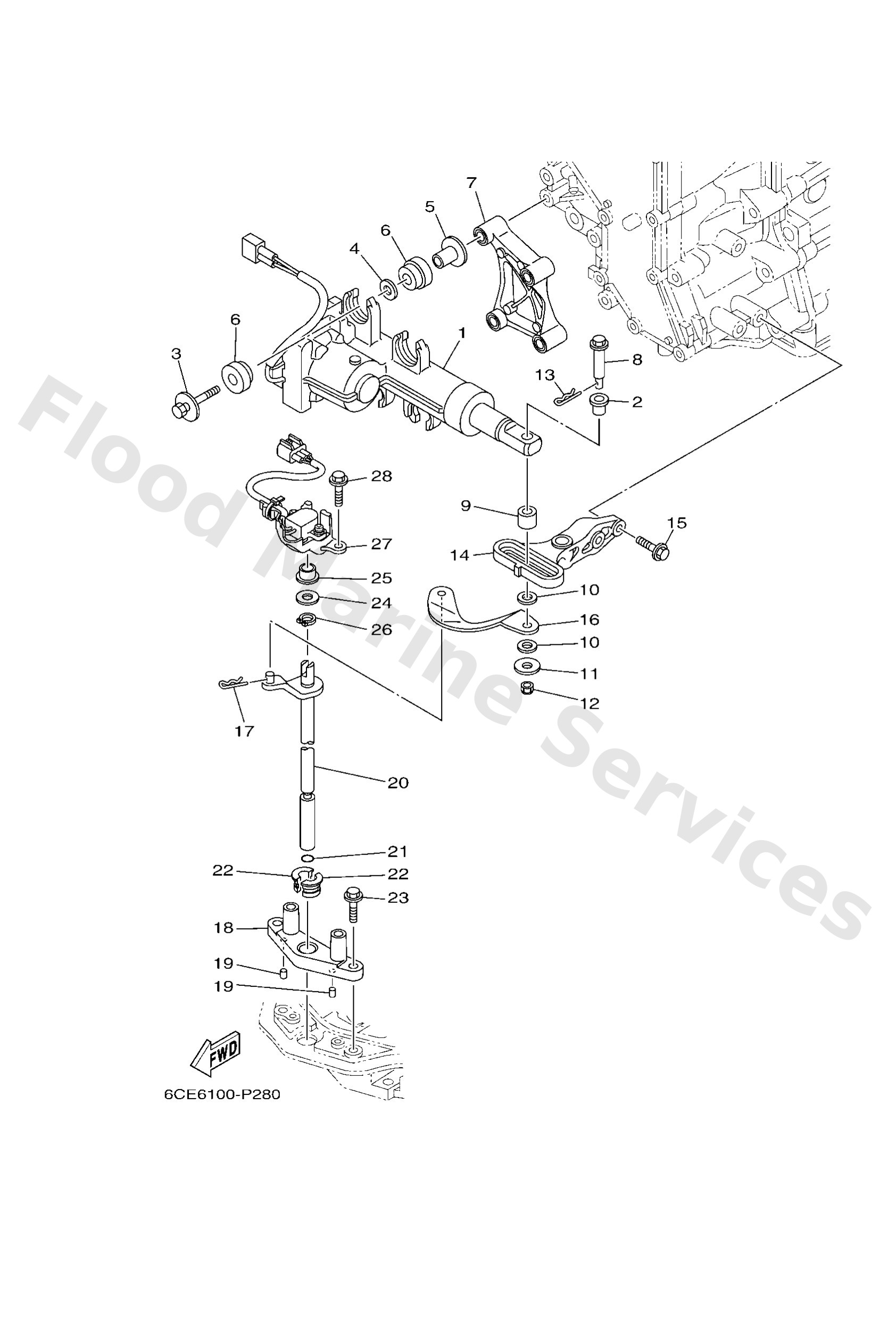

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6ML4820A00
Actuator unit
Loading…

↗
2
9038608008
Bush
Loading…

↗
3
9011908168
Bolt, with washer
Loading…

↗
4
9020112064
Washer, plate
Loading…

↗
5
9038708104
Collar
Loading…

↗
6
6CE8556400
Grommet
Loading…

↗
7
6CE4414220
Joint
Loading…

↗
8
6CE4219510
Pin, joint 1
Loading…

↗
9
6CE4412220
Bushing, shift rod lever
Loading…

↗
10
9020208M41
Washer, plate(6t4)
Loading…

↗
11
9020106068
Washer,plate (6k8)
Loading…

↗
12
9018506M07
Nut, self-locking(6e5)
Loading…

↗
13
9046818008
Clip 620436610000
Loading…

↗
14
6CE4411710
Bracket
Loading…

↗
15
97E7506525
Bolt, hexagon w/w deep recess
Loading…

↗
16
6CE4412110
Lever, shift rod
Loading…

↗
18
6CE44118A0
Bracket
Loading…

↗
19
9360407M13
Pin, dowel(6l5)
Loading…

↗
20
6CE4412021
Handle gear shift assembly
Loading…

↗
21
9321009165
O-ring
Loading…

↗
22
9038611001
Bush
Loading…

↗
23
95D7506025
Bolt, flange deep recess
Loading…

↗
24
9020111008
Washer, plate
Loading…

↗
25
9038610001
Bush
Loading…

↗
26
9341010082
Circlip
Loading…

↗
27
6CE6830300
Sensor assembly
Loading…

↗
