F300XCB2 (2023)
CONTROL

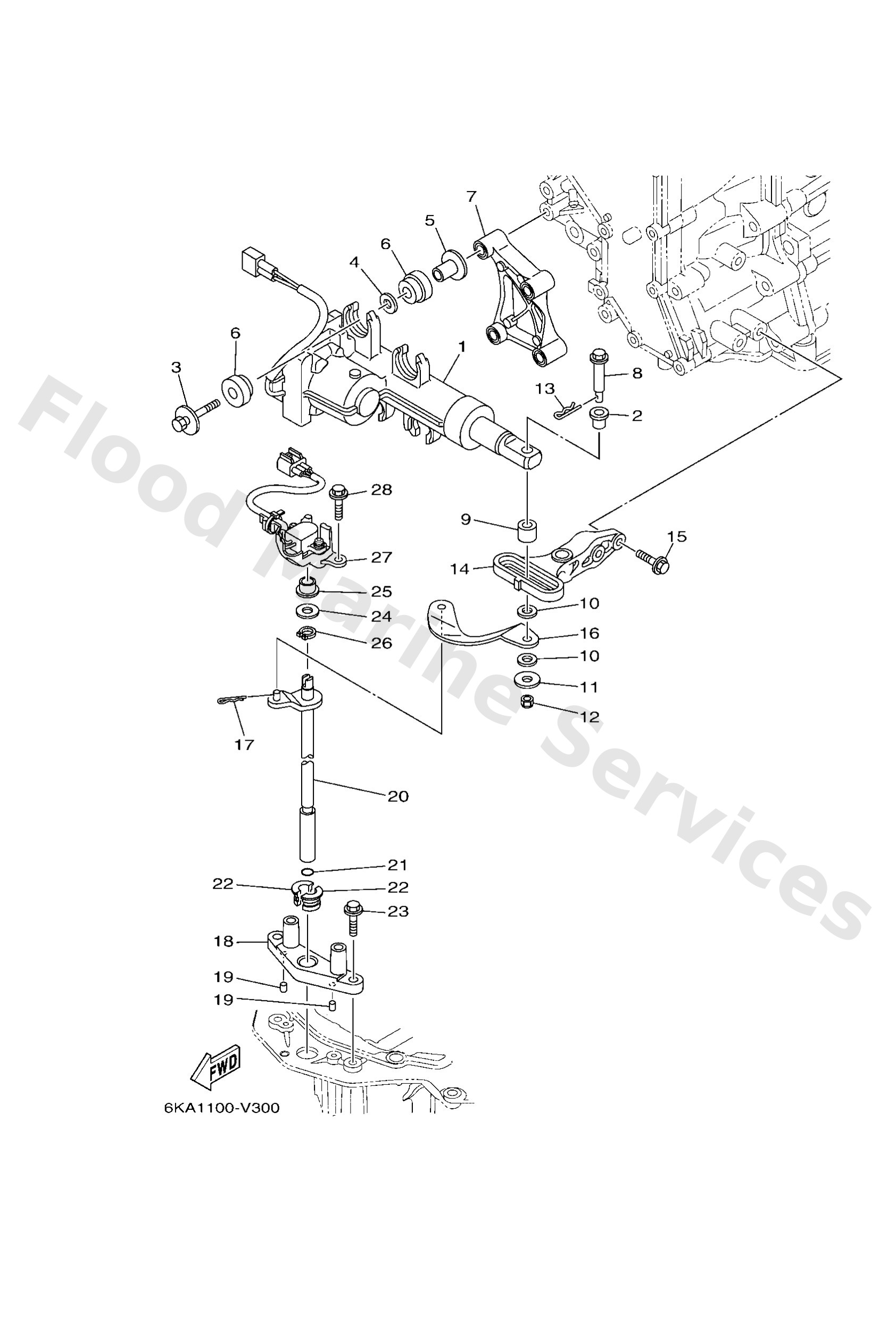

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6ML4820A00
Actuator unit
Loading…
↗
2
9038608008
Bush
Loading…
↗
3
9011908168
Bolt, with washer
Loading…
↗
4
9020112064
Washer, plate
Loading…
↗
5
9038708104
Collar
Loading…
↗
6
6CE8556400
Grommet
Loading…
↗
7
6CE4414220
Joint
Loading…
↗
8
6CE4219510
Pin, joint 1
Loading…
↗
9
6CE4412220
Bushing, shift rod lever
Loading…
↗
10
9020208M41
Washer, plate(6t4)
Loading…
↗
11
9020106068
Washer,plate (6k8)
Loading…
↗
12
9018506M07
Nut, self-locking(6e5)
Loading…
↗
13
9046818008
Clip 620436610000
Loading…
↗
14
6CE4411710
Bracket
Loading…
↗
15
97E7506525
Bolt, hexagon w/w deep recess
Loading…
↗
16
6CE4412110
Lever, shift rod
Loading…
↗
18
6CE44118A0
Bracket
Loading…
↗
19
9360407M13
Pin, dowel(6l5)
Loading…
↗
20
6JD4412001
Handle gear shift assembly
Loading…
↗
21
9321009165
O-ring
Loading…
↗
22
9038611001
Bush
Loading…
↗
23
95D7506025
Bolt, flange deep recess
Loading…
↗
24
9020111008
Washer, plate
Loading…
↗
25
9038610001
Bush
Loading…
↗
26
9341010082
Circlip
Loading…
↗
27
6CE6830300
Sensor assembly
Loading…
↗
