F40BET (2004)
CONTROL

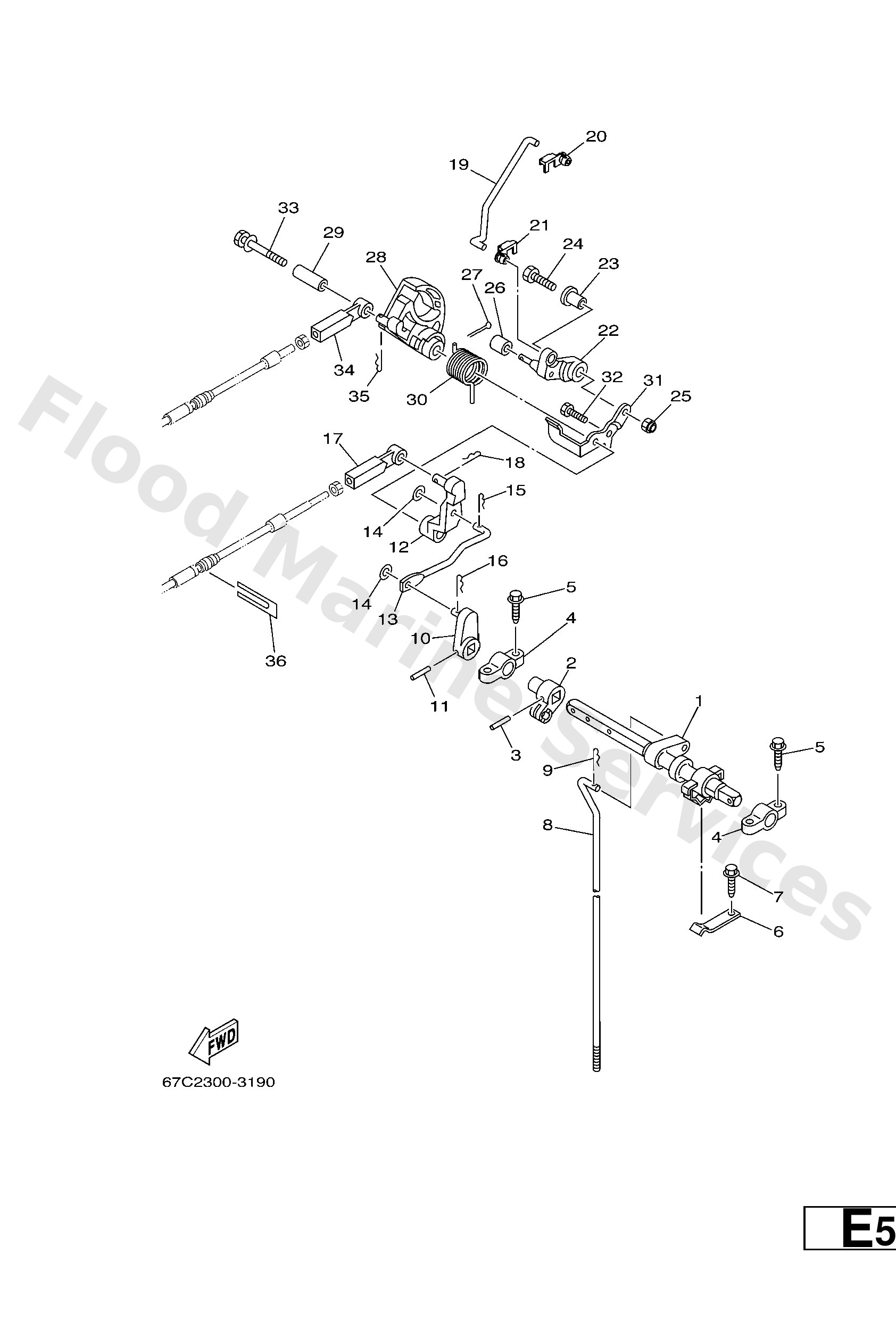

Diagram: CONTROL
Parts List
Reference
Description
Price
1
67C4412100
Lever, Shift Rod
Loading…
↗
2
66M4412200
Bushing, shift rod lever
Loading…
↗
3
9025403M05
Pin, spring
Loading…
↗
4
6F54166200
Bracket 2
Loading…
↗
5
9010906M81
Bolt
Loading…
↗
6
67C4411600
Spring
Loading…
↗
7
9010906M86
Bolt
Loading…
↗
8
67C4414300
S
Rod, Shift
Loading…
↗
8
67C4414310
L
Rod, shift
Loading…
↗
9
9046818008
Clip 620436610000
Loading…
↗
10
65W4414200
Joint
Loading…
↗
12
67C4412500
Lever, shift rod
Loading…
↗
13
67C4419200
Link, shift rod
Loading…
↗
14
9020105M06
Washer, plate(61u)
Loading…
↗
15
9046810005
Pin, hair 6264123500
Loading…
↗
17
67C4834400
Cable end, remote control
Loading…
↗
19
67C4124100
Rod, link
Loading…
↗
20
6E94123700
Joint, link
Loading…
↗
21
6F54123700
Joint, link
Loading…
↗
22
67C4121200
Arm, accel.
Loading…
↗
23
9038706M29
Coller (6a0)
Loading…
↗
24
9709506025
Bolt
Loading…
↗
25
9578006300
Nut, nylon (6g1)
Loading…
↗
26
62Y4217100
Bushing
Loading…
↗
27
9149012010
Pin, cotter (6g8)
Loading…
↗
28
67C4121320
Cam, accel.
Loading…
↗
29
9038706M88
Collar
Loading…
↗
30
9050820M44
Spring, torsion
Loading…
↗
31
67C4411700
Bracket
Loading…
↗
32
9709506014
Bolt(gj3)
Loading…
↗
33
9011906M91
Bolt, with washer
Loading…
↗
36
62Y4853800
Clamp, cable 1
Loading…
↗
