F40CET (2002)
CONTROL

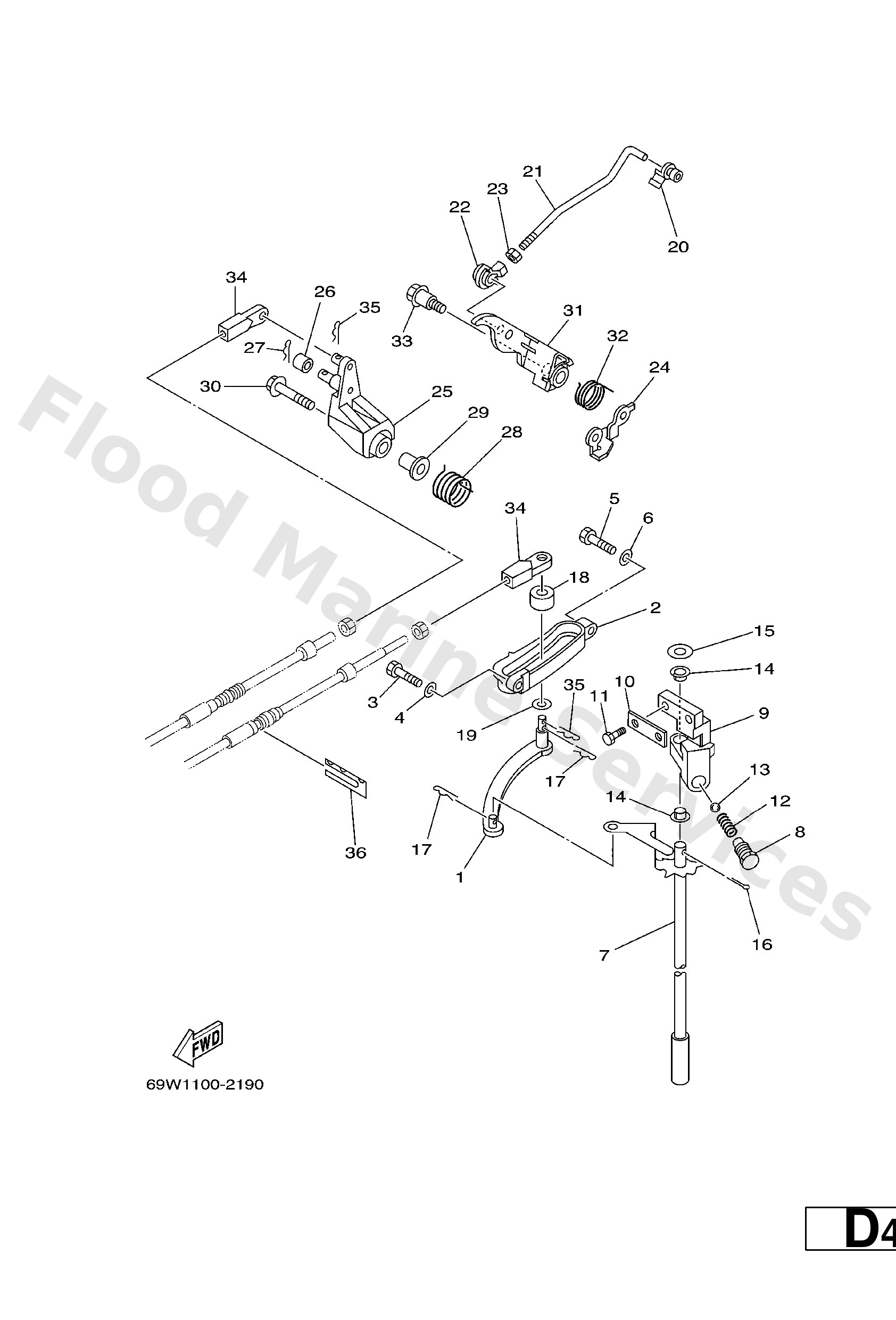

Diagram: CONTROL
Parts List
Reference
Description
Price
1
69W−44121−00
Lever, shift rod
Loading…
↗
2
62Y−44117−01−4D
Bracket
Loading…
↗
3
97095−06020
Bolt(7u8)
Loading…
↗
4
92995−06600
Washer, plain (646)
Loading…
↗
5
97095−06025
Bolt
Loading…
↗
7
62Y−44120−01
Handle gear shift assembly
Loading…
↗
8
62Y−42715−01
Bushing
Loading…
↗
9
62Y−44118−00
Bracket
Loading…
↗
10
62Y−44112−00
Stay, handle gear shift
Loading…
↗
12
90501−12082
Spring 6484411600
Loading…
↗
13
93501−04M02
Ball (697)
Loading…
↗
14
90386−90M90
Bush(61a)
Loading…
↗
15
90201−10M20
Washer, plate (663)
Loading…
↗
16
91490−20015
Pin, cotter (648)
Loading…
↗
17
90468−18008
Clip 620436610000
Loading…
↗
18
688−44122−00
Bushing, shift rod lever
Loading…
↗
19
90202−07M07
Washer, plate (688)
Loading…
↗
20
6F5−41237−00
Joint, link
Loading…
↗
21
60K−41241−00
Rod, Link
Loading…
↗
21
69W−41241−00
Rod, link
Loading…
↗
22
662−41237−01
Joint, link
Loading…
↗
23
95380−05700
Nut (656)
Loading…
↗
24
69W−42159−00
Stay
Loading…
↗
25
62Y−42154−00
Lever, throttle control
Loading…
↗
26
69W−42171−00
Bushing
Loading…
↗
27
91490−16010
Pin, cotter
Loading…
↗
28
62Y−44135−00
Spring
Loading…
↗
29
90387−06M45
Collar(62y)
Loading…
↗
30
95895−06035
Bolt, flange(4nx)
Loading…
↗
31
62Y−42335−20
Lever, accel. control
Loading…
↗
31
60K−42335−00
Lever, Accel. Control
Loading…
↗
32
62Y−44116−01
Spring
Loading…
↗
33
90109−06M30
Bolt(62y)
Loading…
↗
34
69W−48344−00
Cable end, remote control
Loading…
↗
36
62Y−48538−00
Clamp, cable 1
Loading…
↗
