F40FED (2011)
CONTROL

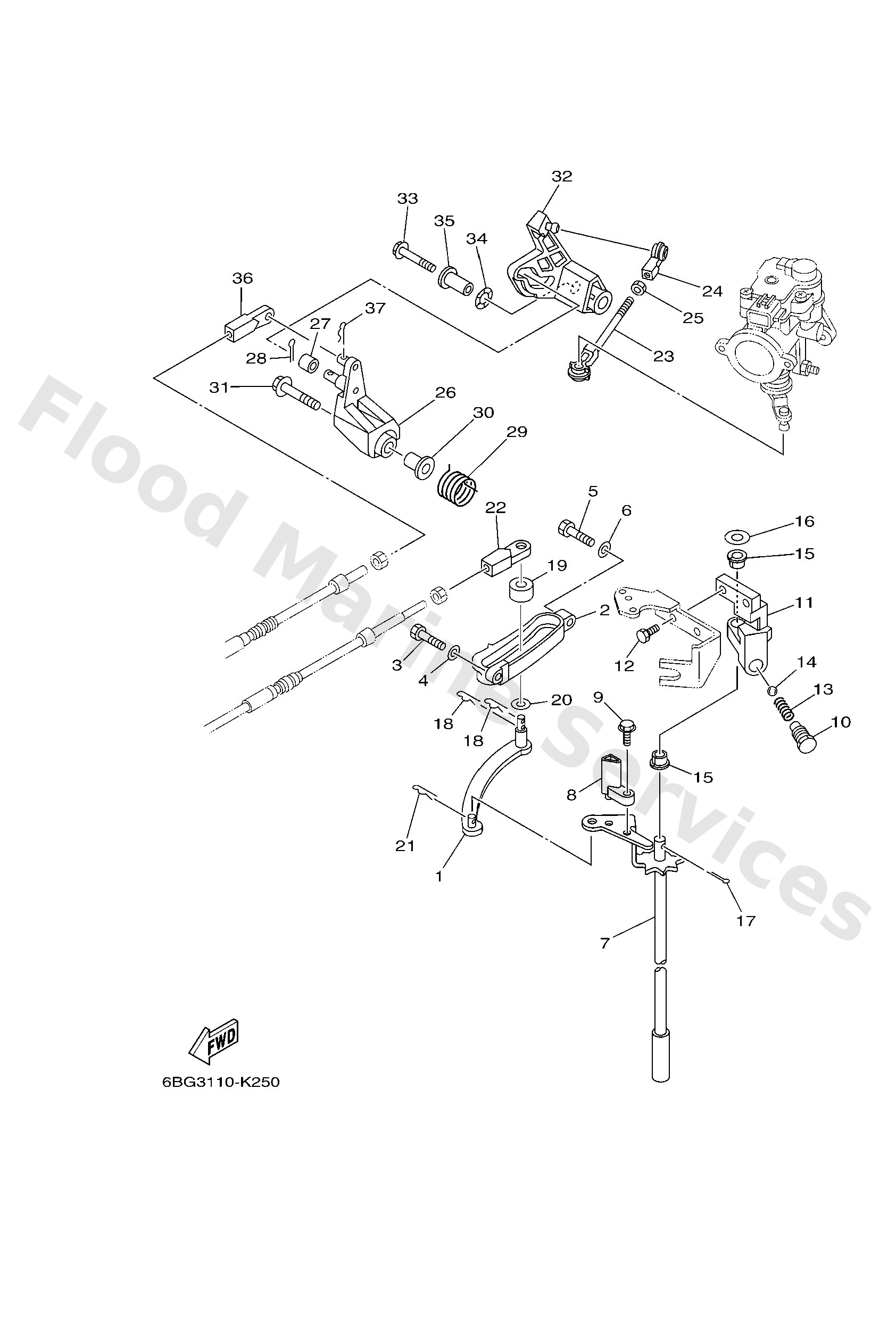

Diagram: CONTROL
Parts List
Reference
Description
Price
1
69W4412100
Lever, shift rod
Loading…
↗
2
62Y441170194
Bracket
Loading…
↗
3
9709506020
Bolt(7u8)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9709506025
Bolt
Loading…
↗
7
6BG4412000
S(16.1")
Handle gear shift assembly
Loading…
↗
7
6C54412001
L(21.0")
Handle gear shift assembly
Loading…
↗
8
6C54412200
Bushing, shift rod lever
Loading…
↗
9
9759505514
Bolt, w/ plain
Loading…
↗
10
62Y4271501
Bushing
Loading…
↗
11
62Y441180094
Bracket
Loading…
↗
12
9010106054
Bolt(7u8)
Loading…
↗
13
9050112082
Spring 6484411600
Loading…
↗
14
9350104M02
Ball (697)
Loading…
↗
15
9038690M90
Bush(61a)
Loading…
↗
16
9020110M20
Washer, plate (663)
Loading…
↗
17
9149020015
Pin, cotter (648)
Loading…
↗
18
9046818008
Clip 620436610000
Loading…
↗
19
6884412200
Bushing, shift rod lever
Loading…
↗
20
9020207M07
Washer, plate (688)
Loading…
↗
22
69W4834400
Cable end, remote control
Loading…
↗
23
6J84123700
Joint, link
Loading…
↗
24
6824123700
Joint, link 2
Loading…
↗
25
9538005700
Nut (656)
Loading…
↗
26
62Y4215400
Lever, throttle control
Loading…
↗
27
6C54217100
Bushing
Loading…
↗
28
9149016010
Pin, cotter
Loading…
↗
29
62Y4413500
Spring
Loading…
↗
30
9038706M45
Collar(62y)
Loading…
↗
31
9011906106
Bolt, with washer
Loading…
↗
32
6BG4233500
Lever, accel. control
Loading…
↗
33
9589506045
Bolt, flange deep recess
Loading…
↗
34
9020610M04
Washer, wave (676)
Loading…
↗
35
9038706225
Collar
Loading…
↗
