F40FED (2022)
CONTROL

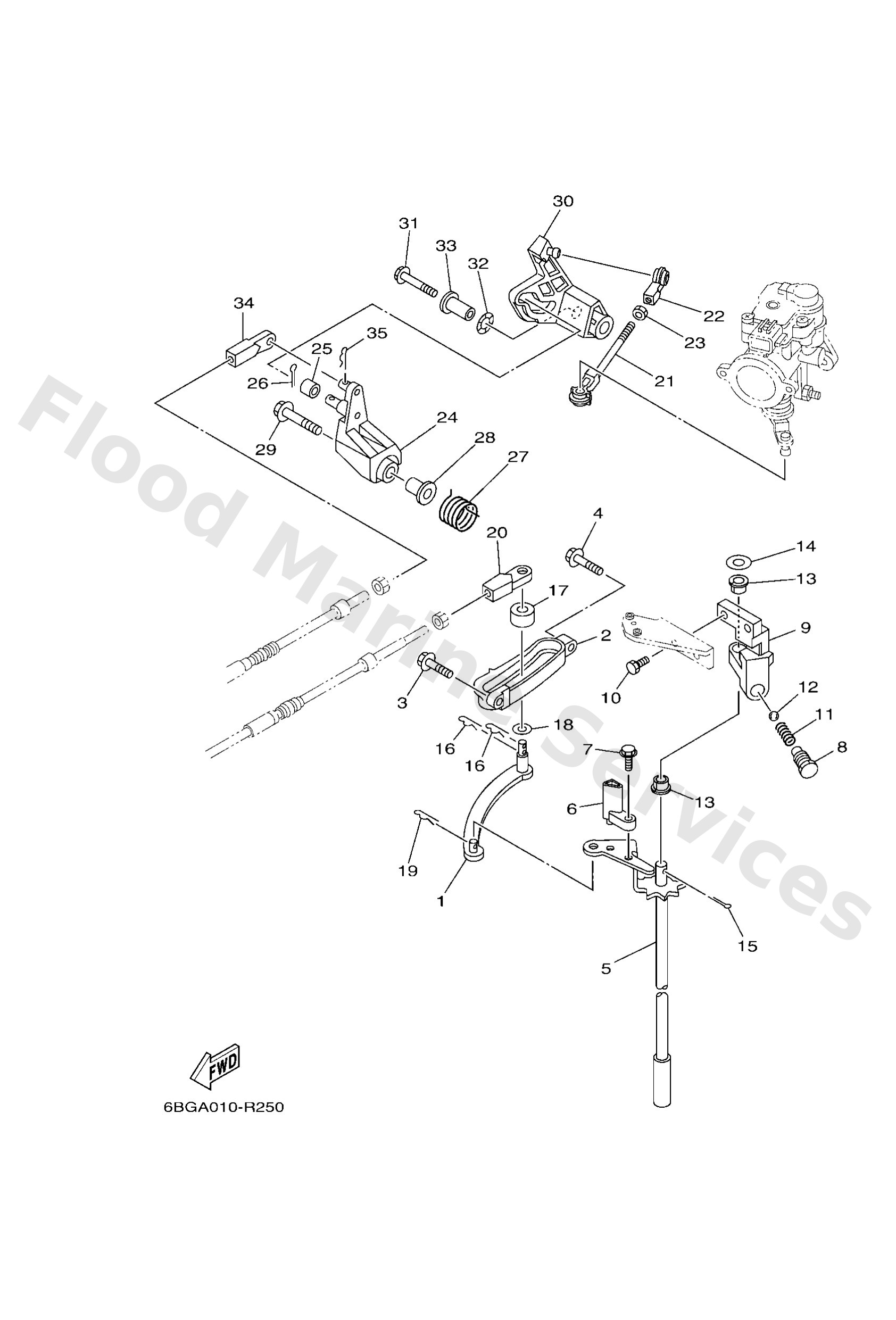

Diagram: CONTROL
Parts List
Reference
Description
Price
1
69W4412100
Lever, shift rod
Loading…
↗
2
62Y4411701
Bracket
Loading…
↗
3
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
4
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
5
6BG4412002
S(16.3")
Handle gear shift assembly
Loading…
↗
5
6C54412003
L(21.1")
Handle gear shift assembly
Loading…
↗
6
6C54412200
Bushing, shift rod lever
Loading…
↗
7
9759505514
Bolt, w/ plain
Loading…
↗
8
62Y4271501
Bushing
Loading…
↗
9
62Y441180094
Bracket
Loading…
↗
10
9010106063
Bolt
Loading…
↗
11
9050112082
Spring 6484411600
Loading…
↗
12
9350104M02
Ball (697)
Loading…
↗
13
9038690M90
Bush(61a)
Loading…
↗
14
9020110M20
Washer, plate (663)
Loading…
↗
15
9149020015
Pin, cotter (648)
Loading…
↗
16
9046818008
Clip 620436610000
Loading…
↗
17
6884412200
Bushing, shift rod lever
Loading…
↗
18
9020207M07
Washer, plate (688)
Loading…
↗
20
69W4834400
Cable end, remote control
Loading…
↗
21
6J84123700
Joint, link
Loading…
↗
22
6824123700
Joint, link 2
Loading…
↗
23
9538005700
Nut (656)
Loading…
↗
24
62Y42154A0
Lever, throttle control
Loading…
↗
25
6C54217100
Bushing
Loading…
↗
26
9149016010
Pin, cotter
Loading…
↗
27
62Y4413500
Spring
Loading…
↗
28
9038706M45
Collar(62y)
Loading…
↗
29
9011906297
Bolt, with washer
Loading…
↗
30
6BG42335A0
Lever, accel. control
Loading…
↗
31
95D9506045
Bolt, flange deep recess
Loading…
↗
32
9020610M04
Washer, wave (676)
Loading…
↗
33
9038706279
Collar
