Yamaha Outboard Parts - CONTROL - F4BMH (2012) | Flood Marine

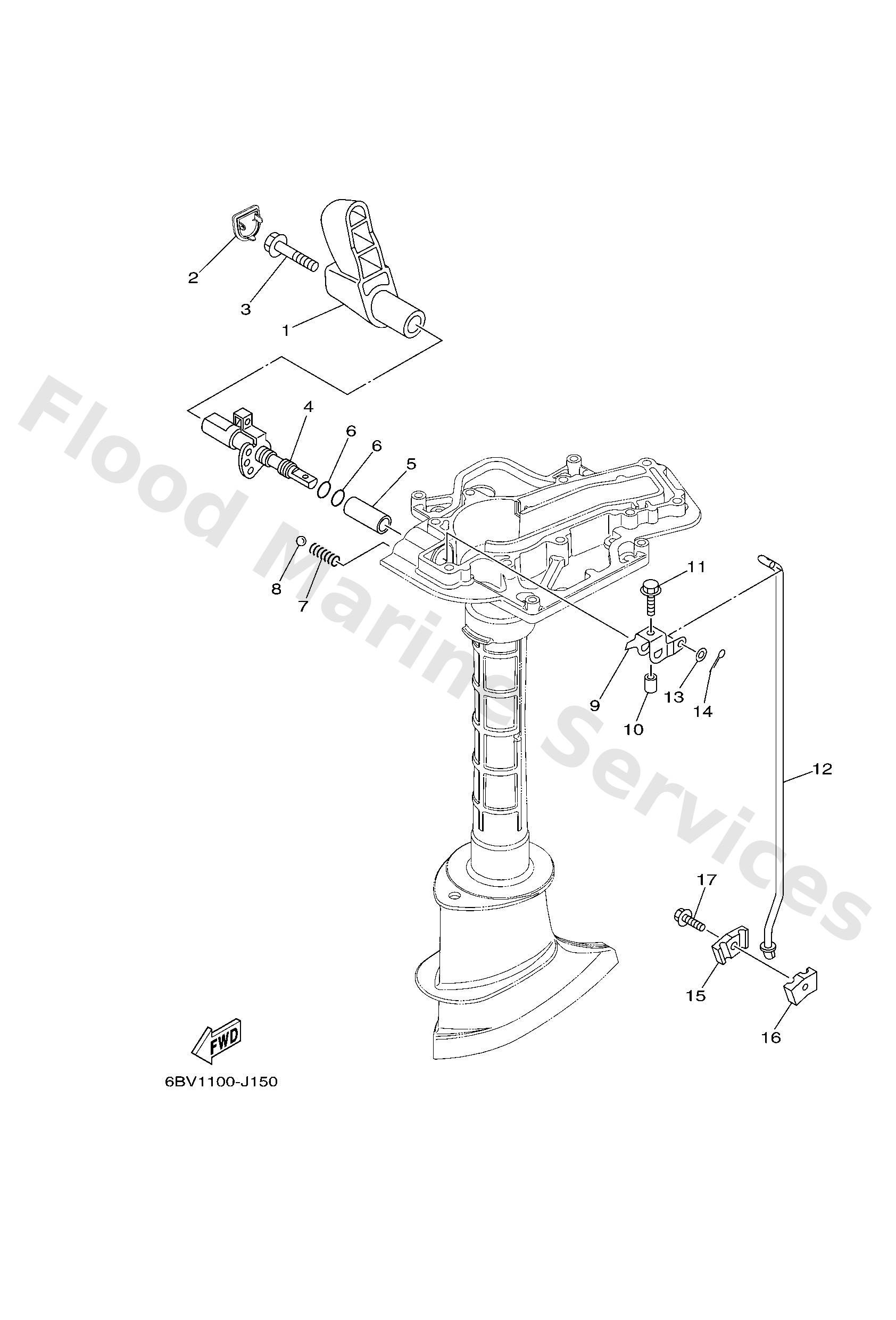

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6BXG411100
Handle, gear shift
Loading…

↗
2
6BXG367900
Cover
Loading…

↗
3
9010508046
Bolt, flange
Loading…

↗
4
6BXG411900CA
Shaft, change
Loading…

↗
5
6BXG412200
Bushing, shift rod lever
Loading…

↗
6
9321009350
O-ring
Loading…

↗
7
9050112802
Spring,compression
Loading…

↗
8
9350516024
Ball
Loading…

↗
9
6BXG412100
Lever, shift rod
Loading…

↗
10
9038706504
Collar(650)
Loading…

↗
11
9011905M04
Bolt, with washer
Loading…

↗
12
6BX4414300
Rod, shift
Loading…

↗
13
9299005600
Washer, plain (646)
Loading…

↗
14
9149016010
Pin, cotter
Loading…

↗
15
68DG414500
Connector, shift rod 1
Loading…

↗
16
68DG414600
Connector, shift rod 2
Loading…

↗
17
9011906256
Bolt, with washer
Loading…

↗
