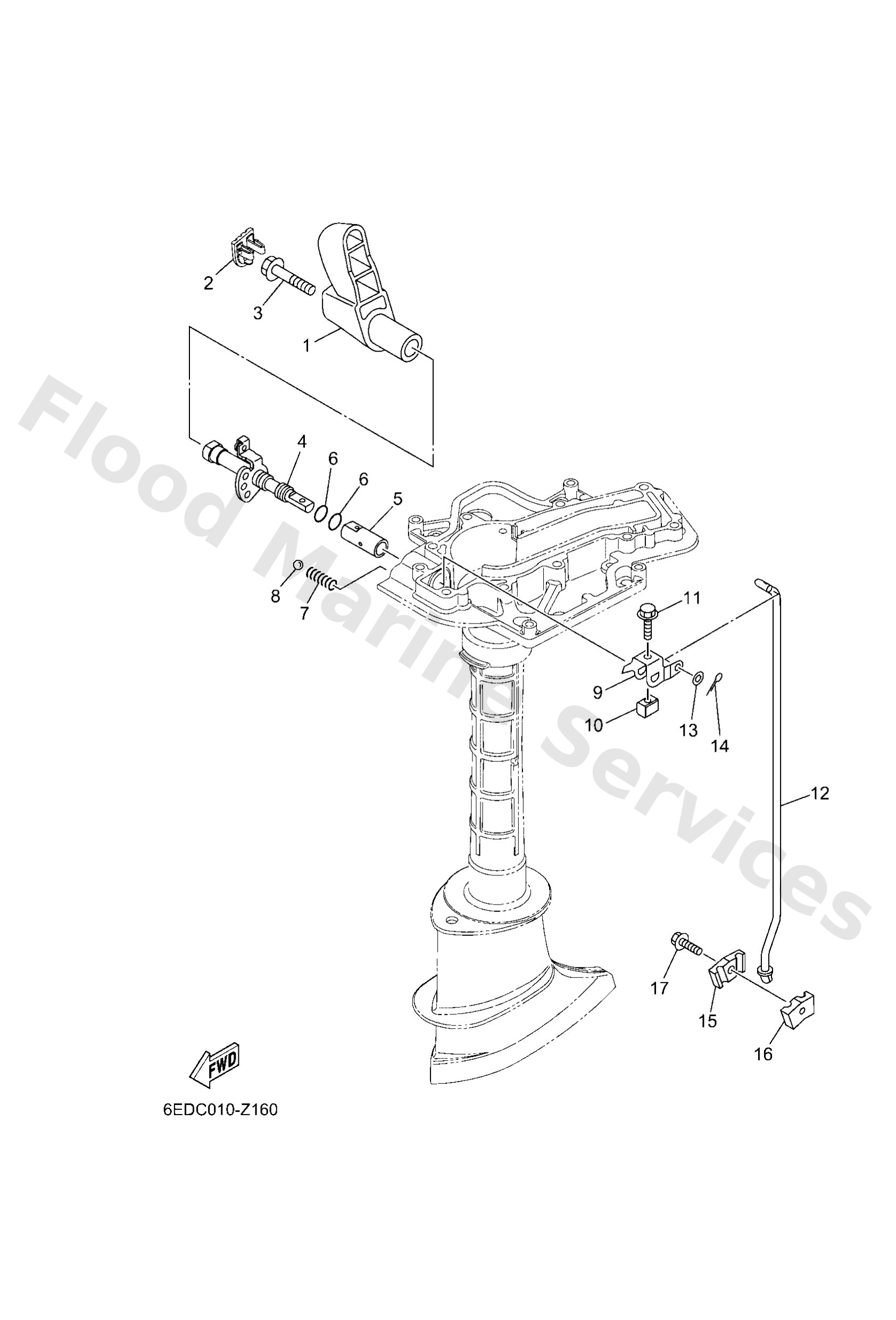

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6EE4411100
Handle, gear shift
Loading…

↗
2
6EE4367900
Cover
Loading…

↗
3
9010508046
Bolt, flange
Loading…

↗
4
6EE44119008D
Shaft, Change
Loading…

↗
5
6EE4412200
Bushing, shift rod lever
Loading…

↗
6
9321009350
O-ring
Loading…

↗
7
9050112274
Spring 6554411600
Loading…

↗
8
9350516024
Ball
Loading…

↗
9
6EE4412100
Lever, shift rod
Loading…

↗
10
6BX1817501
Spacer
Loading…

↗
11
9011905M04
Bolt, with washer
Loading…

↗
12
6BX4414300
Rod, shift
Loading…

↗
13
9299005600
Washer, plain (646)
Loading…

↗
14
9149016010
Pin, cotter
Loading…

↗
15
6EE4414500
Connector, shift rod 1
Loading…

↗
16
6EE4414600
Connector, shift rod 2
Loading…

↗
17
9011906256
Bolt, with washer
Loading…

↗
