F50FED (2005)
CONTROL

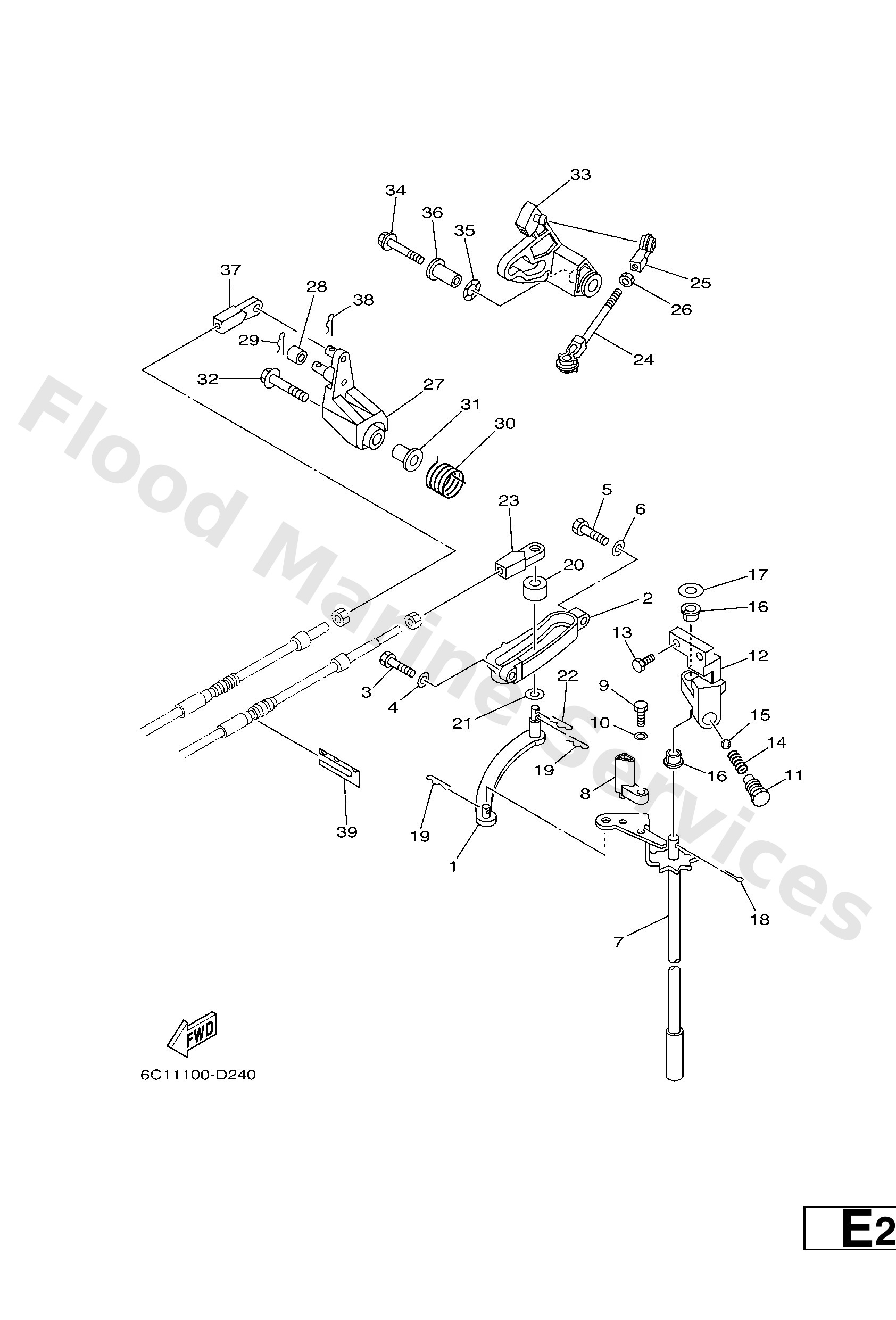

Diagram: CONTROL
Parts List
Reference
Description
Price
1
69W4412100
Lever, shift rod
Loading…
↗
2
62Y44117014D
Bracket
Loading…
↗
3
9709506020
Bolt(7u8)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9709506025
Bolt
Loading…
↗
7
6C54412000
L
Handle gear shift assembly
Loading…
↗
8
6C54412200
Bushing, shift rod lever
Loading…
↗
9
9709505014
Bolt, w/ plain
Loading…
↗
10
9299505600
Washer, plain (646)
Loading…
↗
11
62Y4271501
Bushing
Loading…
↗
12
62Y4411800
Bracket
Loading…
↗
14
9050112082
Spring 6484411600
Loading…
↗
15
9350104M02
Ball (697)
Loading…
↗
16
9038690M90
Bush(61a)
Loading…
↗
17
9020110M20
Washer, plate (663)
Loading…
↗
18
9149020015
Pin, cotter (648)
Loading…
↗
19
9046818008
Clip 620436610000
Loading…
↗
20
6884412200
Bushing, shift rod lever
Loading…
↗
21
9020207M07
Washer, plate (688)
Loading…
↗
23
69W4834400
Cable end, remote control
Loading…
↗
24
6884121101
Link, accel
Loading…
↗
25
6H44123700
Joint, link
Loading…
↗
26
9538005700
Nut (656)
Loading…
↗
27
62Y4215400
Lever, throttle control
Loading…
↗
28
6C54217100
Bushing
Loading…
↗
29
9149016010
Pin, cotter
Loading…
↗
30
62Y4413500
Spring
Loading…
↗
31
9038706M45
Collar(62y)
Loading…
↗
32
9011906106
Bolt, with washer
Loading…
↗
33
6C54233500
Lever, accel. control
Loading…
↗
34
9589506035
Bolt, flange(4nx)
Loading…
↗
35
9020610M04
Washer, wave (676)
Loading…
↗
36
9038706M82
Collar
Loading…
↗
39
62Y4853800
Clamp, cable 1
Loading…
↗
