Yamaha Outboard Parts - CONTROL - F6BMH (2003) | Flood Marine

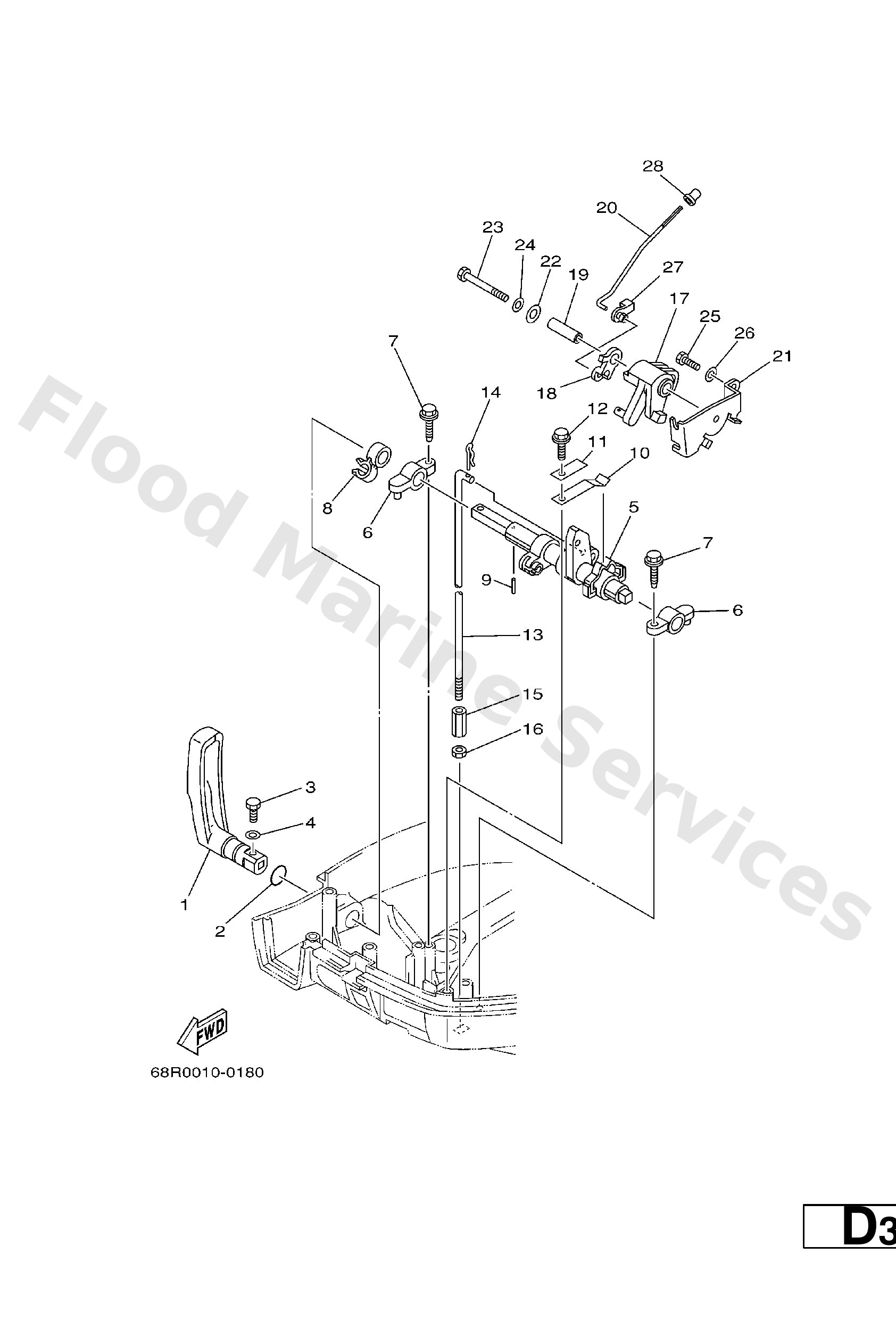

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
68T−44111−00
Handle, gear shift
Loading…

↗
2
93210−12327
O-ring(3ld)
Loading…

↗
3
97095−05016
Bolt(6a1)
Loading…

↗
4
92995−05600
Washer, plain (646)
Loading…

↗
5
68T−44121−01
Lever, shift rod
Loading…

↗
6
6G1−41662−01−94
Bracket
Loading…

↗
7
90109−06M81
Bolt
Loading…

↗
8
90464−10M60
Clamp
Loading…

↗
9
91690−30014
Pin, spring (647)
Loading…

↗
10
65W−44116−00
Spring
Loading…

↗
11
66R−44114−00
Stopper
Loading…

↗
12
90109−06M86
Bolt
Loading…

↗
13
68T−44143−00 S
Rod, shift 1
Loading…

↗
13
68T−44143−10 L
Rod, shift 1
Loading…

↗
14
90468−18001
Clip
Loading…

↗
15
90170−06015
Connector, shift rod
Loading…

↗
16
95380−06700
Nut
Loading…

↗
17
68T−41638−00
Pulley
Loading…

↗
18
68T−41283−00 F6A,F8C
Lever, free accel.
Loading…

↗
18
68R−41283−00 F6B
Lever, Free Accel.
Loading…

↗
19
90387−06M59
Collar (6h3)
Loading…

↗
20
68T−41211−00 F6A,F8C
Link, accel.
Loading…

↗
20
69F−41211−00 F6B
Link, Accel.
Loading…

↗
21
68T−14497−00
Stay, throttle wire
Loading…

↗
22
90201−06M62
Washer, plate (6e5)
Loading…

↗
23
97095−06045
Bolt, hexagon
Loading…

↗
24
92995−06600
Washer, plain (646)
Loading…

↗
25
97095−06012
Bolt(gh1)
Loading…

↗
27
661−41262−02
Joint, choke lever
Loading…

↗
28
647−14395−60
Cap,over flow pipe
Loading…

↗
