F8CMH (2012)
CONTROL

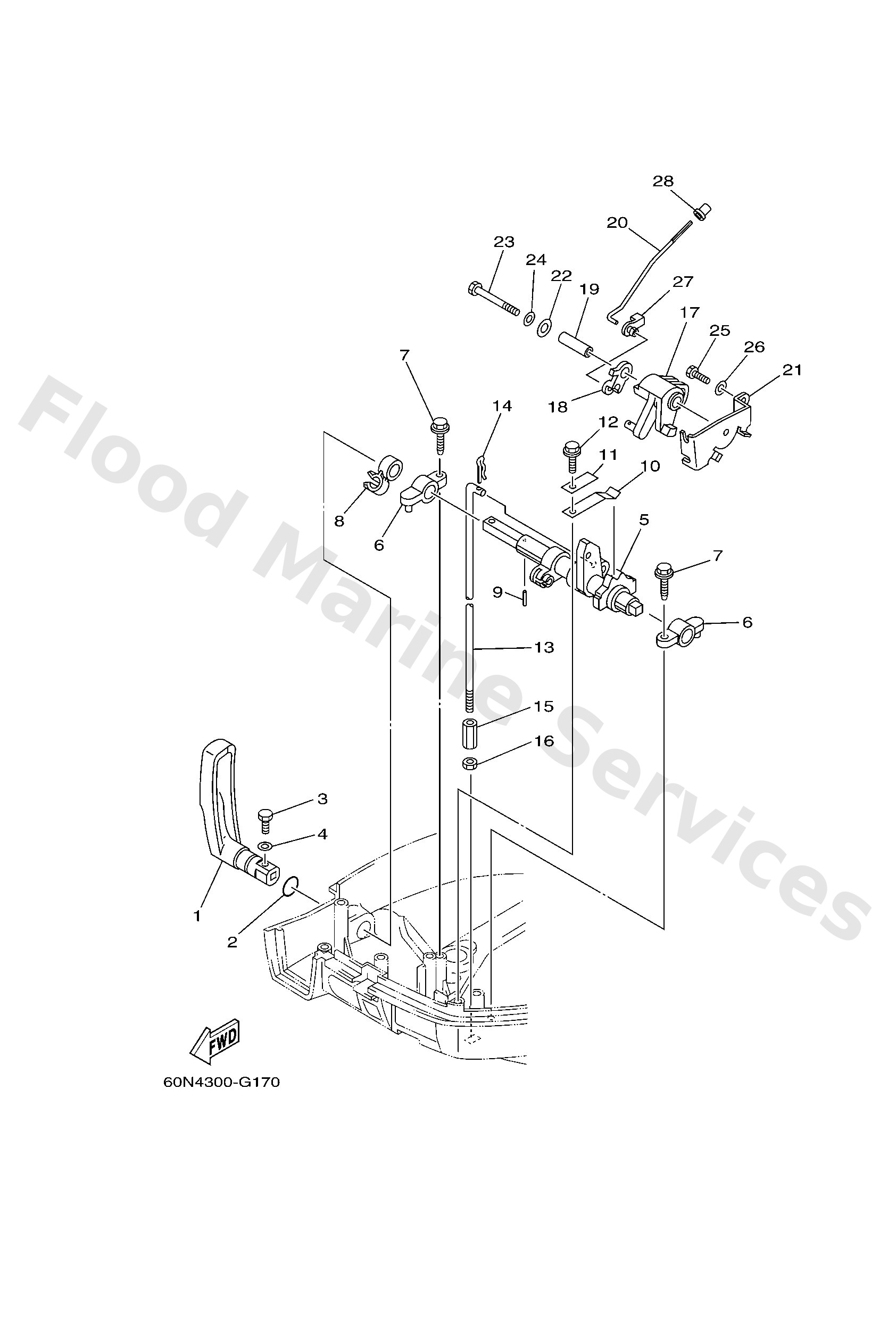

Diagram: CONTROL
Parts List
Reference
Description
Price
1
60RG411100
Handle, gear shift
Loading…
↗
2
9321012327
O-ring(3ld)
Loading…
↗
3
9709505016
Bolt(6a1)
Loading…
↗
4
9299505600
Washer, plain (646)
Loading…
↗
5
68T4412102
Lever, shift rod
Loading…
↗
6
6G1416620194
Bracket
Loading…
↗
7
9010906M81
Bolt
Loading…
↗
8
9046410M60
Clamp
Loading…
↗
9
9169030014
Pin, spring (647)
Loading…
↗
10
65W4411600
Spring
Loading…
↗
11
66R4411400
Stopper
Loading…
↗
12
9010906M86
Bolt
Loading…
↗
13
60RG414310
L(22.1")
Rod, shift 1
Loading…
↗
13
60RG414300
S(17.1")
Rod, shift 1
Loading…
↗
14
9046818001
Clip
Loading…
↗
15
9017006015
Connector, shift rod
Loading…
↗
16
9538006700
Nut
Loading…
↗
17
68T4163800
Pulley
Loading…
↗
18
68T4128300
Lever, free accel.
Loading…
↗
19
9038706M59
Collar (6h3)
Loading…
↗
20
68T4121100
Link, accel.
Loading…
↗
21
68T1449700
Stay, throttle wire
Loading…
↗
22
9020106M62
Washer, plate (6e5)
Loading…
↗
23
9709506045
Bolt, hexagon
Loading…
↗
24
9299506600
Washer, plain (646)
Loading…
↗
25
9709506012
Bolt(gh1)
Loading…
↗
27
6614126202
Joint, choke lever
Loading…
↗
28
6471439560
Cap,over flow pipe
Loading…
↗
