Yamaha Outboard Parts - CONTROL - FL115AET (2009) | Flood Marine

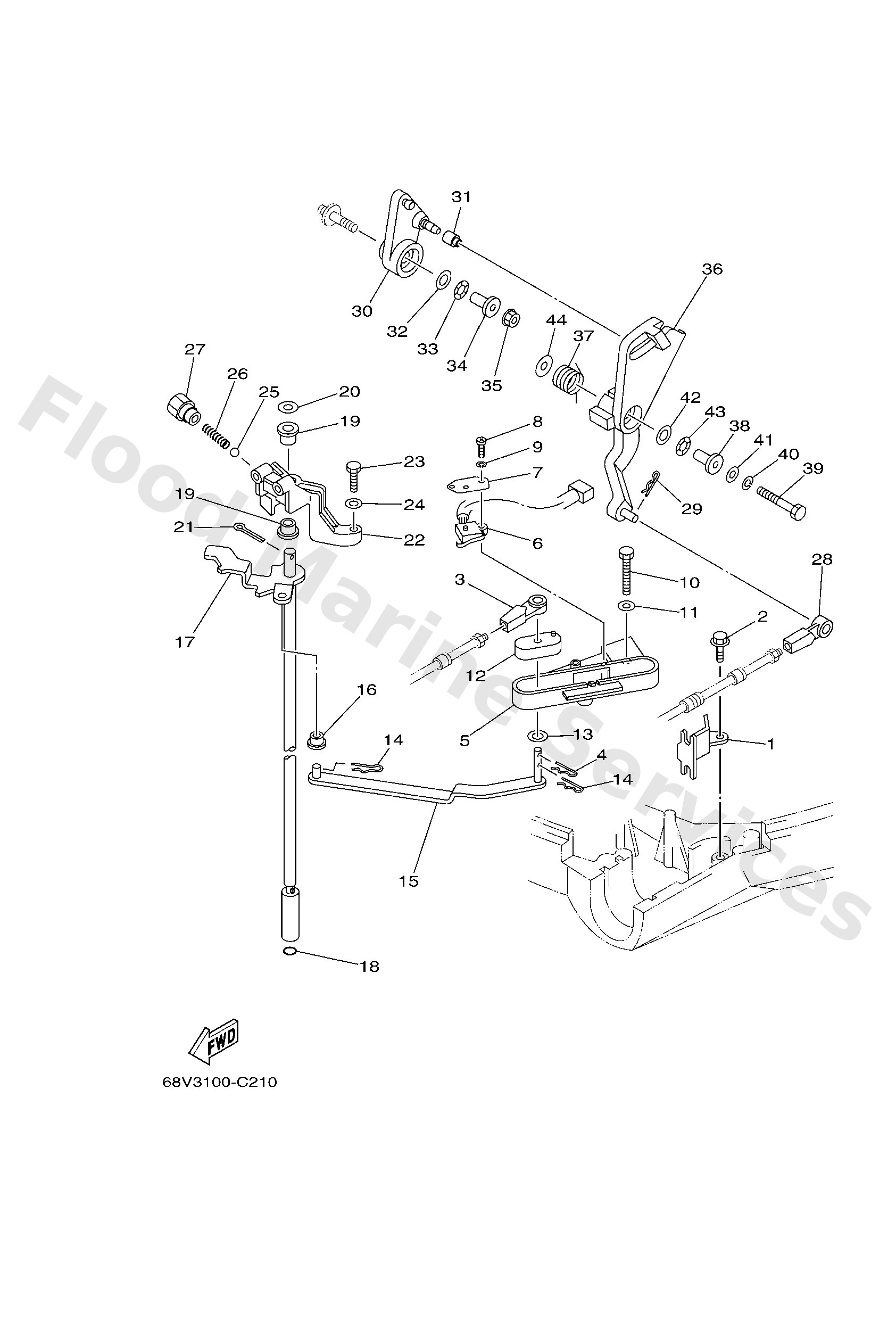

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
67F4853800
Clamp, cable 1
Loading…

↗
2
9010906M86
Bolt
Loading…

↗
3
6634834400
Cable end, remote control
Loading…

↗
4
9046818008
Clip 620436610000
Loading…

↗
5
68V4411701
Bracket
Loading…

↗
6
60V8259F00
Switch assembly
Loading…

↗
7
61A8258801
Plate
Loading…

↗
8
9788504016
Screw, panhead (796)
Loading…

↗
9
9299504100
Ybs67-4 washer, spring
Loading…

↗
10
9709506040
Bolt (682)
Loading…

↗
11
9299506600
Washer, plain (646)
Loading…

↗
12
68V4412201
Bushing, shift rod lever
Loading…

↗
13
9020207M07
Washer, plate (688)
Loading…

↗
15
68V4412100
Lever, shift rod
Loading…

↗
16
9038606M12
Bushing (688)
Loading…

↗
17
68V4412010 L(20.3")
Handle gear shift assembly
Loading…

↗
17
68V4412030 X(25.3")
Handle gear shift assembly
Loading…

↗
18
9321009165
O-ring
Loading…

↗
19
9038690M90
Bush(61a)
Loading…

↗
20
9020109M02
Washer, plate(61a)
Loading…

↗
21
9149020015
Pin, cotter (648)
Loading…

↗
22
68V4411800
Bracket
Loading…

↗
23
9707506025
Bolt
Loading…

↗
25
9350104M02
Ball (697)
Loading…

↗
26
9050112082
Spring 6484411600
Loading…

↗
27
6484271500
Bushing 2
Loading…

↗
30
68V4215700
Lever, throttle
Loading…

↗
31
68V4217100
Bushing
Loading…

↗
32
9020110M02
Washer, plate(6g9)
Loading…

↗
33
9020610M04
Washer, wave (676)
Loading…

↗
34
9038706M21
Collar
Loading…

↗
35
9017906M28
Nut(63v)
Loading…

↗
36
68V4215400
Lever, throttle control
Loading…

↗
37
67F4413500
Spring
Loading…

↗
39
9709506035
Bolt(j52)
Loading…

↗
40
9299506100
Washer(6a1)
Loading…

↗
44
9020106M31
Washer (6a0)
Loading…

↗
