Yamaha Outboard Parts - CONTROL - FL115AET (2011) | Flood Marine

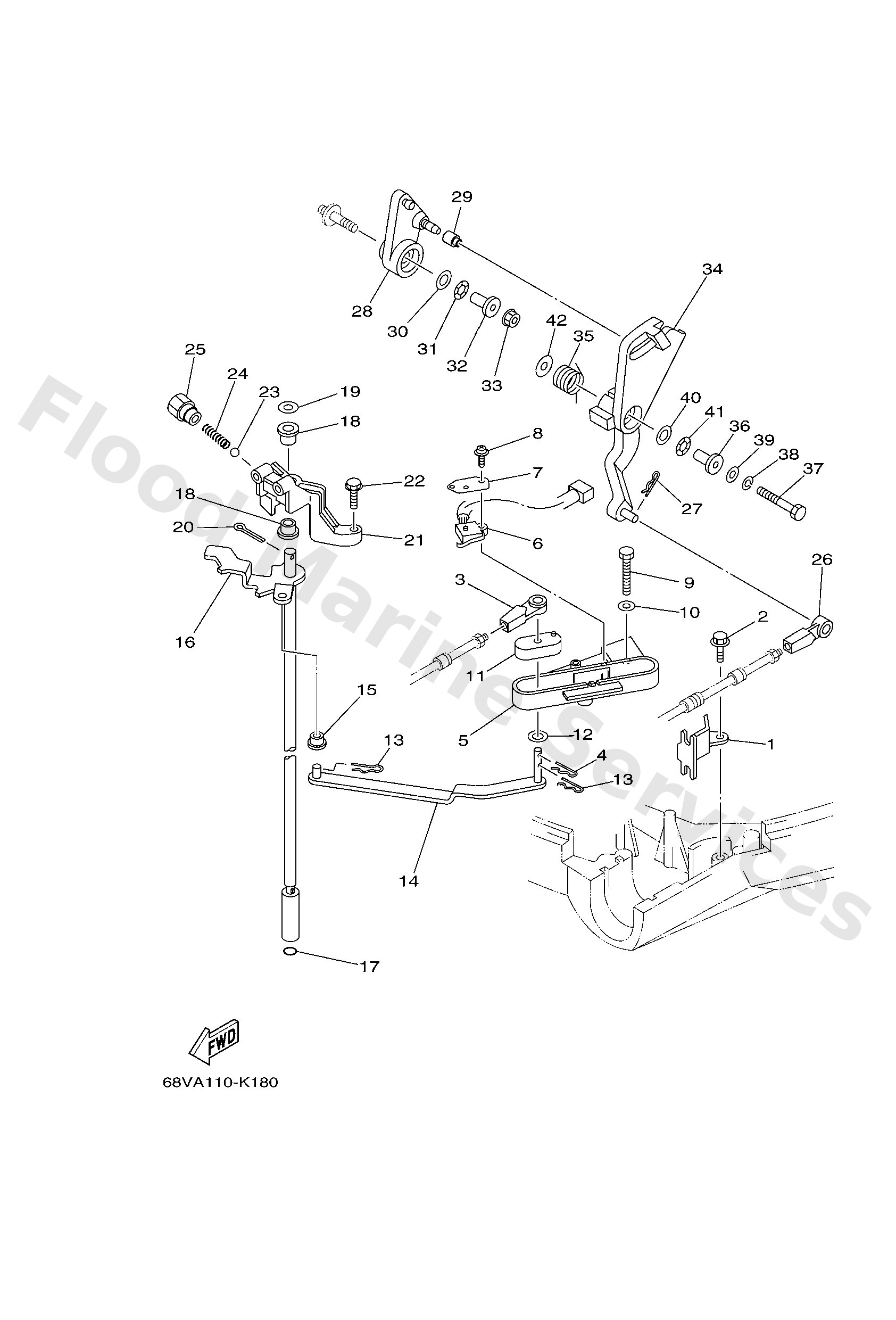

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
67F4853800
Clamp, cable 1
Loading…

↗
2
9010906M86
Bolt
Loading…

↗
3
6634834400
Cable end, remote control
Loading…

↗
4
9046818008
Clip 620436610000
Loading…

↗
5
68V441170194
Bracket
Loading…

↗
6
60V8259F00
Switch assembly
Loading…

↗
7
61A8258801
Plate
Loading…

↗
8
9798504116
Screw, with washer(61b)
Loading…

↗
9
9709506040
Bolt (682)
Loading…

↗
10
9299506600
Washer, plain (646)
Loading…

↗
11
68V4412201
Bushing, shift rod lever
Loading…

↗
12
9020207M07
Washer, plate (688)
Loading…

↗
14
68V4412100
Lever, shift rod
Loading…

↗
15
9038606M12
Bushing (688)
Loading…

↗
16
68V4412010 L(20.3")
Handle gear shift assembly
Loading…

↗
16
68V4412030 X(25.3")
Handle gear shift assembly
Loading…

↗
17
9321009165
O-ring
Loading…

↗
18
9038690M90
Bush(61a)
Loading…

↗
19
9020109M02
Washer, plate(61a)
Loading…

↗
20
9149020015
Pin, cotter (648)
Loading…

↗
21
68V441180094
Bracket
Loading…

↗
22
9757506525
Bolt, hexagon w/w deep recess
Loading…

↗
23
9350104M02
Ball (697)
Loading…

↗
24
9050112082
Spring 6484411600
Loading…

↗
25
6484271500
Bushing 2
Loading…

↗
28
68V4215700
Lever, throttle
Loading…

↗
29
68V4217100
Bushing
Loading…

↗
30
9020110M02
Washer, plate(6g9)
Loading…

↗
31
9020610M04
Washer, wave (676)
Loading…

↗
32
9038706M21
Collar
Loading…

↗
33
9017906M28
Nut(63v)
Loading…

↗
34
68V4215400
Lever, throttle control
Loading…

↗
35
67F4413500
Spring
Loading…

↗
37
9709506035
Bolt(j52)
Loading…

↗
38
9299506100
Washer(6a1)
Loading…

↗
42
9020106M31
Washer (6a0)
Loading…

↗
