Yamaha Outboard Parts - CONTROL - FL115BET (2015) | Flood Marine

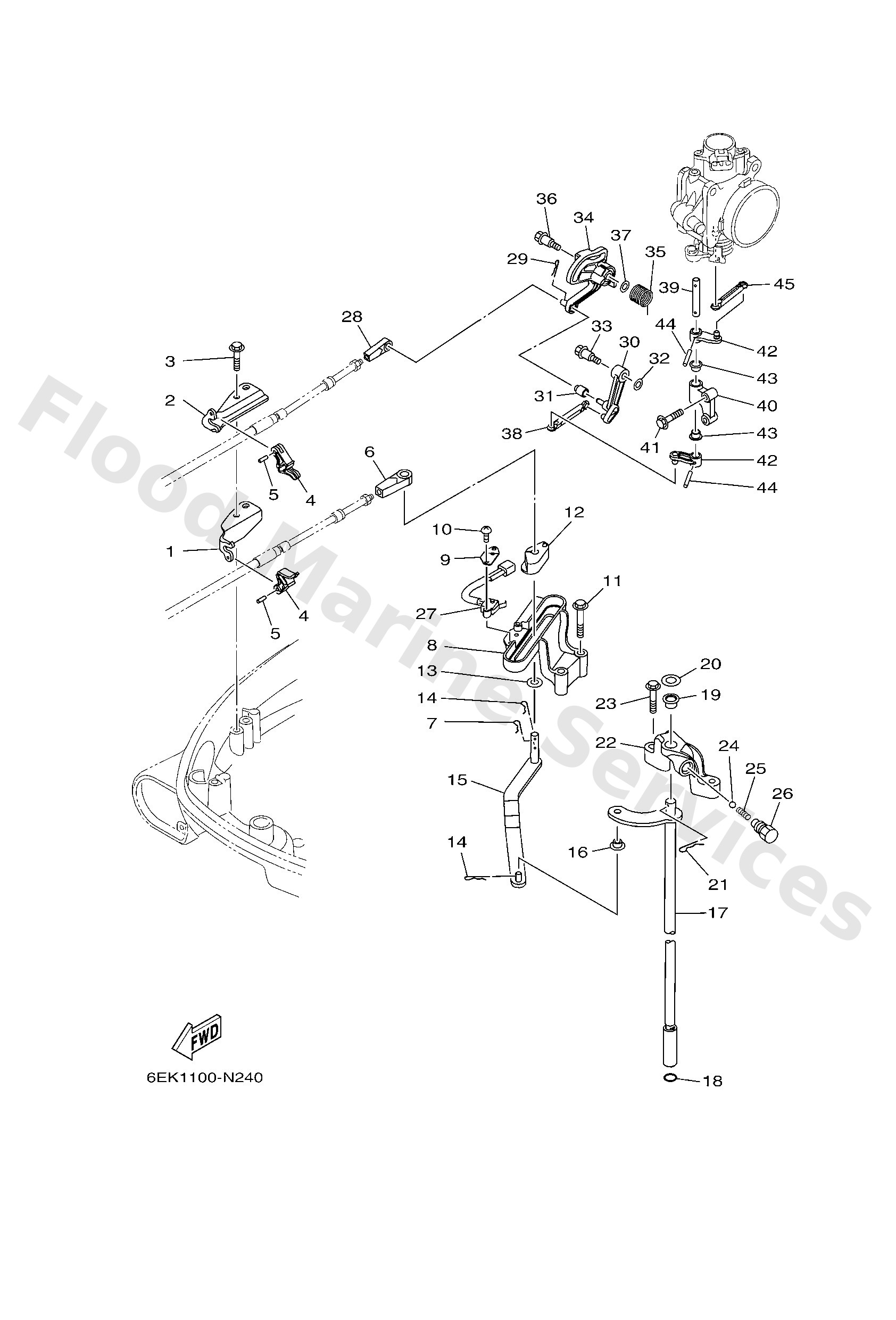

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6EK4853100
Bracket, remote control 1
Loading…

↗
2
6EK4853200
Bracket, remote control 2
Loading…

↗
3
9010906M81
Bolt
Loading…

↗
4
6EK4853800
Clamp, cable 1
Loading…

↗
5
9169030010
Pin, spring (663)
Loading…

↗
6
6E54834400
Cable end, remote control
Loading…

↗
7
9046818008
Clip 620436610000
Loading…

↗
8
6EK4411700
Bracket
Loading…

↗
9
61A8258801
Plate
Loading…

↗
10
9798504116
Screw, with washer(61b)
Loading…

↗
11
9587506040
Bolt, flange deep recess
Loading…

↗
12
63P4412200
Bushing, shift rod lever
Loading…

↗
13
9020208M20
Washer, plate (6e5)
Loading…

↗
15
6EK4412100
Lever, shift rod
Loading…

↗
16
9038606M12
Bushing (688)
Loading…

↗
17
6EK4412000 L(20.3")
Handle gear shift assembly
Loading…

↗
17
6EK4412010 X(25.3")
Handle gear shift assembly
Loading…

↗
18
9321009165
O-ring
Loading…

↗
19
9038610001
Bush
Loading…

↗
20
9020111008
Washer, plate
Loading…

↗
21
90468180A0
Clip
Loading…

↗
22
6EK4411800
Bracket
Loading…

↗
23
9589506030
Bolt, flange deep recess
Loading…

↗
24
9350104M02
Ball (697)
Loading…

↗
25
9050112082
Spring 6484411600
Loading…

↗
26
6484271500
Bushing 2
Loading…

↗
27
60V8259F00
Switch assembly
Loading…

↗
30
6EK4215400
Lever, throttle control
Loading…

↗
31
68V4217100
Bushing
Loading…

↗
32
9020106M05
Washer, plate(6e3)
Loading…

↗
33
9010906288
Bolt
Loading…

↗
34
6EK4121300
Cam, accel.
Loading…

↗
35
6EK4413500
Spring
Loading…

↗
38
6EK4123710
Joint, link
Loading…

↗
39
6EK4163500
Shaft, link connecting
Loading…

↗
40
6EK4166200
Bracket 2
Loading…

↗
42
6EK4215700
Lever, throttle
Loading…

↗
44
9169030018
926-51502-00 pin, spring (700)
Loading…

↗
45
6EK4123700
Joint, link
Loading…

↗
