Yamaha Outboard Parts - CONTROL - FL150AET (2010) | Flood Marine

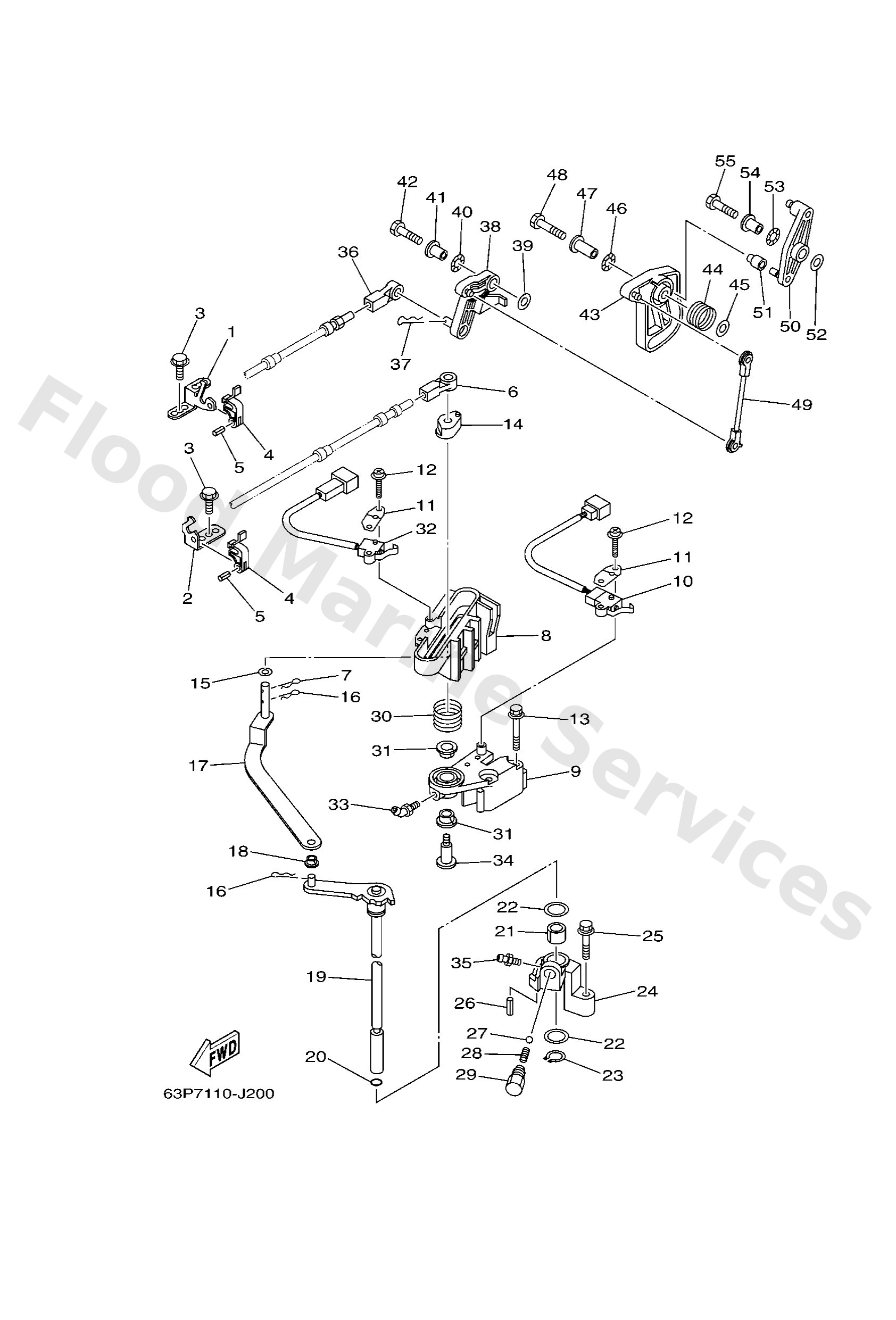

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
63P4853100
Bracket, remote control 1
Loading…

↗
2
63P4853200
Bracket, remote control 2
Loading…

↗
3
9010906M86
Bolt
Loading…

↗
4
63P4853800
Clamp, cable 1
Loading…

↗
5
9169030010
Pin, spring (663)
Loading…

↗
6
6E54834400
Cable end, remote control
Loading…

↗
7
9046818008
Clip 620436610000
Loading…

↗
8
63P441760094
Bracket
Loading…

↗
9
63P441170094
Bracket
Loading…

↗
10
69J8259F00
Switch assembly
Loading…

↗
11
61A8258801
Plate
Loading…

↗
12
9798504116
Screw, with washer(61b)
Loading…

↗
13
9759506550
Bolt, hexagon w/w deep recess
Loading…

↗
14
63P4412200
Bushing, shift rod lever
Loading…

↗
15
9020208M20
Washer, plate (6e5)
Loading…

↗
17
63P4412100
Lever, shift rod
Loading…

↗
18
9038606M12
Bushing (688)
Loading…

↗
19
63P4412000
Handle gear shift assembly
Loading…

↗
20
9321009165
O-ring
Loading…

↗
21
9038616M66
Bush(6e5)
Loading…

↗
22
9020216061
Washer, plate(663)
Loading…

↗
23
9341016006
Circlip
Loading…

↗
24
63P441180094
Bracket
Loading…

↗
25
9757506535
Bolt, hexagon w/w deep recess
Loading…

↗
27
9350104M02
Ball (697)
Loading…

↗
28
9050112082
Spring 6484411600
Loading…

↗
29
6484271500
Bushing 2
Loading…

↗
30
9050820M31
Spring, torsion(61a)
Loading…

↗
31
9038612069
Bush(666)
Loading…

↗
32
60V8259F00
Switch assembly
Loading…

↗
33
9370006M01
Nipple, grease(61a)
Loading…

↗
34
9010908019
Bolt
Loading…

↗
35
9370006M03
Nipple, grease(6a1)
Loading…

↗
38
63P4215400
Lever, throttle control
Loading…

↗
39
9020106M31
Washer (6a0)
Loading…

↗
40
9020610M04
Washer, wave (676)
Loading…

↗
41
9038706M29
Coller (6a0)
Loading…

↗
42
9709506025
Bolt
Loading…

↗
43
63P4121300
Cam, accel.
Loading…

↗
44
69J4413500
Spring
Loading…

↗
47
9038706M82
Collar
Loading…

↗
48
9709506035
Bolt(j52)
Loading…

↗
49
63P4123700
Joint, link
Loading…

↗
50
63P4215700
Lever, throttle
Loading…

↗
51
68V4217100
Bushing
Loading…

↗
