Yamaha Outboard Parts - CONTROL - FL150DET (2017) | Flood Marine

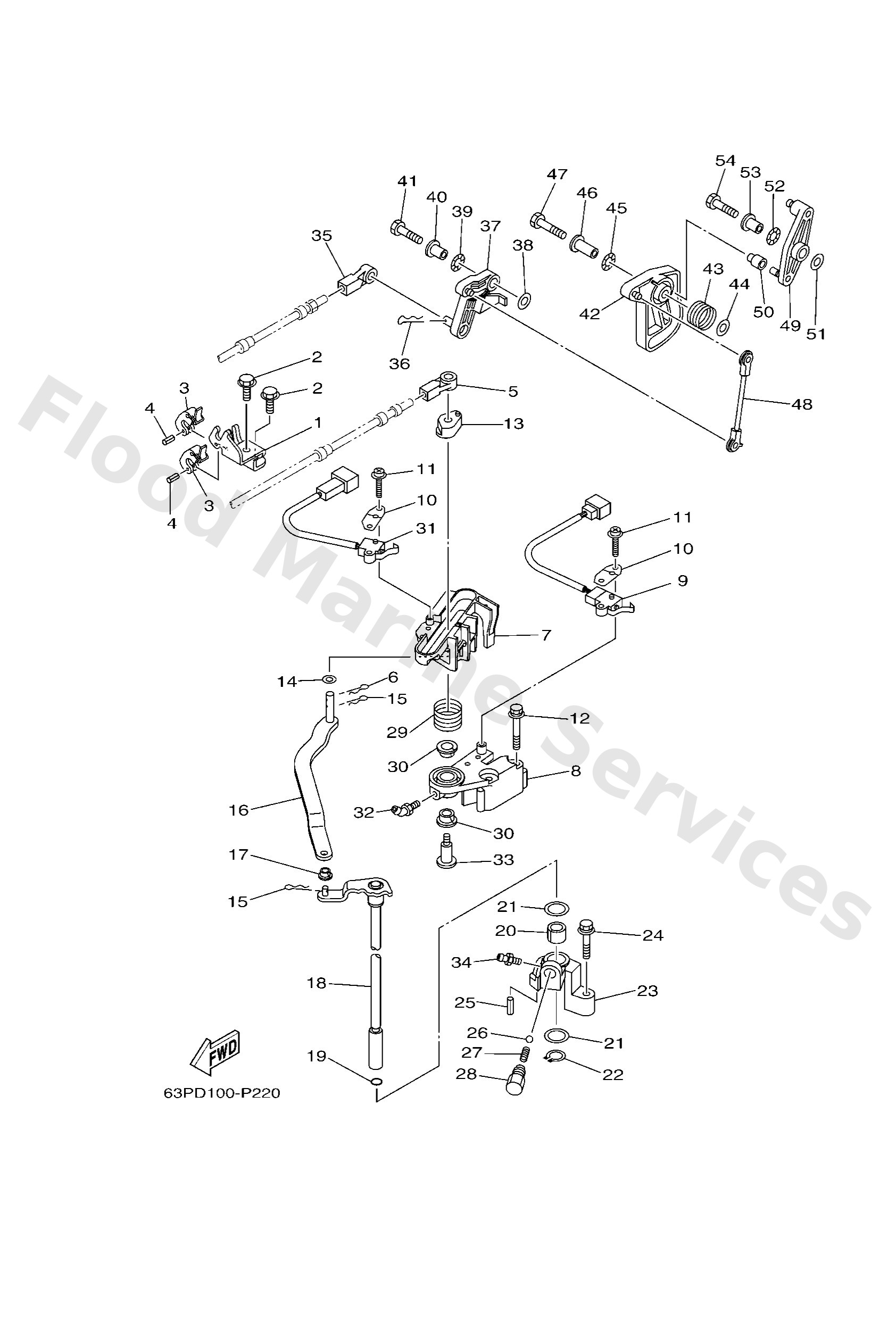

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
63P4853110
Bracket, remote control 1
Loading…

↗
2
9010906M86
Bolt
Loading…

↗
3
6E54853800
Clamp, cable
Loading…

↗
4
9169030010
Pin, spring (663)
Loading…

↗
5
6E54834400
Cable end, remote control
Loading…

↗
6
9046818008
Clip 620436610000
Loading…

↗
7
6DA4417600
Bracket
Loading…

↗
8
63P4411701
Bracket
Loading…

↗
9
69J8259F00
Switch assembly
Loading…

↗
10
61A8258801
Plate
Loading…

↗
11
9798504116
Screw, with washer(61b)
Loading…

↗
12
9759506550
Bolt, hexagon w/w deep recess
Loading…

↗
13
63P4412200
Bushing, shift rod lever
Loading…

↗
14
9020208M20
Washer, plate (6e5)
Loading…

↗
16
6DA4412100
Lever, shift rod
Loading…

↗
17
9038606M12
Bushing (688)
Loading…

↗
18
6DA4412011
Handle gear shift assembly
Loading…

↗
19
9321009165
O-ring
Loading…

↗
20
9038616M66
Bush(6e5)
Loading…

↗
21
9020216061
Washer, plate(663)
Loading…

↗
22
9341016006
Circlip
Loading…

↗
23
63P4411800
Bracket
Loading…

↗
24
9757506535
Bolt, hexagon w/w deep recess
Loading…

↗
26
9350104M02
Ball (697)
Loading…

↗
27
9050112082
Spring 6484411600
Loading…

↗
28
6484271500
Bushing 2
Loading…

↗
29
9050820M31
Spring, torsion(61a)
Loading…

↗
30
9038612069
Bush(666)
Loading…

↗
31
60V8259F00
Switch assembly
Loading…

↗
32
9370006M01
Nipple, grease(61a)
Loading…

↗
33
9010908019
Bolt
Loading…

↗
34
9370006M03
Nipple, grease(6a1)
Loading…

↗
37
63P4215410
Lever, throttle control
Loading…

↗
38
9020106M31
Washer (6a0)
Loading…

↗
39
9020610M04
Washer, wave (676)
Loading…

↗
40
9038706M29
Coller (6a0)
Loading…

↗
41
9709506025
Bolt
Loading…

↗
42
63P4121300
Cam, accel.
Loading…

↗
43
69J4413500
Spring
Loading…

↗
46
9038706M82
Collar
Loading…

↗
47
9709506035
Bolt(j52)
Loading…

↗
48
63P4123700
Joint, link
Loading…

↗
49
63P4215700
Lever, throttle
Loading…

↗
50
68V4217100
Bushing
Loading…

↗
