Yamaha Outboard Parts - CONTROL - FL175CET (2019) | Flood Marine

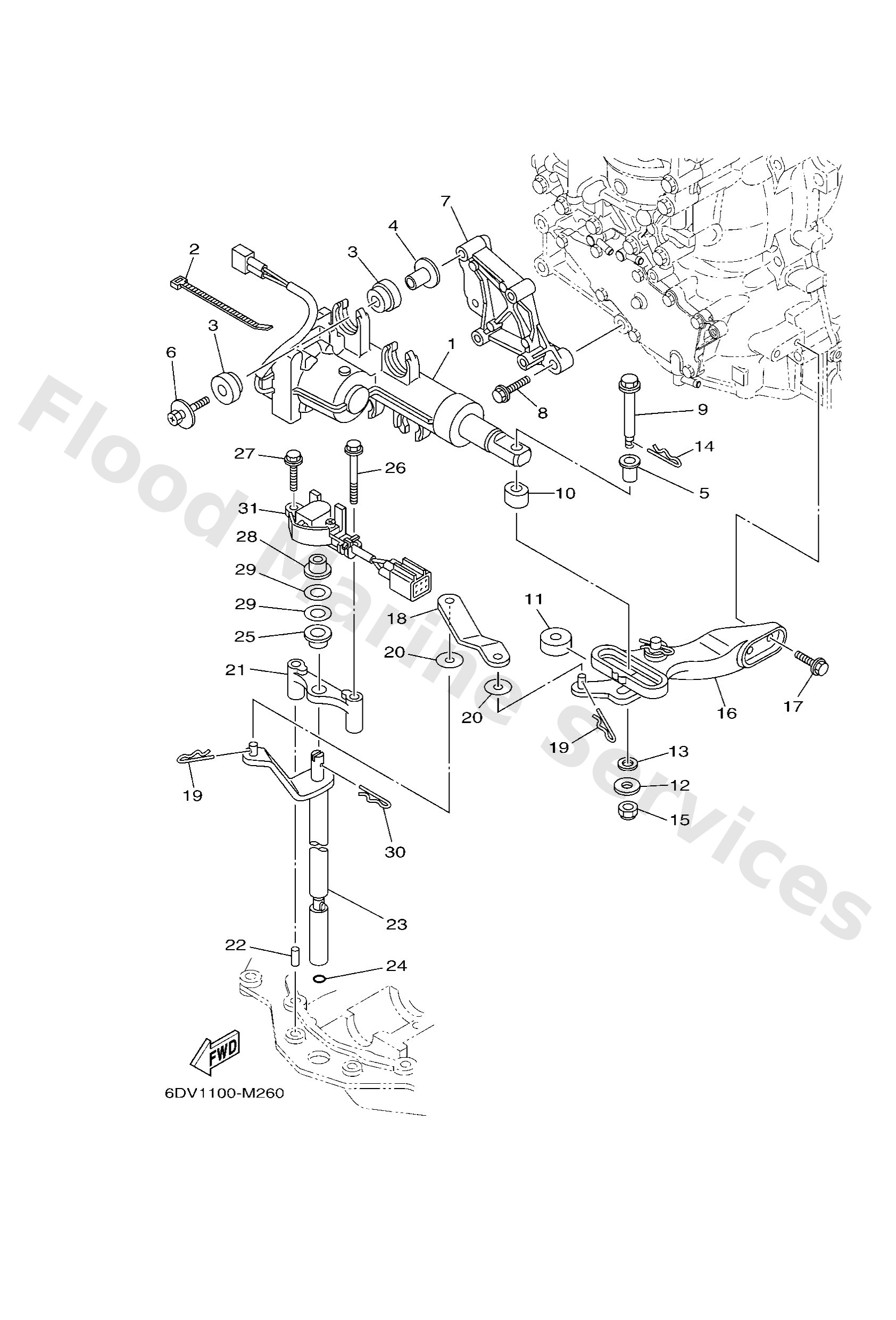

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6DV4820A00
Actuator unit
Loading…

↗
2
9046511M10
Clamp
Loading…

↗
3
6DV8556400
Grommet
Loading…

↗
4
9038706176
Collar
Loading…

↗
5
9038608008
Bush
Loading…

↗
6
68F8511900
Bolt
Loading…

↗
7
6DV4414200
Joint
Loading…

↗
8
95D7508030
Bolt, flange deep recess
Loading…

↗
9
6DV4219500
Pin, joint 1
Loading…

↗
10
6DV4412200
Bushing, shift rod lever
Loading…

↗
11
6DV4413200
Bushing
Loading…

↗
12
9020106068
Washer,plate (6k8)
Loading…

↗
13
9020208M41
Washer, plate(6t4)
Loading…

↗
14
9046818008
Clip 620436610000
Loading…

↗
15
9018506M07
Nut, self-locking(6e5)
Loading…

↗
16
6DV4410000
Shift link assembly
Loading…

↗
17
97E7506520
Bolt, hexagon w/w deep recess
Loading…

↗
18
6DV4412100
Lever, shift rod
Loading…

↗
20
9020206015
Washer, plate
Loading…

↗
21
6DV4411800
Bracket
Loading…

↗
22
9360409066
Pin, dowel
Loading…

↗
23
6DV4412001 X(25.3")
Handle gear shift assembly
Loading…

↗
23
6DV4412010 L(20.3")
Handle gear shift assembly
Loading…

↗
24
9321009165
O-ring
Loading…

↗
25
9038610001
Bush
Loading…

↗
26
97E9506550
Bolt, hexagon w/w deep recess
Loading…

↗
29
9020111008
Washer, plate
Loading…

↗
30
90468180A0
Clip
Loading…

↗
31
6DV6830300
Sensor assembly
Loading…

↗
