Yamaha Outboard Parts - CONTROL - FL225FET (2011) | Flood Marine

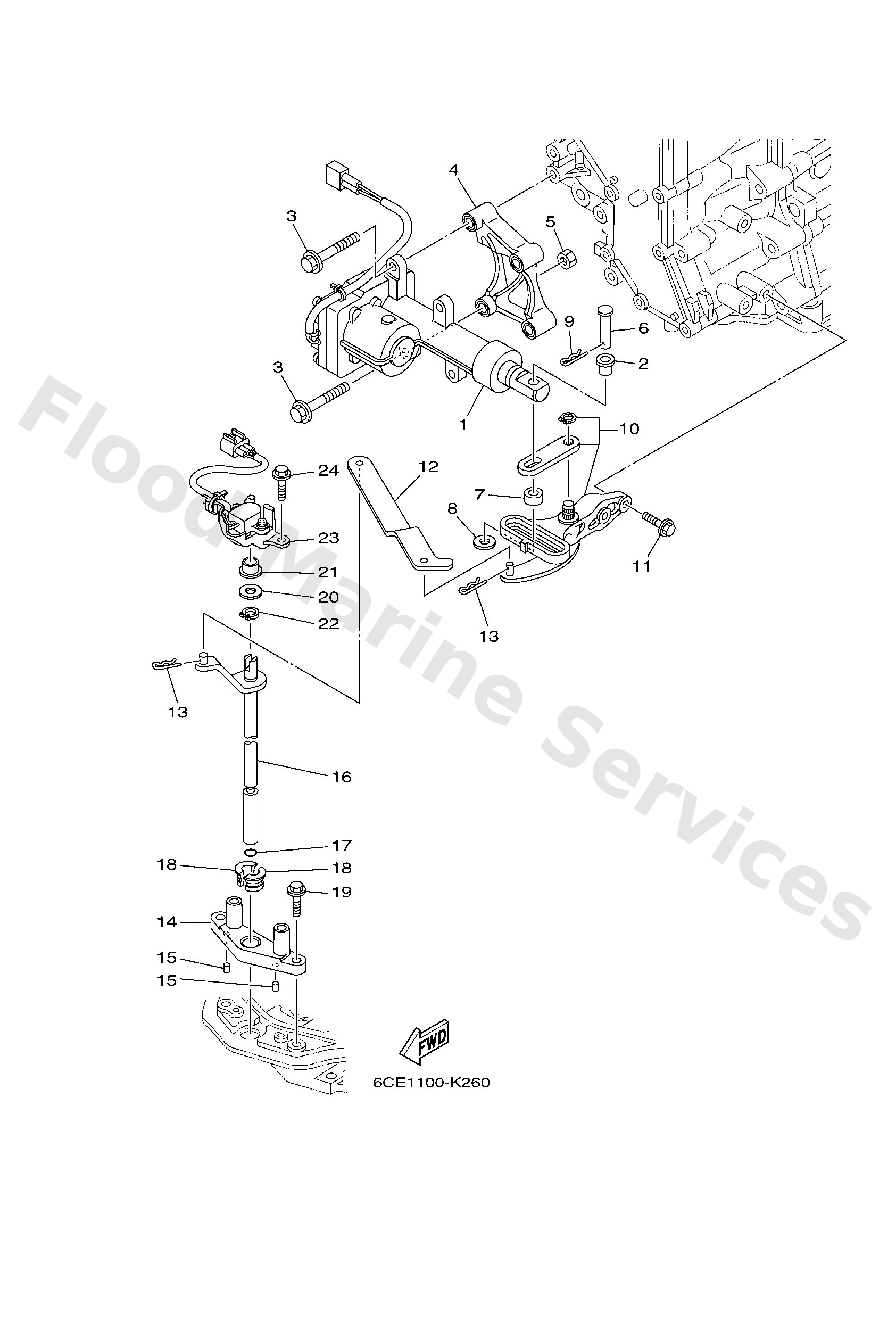

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6CE4820A00
Actuator unit
Loading…

↗
2
9038608008
Bush
Loading…

↗
3
9757508555
Bolt, hexagon w/w deep recess
Loading…

↗
4
6CE4414210
Joint
Loading…

↗
5
9538008600
Nut (661)
Loading…

↗
6
6CE4219500
Pin, joint 1
Loading…

↗
7
6CE4412200
Bushing, shift rod lever
Loading…

↗
8
9020108M09
Washer, plate
Loading…

↗
9
9046818008
Clip 620436610000
Loading…

↗
10
6CE4410000
Shift link assembly
Loading…

↗
11
9757506525
Bolt, hexagon w/w deep recess
Loading…

↗
12
6CE4412100
Lever, shift rod
Loading…

↗
14
6CE441180094
Bracket
Loading…

↗
15
9360407M13
Pin, dowel(6l5)
Loading…

↗
16
6CE4412000 X(25.3")
Handle gear shift assembly
Loading…

↗
16
6CE4412010 U(30.3")
Handle gear shift assembly
Loading…

↗
17
9321009165
O-ring
Loading…

↗
18
9038611001
Bush
Loading…

↗
19
9587506025
Bolt, flange deep recess
Loading…

↗
20
9020111008
Washer, plate
Loading…

↗
21
9038610001
Bush
Loading…

↗
22
9341010082
Circlip
Loading…

↗
23
6CE6830300
Sensor assembly
Loading…

↗
