Yamaha Outboard Parts - CONTROL - FL250AET (2010) | Flood Marine

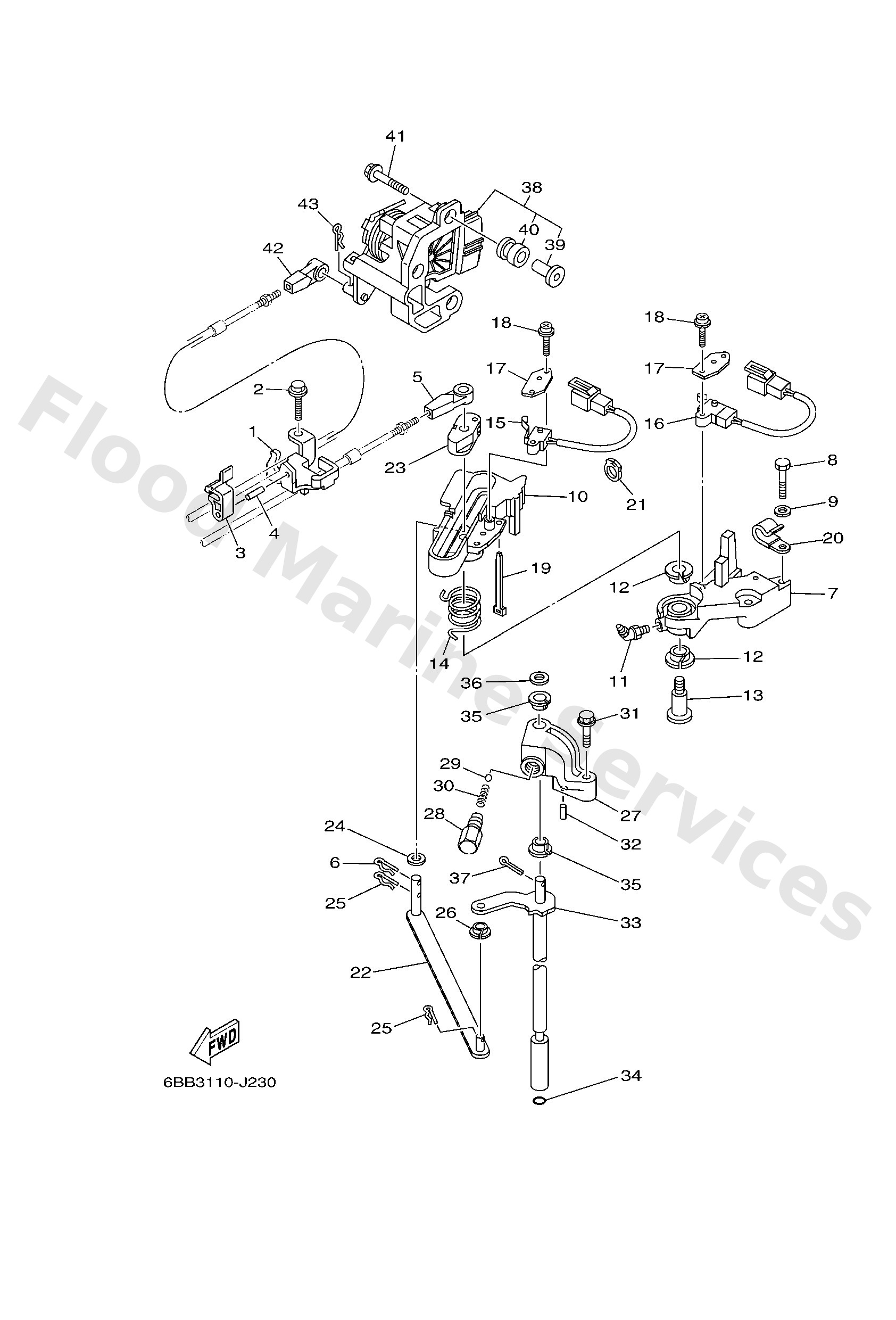

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6P24853100
Bracket, remote control 1
Loading…

↗
2
9010906M86
Bolt
Loading…

↗
3
63P4853800
22
Loading…

↗
4
9169030010
Pin, Spring
Loading…

↗
5
6E54834400
22
Loading…

↗
6
9046818008
Clip
Loading…

↗
7
69J441170094
Bracket
Loading…

↗
8
9709506035
Bolt
Loading…

↗
9
9299506600
10
Loading…

↗
10
69J441760194
Bracket
Loading…

↗
11
9370006M01
22
Loading…

↗
12
9038612069
Bush
Loading…

↗
13
9010908019
Bolt
Loading…

↗
14
9050820020
Spring, Torsion
Loading…

↗
15
60V8259F00
Switch Assy
Loading…

↗
16
69J8259F00
Switch Assy
Loading…

↗
17
61A8258801
Plate
Loading…

↗
18
9798504116
Screw, With Washer
Loading…

↗
19
9046511M10
Clamp
Loading…

↗
20
9046506M86
Clamp
Loading…

↗
21
9046409010
14
Loading…

↗
22
6P24412100
Lever, shift rod
Loading…

↗
23
69J4412200
Bushing, Shift Rod Lever
Loading…

↗
24
9020208M20
22
Loading…

↗
26
9038606M12
22
Loading…

↗
27
69J441180094
Bracket
Loading…

↗
28
6484271500
19
Loading…

↗
29
9350104M02
Ball
Loading…

↗
30
9050112082
Spring, Compression
Loading…

↗
31
9757506535
Bolt, With Washer
Loading…

↗
33
69J4412010 U(30.3")
Handle gear shift assembly
Loading…

↗
33
69J4412000 X(25.3")
Handle Gear Shift Assy
Loading…

↗
34
9321009165
25
Loading…

↗
35
9038690M90
20
Loading…

↗
36
9020109M02
Washer, Plate
Loading…

↗
37
9149020015
Pin. Cotter
Loading…

↗
38
6P28A41000
Sensor unit
Loading…

↗
39
6P24413900
Collar
Loading…

↗
40
6P24127300
Grommet
Loading…

↗
41
9011906126
Bolt, with washer
Loading…

↗
