Yamaha Outboard Parts - CONTROL - FL250BET (2009) | Flood Marine

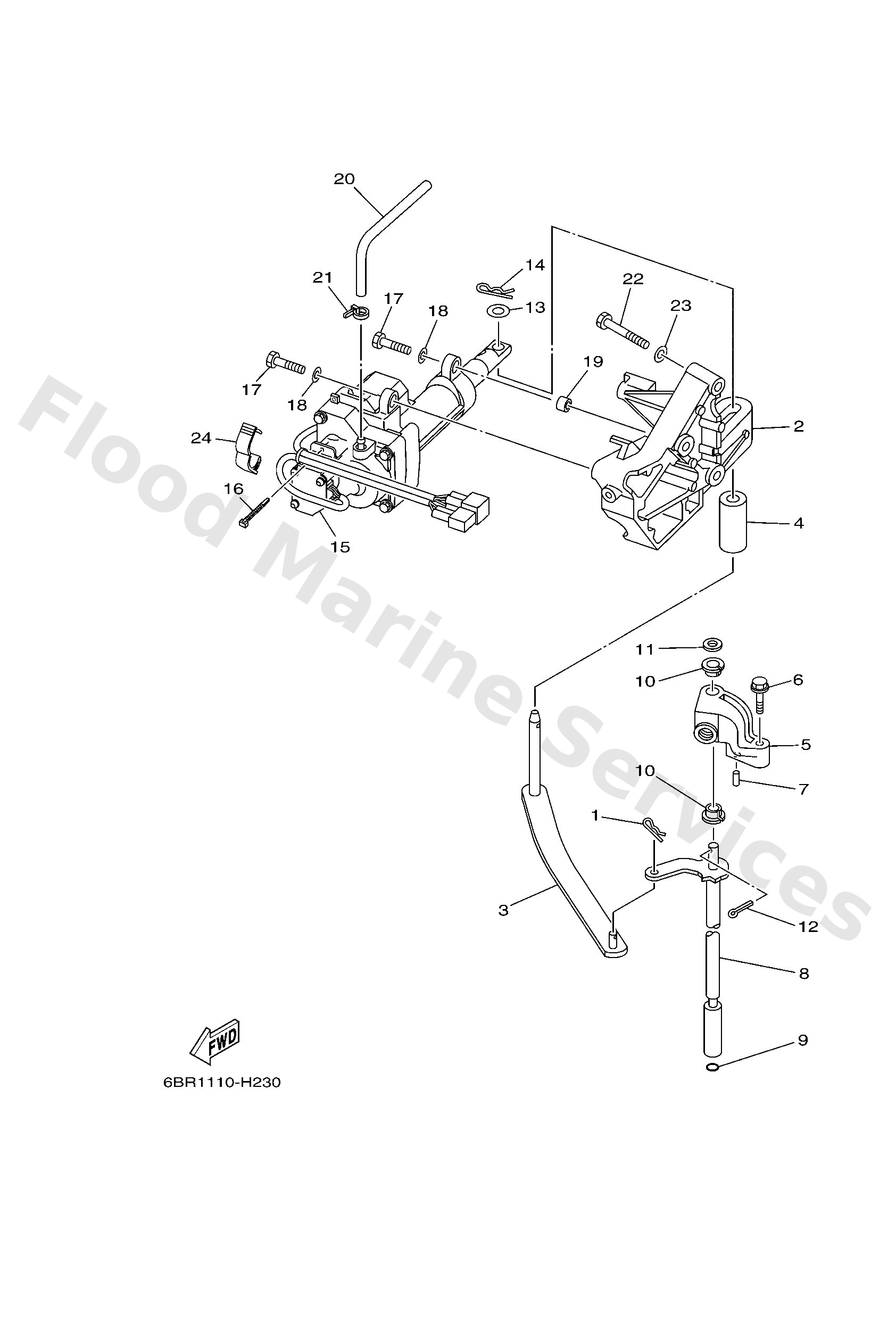

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
9046818008
Clip 620436610000
Loading…

↗
2
6BR441760094
Bracket
Loading…

↗
3
6BR4412100
Lever, shift rod
Loading…

↗
4
6BR4412200
Bushing, shift rod lever
Loading…

↗
5
69J441180094
Bracket
Loading…

↗
6
9757506535
Bolt, hexagon w/w deep recess
Loading…

↗
7
9169030010
Pin, spring (663)
Loading…

↗
8
6BR4412000 X(25.3")
Handle gear shift assembly
Loading…

↗
8
6BR4412010 U(30.3")
Handle gear shift assembly
Loading…

↗
9
9321009165
O-ring
Loading…

↗
10
9038690M90
Bush(61a)
Loading…

↗
11
9020109M02
Washer, plate(61a)
Loading…

↗
12
9149020015
Pin, cotter (648)
Loading…

↗
13
9020111008
Washer, plate
Loading…

↗
14
90468180A0
Clip
Loading…

↗
15
6AW4820A10
Actuator unit
Loading…

↗
16
9046511M10
Clamp
Loading…

↗
17
9708008030
Bolt, hexagon (fj1)
Loading…

↗
18
9290008600
Washer, plain (663)
Loading…

↗
19
9038708M31
Collar
Loading…

↗
20
6BR2431400
Pipe 4
Loading…

↗
22
9701308045
Bolt
Loading…

↗
23
9290308600
Washer, plain (663)
Loading…

↗
24
9046418004
Clamp
Loading…

↗
