FL250BET (2011)
CONTROL

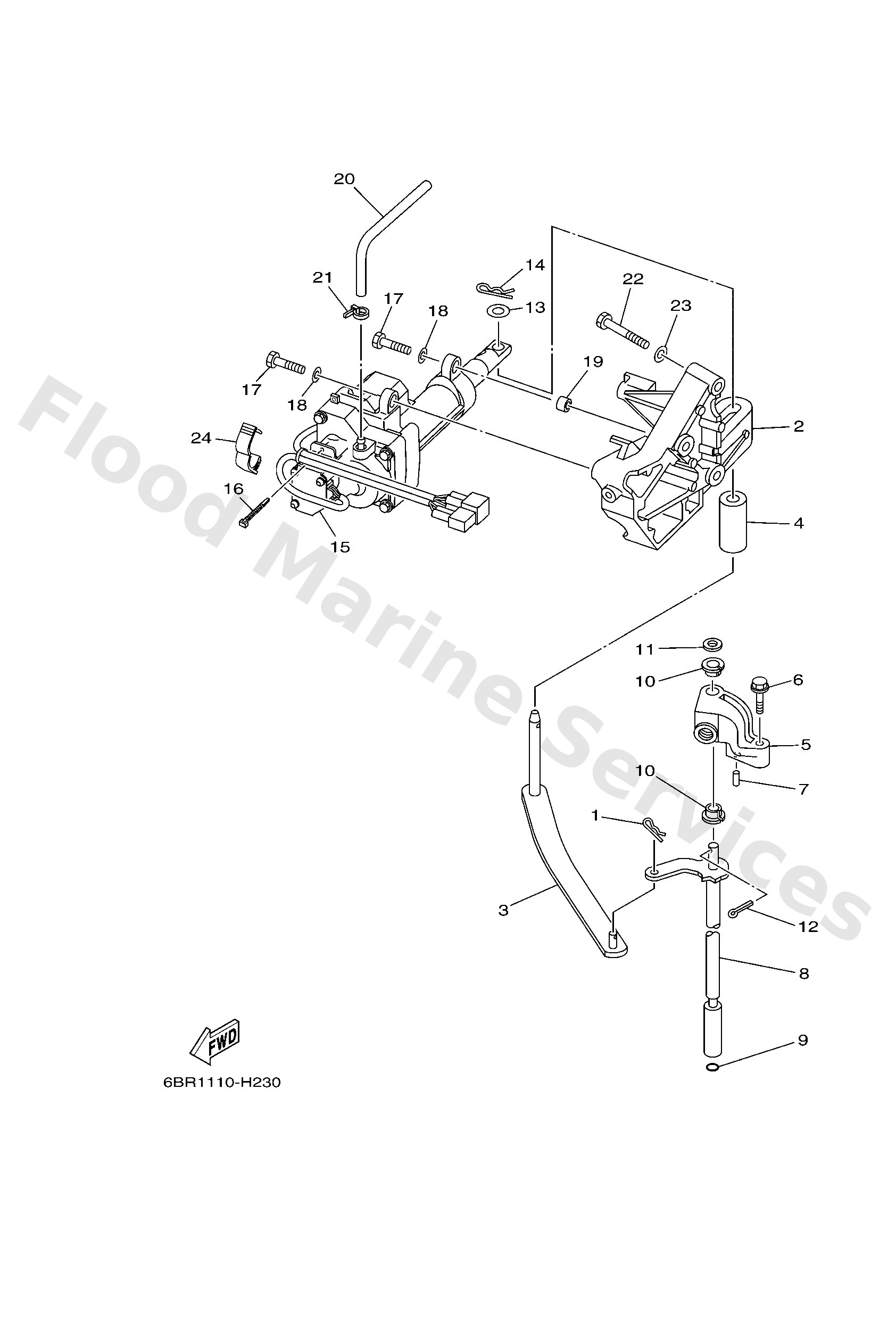

Diagram: CONTROL
Parts List
Reference
Description
Price
1
9046818008
Clip 620436610000
Loading…
↗
2
6BR441760094
Bracket
Loading…
↗
3
6BR4412100
Lever, shift rod
Loading…
↗
4
6BR4412200
Bushing, shift rod lever
Loading…
↗
5
69J4411800
Bracket
Loading…
↗
6
9757506535
Bolt, hexagon w/w deep recess
Loading…
↗
7
9169030010
Pin, spring (663)
Loading…
↗
8
6BR4412000
X(25.3")
Handle gear shift assembly
Loading…
↗
8
6BR4412010
U(30.3")
Handle gear shift assembly
Loading…
↗
9
9321009165
O-ring
Loading…
↗
10
9038690M90
Bush(61a)
Loading…
↗
11
9020109M02
Washer, plate(61a)
Loading…
↗
12
9149020015
Pin, cotter (648)
Loading…
↗
13
9020111008
Washer, plate
Loading…
↗
14
90468180A0
Clip
Loading…
↗
15
6AW4820A10
Actuator unit
Loading…
↗
16
9046511M10
Clamp
Loading…
↗
17
9708008030
Bolt, hexagon (fj1)
Loading…
↗
18
9290008600
Washer, plain (663)
Loading…
↗
19
9038708M31
Collar
Loading…
↗
20
6BR2431400
Pipe 4
Loading…
↗
22
9701308045
Bolt
Loading…
↗
23
9290308600
Washer, plain (663)
Loading…
↗
24
9046418004
Clamp
Loading…
↗
