Yamaha Outboard Parts - CONTROL - FL250HET (2025) | Flood Marine

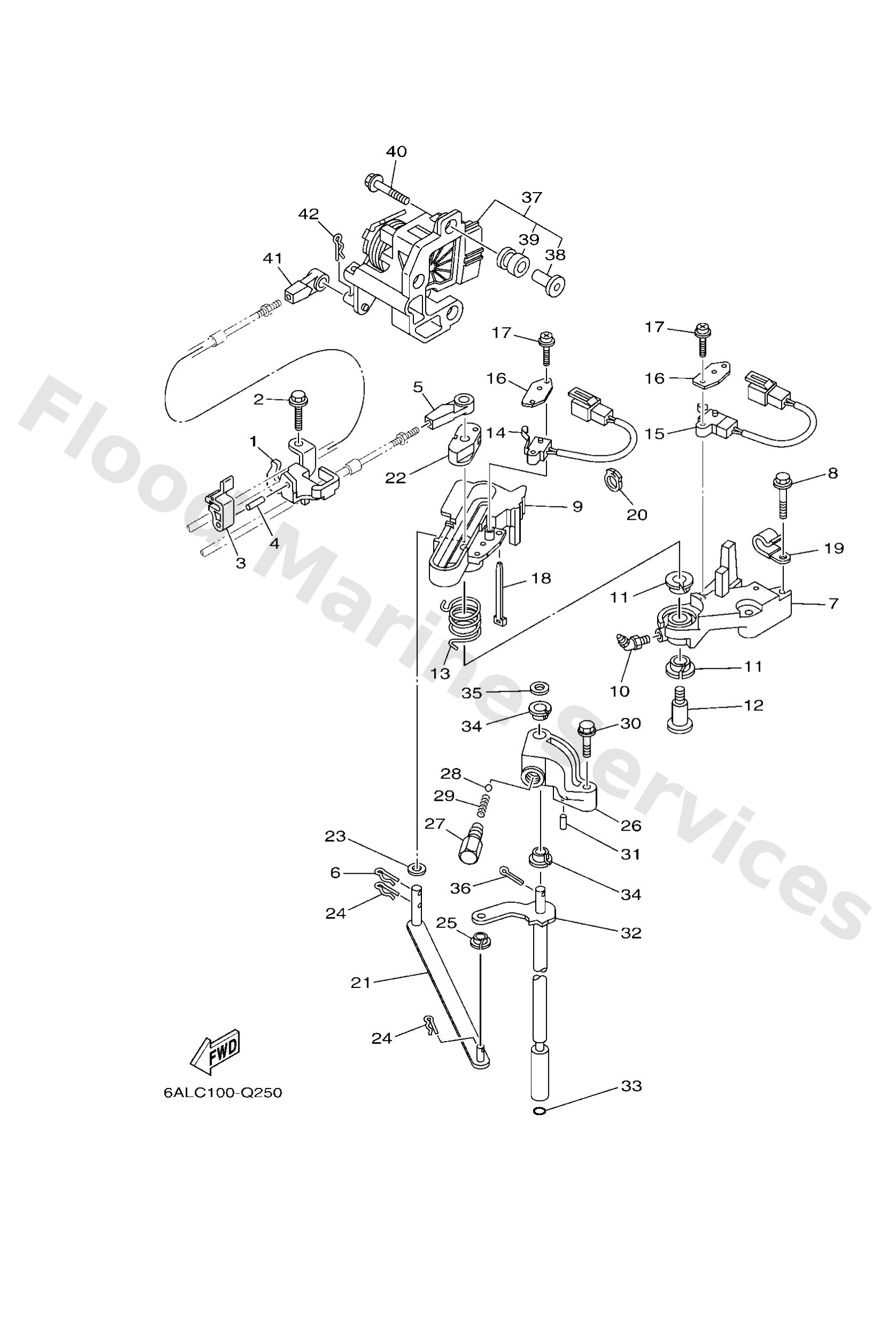

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6P24853100
Bracket, remote control 1
Loading…

↗
2
9010906M86
Bolt
Loading…

↗
3
63P4853800
Clamp, cable 1
Loading…

↗
4
9169030010
Pin, spring (663)
Loading…

↗
5
6E54834400
Cable end, remote control
Loading…

↗
6
9046818008
Clip 620436610000
Loading…

↗
7
69J4411700
Bracket
Loading…

↗
8
97E9506535
Bolt, hexagon w/w deep recess
Loading…

↗
9
69J4417601
Bracket
Loading…

↗
10
9370006M01
Nipple, grease(61a)
Loading…

↗
11
9038612069
Bush(666)
Loading…

↗
12
9010908019
Bolt
Loading…

↗
13
9050820020
Spring, torsion
Loading…

↗
14
60V8259F01
Switch assembly
Loading…

↗
15
69J8259F00
Switch assembly
Loading…

↗
16
61A8258801
Plate
Loading…

↗
17
9798504116
Screw, with washer(61b)
Loading…

↗
18
9046511M10
Clamp
Loading…

↗
19
9046506M86
Clamp
Loading…

↗
20
9046409010
Clamp
Loading…

↗
21
6P24412100
Lever, shift rod
Loading…

↗
22
69J4412200
Bushing, shift rod lever
Loading…

↗
23
9020208M20
Washer, plate (6e5)
Loading…

↗
25
9038606M12
Bushing (688)
Loading…

↗
26
69J4411800
Bracket
Loading…

↗
27
6484271500
Bushing 2
Loading…

↗
28
9350104M02
Ball (697)
Loading…

↗
29
9050112082
Spring 6484411600
Loading…

↗
30
97E7506535
Bolt, hexagon w/w deep recess
Loading…

↗
32
69J4412012 U(30.3")
Handle gear shift assembly
Loading…

↗
32
69J4412002 X(25.3")
Handle gear shift assembly
Loading…

↗
33
9321009165
O-ring
Loading…

↗
34
9038690M90
Bush(61a)
Loading…

↗
35
9020109M02
Washer, plate(61a)
Loading…

↗
36
9149020015
Pin, cotter (648)
Loading…

↗
37
6P28A41002
Sensor unit
Loading…

↗
38
6P24413900
Collar
Loading…

↗
39
6CB4127300
Grommet
Loading…

↗
40
9011906297
Bolt, with washer
Loading…

↗
