Yamaha Outboard Parts - CONTROL - FL250LET (2018) | Flood Marine

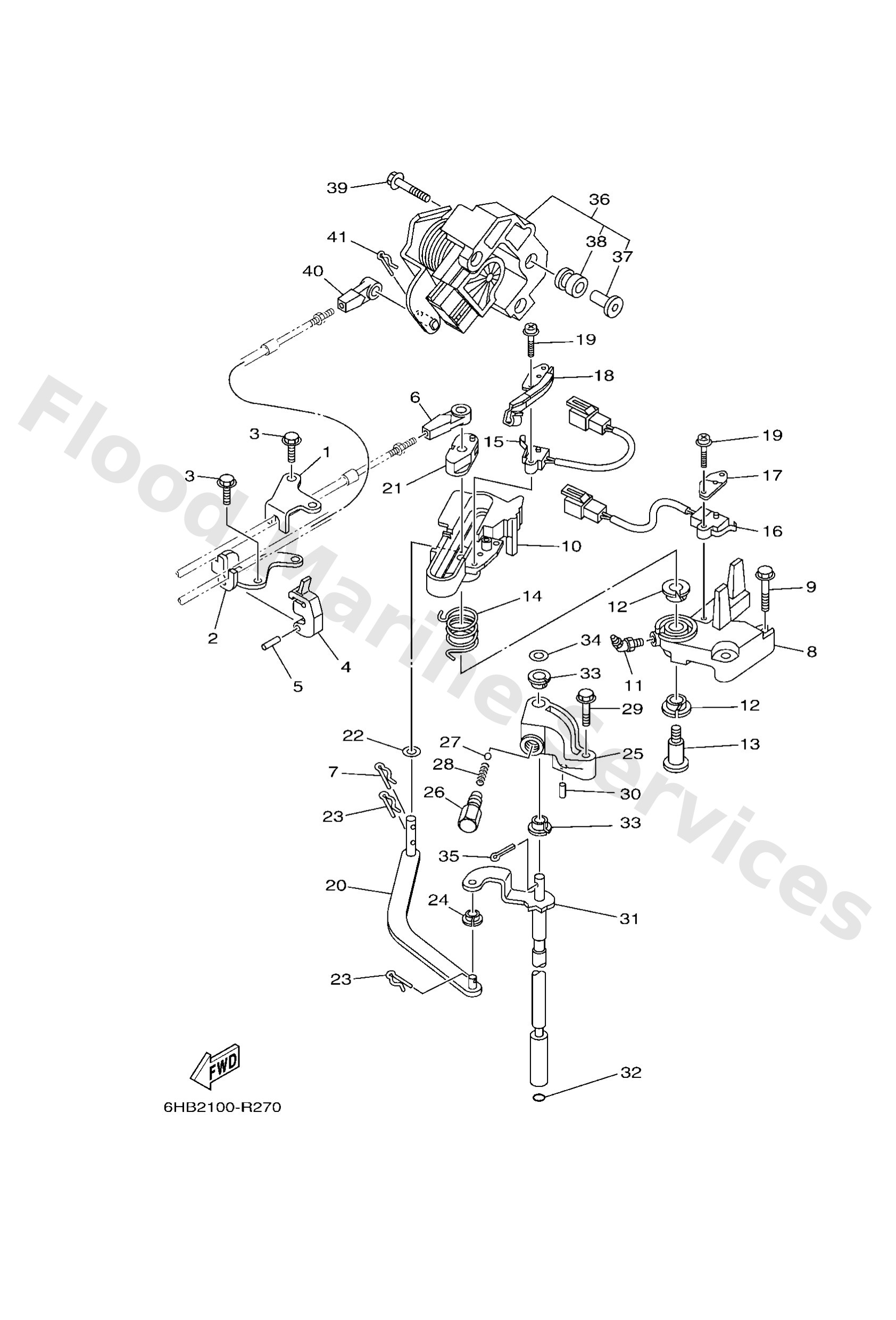

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6CB4853100
Bracket, remote control 1
Loading…

↗
2
6CB4853200
Bracket, remote control 2
Loading…

↗
3
9759506516
Bolt, with washer(6r6)
Loading…

↗
4
6E54853800
Clamp, cable
Loading…

↗
5
9169030010
Pin, spring (663)
Loading…

↗
6
6E54834400
Cable end, remote control
Loading…

↗
7
9046818008
Clip 620436610000
Loading…

↗
8
6CB4411700
Bracket
Loading…

↗
9
9589506035
Bolt, flange(4nx)
Loading…

↗
10
69J4417601
Bracket
Loading…

↗
11
9370006M01
Nipple, grease(61a)
Loading…

↗
12
9038612069
Bush(666)
Loading…

↗
13
9010908019
Bolt
Loading…

↗
14
9050820052
Spring, torsion
Loading…

↗
15
60V8259F00
Switch assembly
Loading…

↗
16
69J8259F00
Switch assembly
Loading…

↗
17
61A8258801
Plate
Loading…

↗
18
6CB8258800
Plate
Loading…

↗
19
9798504116
Screw, with washer(61b)
Loading…

↗
20
6CB4412100
Lever, shift rod
Loading…

↗
21
69J4412200
Bushing, shift rod lever
Loading…

↗
22
9020208M20
Washer, plate (6e5)
Loading…

↗
24
9038606M12
Bushing (688)
Loading…

↗
25
69J4411800
Bracket
Loading…

↗
26
6484271500
Bushing 2
Loading…

↗
27
9350104M02
Ball (697)
Loading…

↗
28
9050112082
Spring 6484411600
Loading…

↗
29
9757506535
Bolt, hexagon w/w deep recess
Loading…

↗
31
6FR4412000
Handle gear shift assembly
Loading…

↗
32
9321009165
O-ring
Loading…

↗
33
9038690M90
Bush(61a)
Loading…

↗
34
9020109M02
Washer, plate(61a)
Loading…

↗
35
9149020015
Pin, cotter (648)
Loading…

↗
36
6CB8A41010
Sensor unit
Loading…

↗
37
6P24413900
Collar
Loading…

↗
38
6CB4127300
Grommet
Loading…

↗
39
9011906126
Bolt, with washer
Loading…

↗
