Yamaha Outboard Parts - CONTROL - FL300AET (2008) | Flood Marine

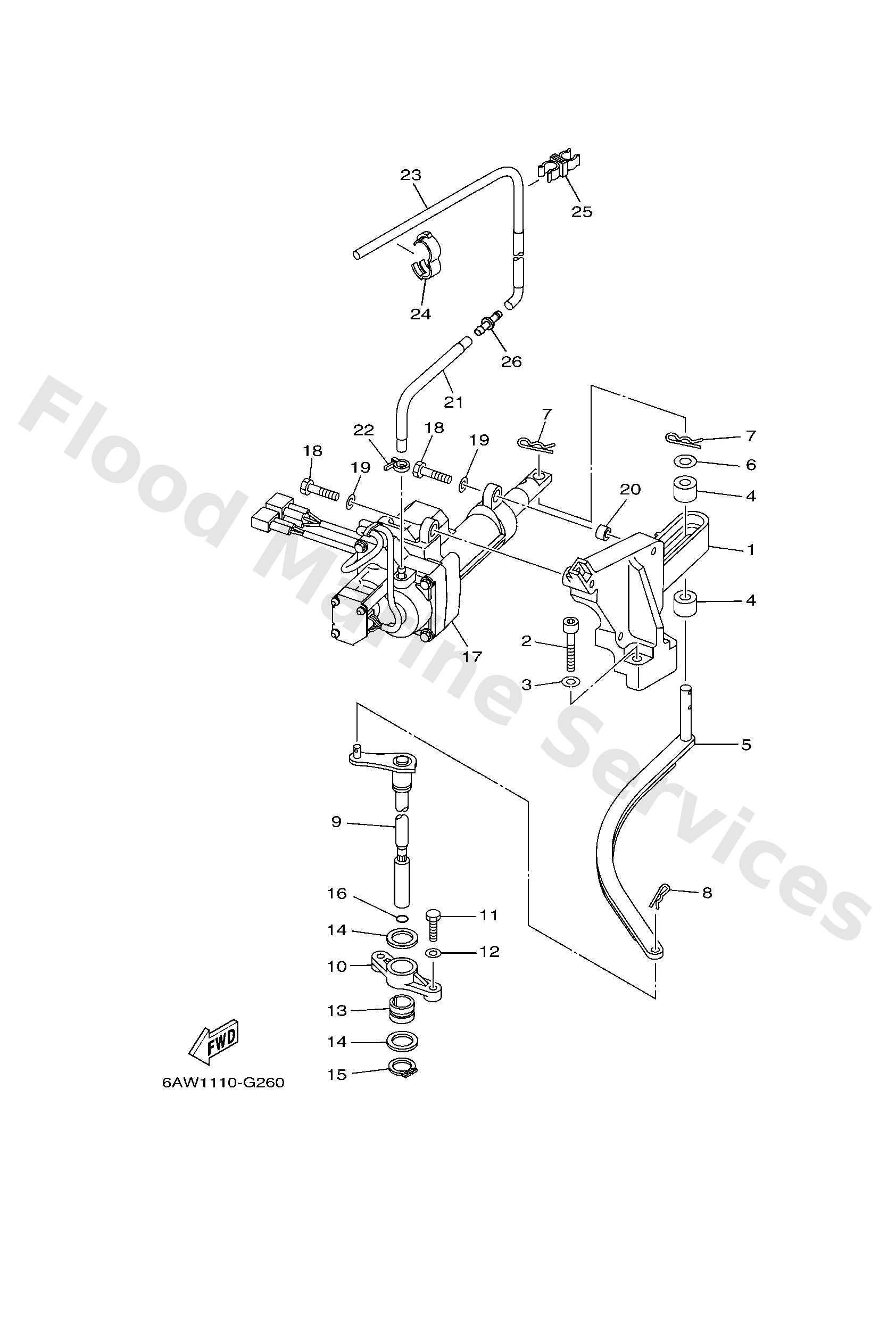

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6AW441760094
Bracket
Loading…

↗
2
9011008085
Bolt, hexagon socket head
Loading…

↗
3
9299008600
Washer, plain (663)
Loading…

↗
4
6AW4412200
Bushing, shift rod lever
Loading…

↗
5
6AW4412100
Lever, shift rod
Loading…

↗
6
9020111008
Washer, plate
Loading…

↗
7
90468180A0
Clip
Loading…

↗
8
9046818008
Clip 620436610000
Loading…

↗
9
6AW4412000 X(25.1")
Handle gear shift assembly
Loading…

↗
9
6AW4412010 U(30.1")
Handle gear shift assembly
Loading…

↗
10
6AW44118005B
Bracket
Loading…

↗
11
9709506025
Bolt
Loading…

↗
12
9299506600
Washer, plain (646)
Loading…

↗
13
9038019001
Bush, solid
Loading…

↗
14
9020219001
Washer, plate
Loading…

↗
15
9341019088
Circlip
Loading…

↗
16
9321009165
O-ring
Loading…

↗
17
6AW4820A00
Actuator unit
Loading…

↗
18
9708008030
Bolt, hexagon (fj1)
Loading…

↗
19
9290008600
Washer, plain (663)
Loading…

↗
20
9038708M31
Collar
Loading…

↗
21
6AW2431410
Pipe 4
Loading…

↗
22
9046511M10
Clamp
Loading…

↗
23
6AW2431400
Pipe 4
Loading…

↗
24
9046416001
Clamp
Loading…

↗
25
9046410M59
Clamp
Loading…

↗
26
6G82437600
Pipe, joint 1
Loading…

↗
