FL350AET (2016)
CONTROL

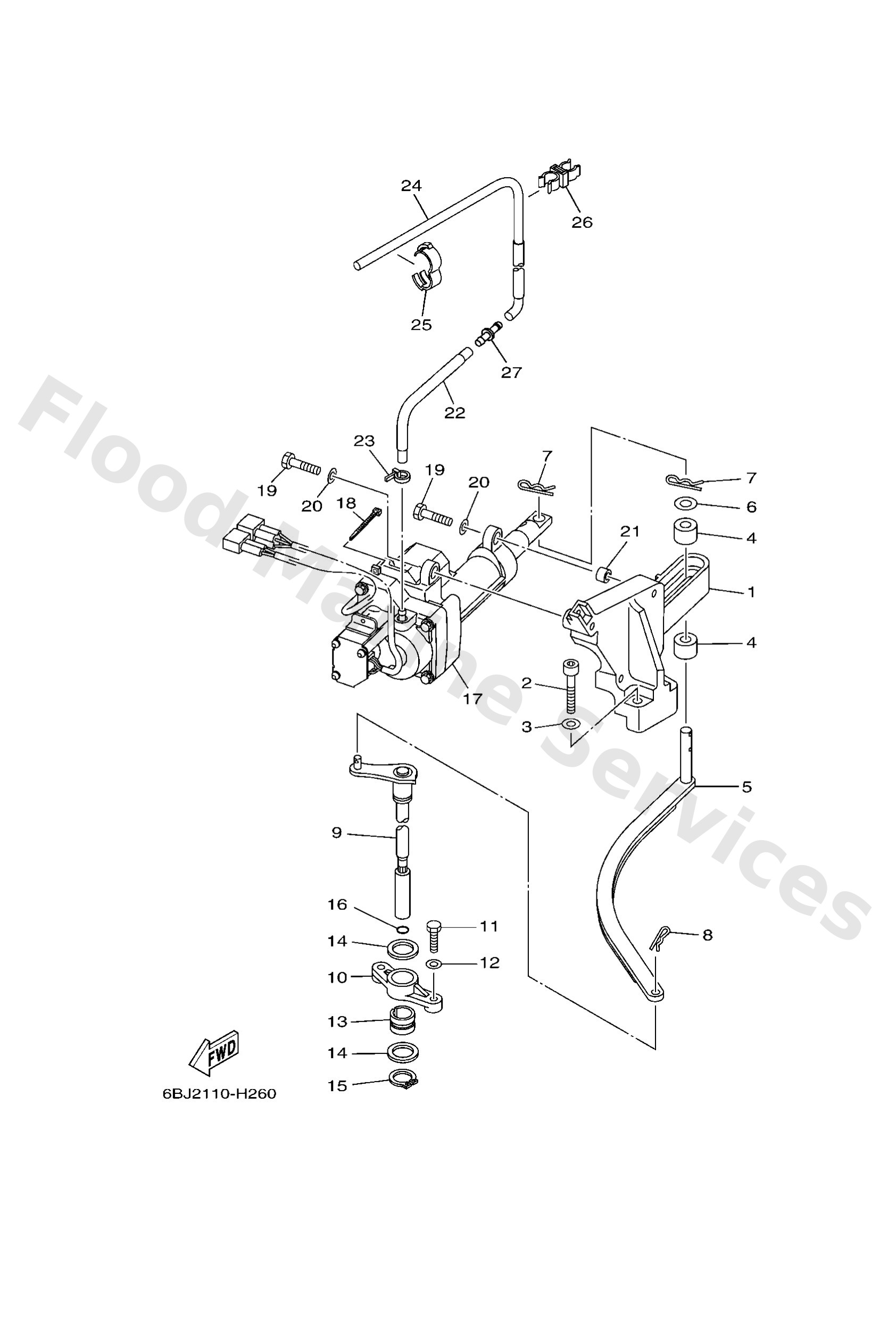

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6AW4417600
Bracket
Loading…
↗
2
9011008085
Bolt, hexagon socket head
Loading…
↗
3
9299008600
Washer, plain (663)
Loading…
↗
4
6AW4412200
Bushing, shift rod lever
Loading…
↗
5
6AW4412100
Lever, shift rod
Loading…
↗
6
9020111008
Washer, plate
Loading…
↗
7
90468180A0
Clip
Loading…
↗
8
9046818008
Clip 620436610000
Loading…
↗
9
6AW4412000
Handle gear shift assembly
Loading…
↗
10
6AW4411801
Bracket
Loading…
↗
11
9709506025
Bolt
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
9038019001
Bush, solid
Loading…
↗
14
9020219001
Washer, plate
Loading…
↗
15
9341019088
Circlip
Loading…
↗
16
9321009165
O-ring
Loading…
↗
17
6AW4820A11
Actuator unit
Loading…
↗
18
9046511M10
Clamp
Loading…
↗
19
9708008030
Bolt, hexagon (fj1)
Loading…
↗
20
9290008600
Washer, plain (663)
Loading…
↗
21
9038708M31
Collar
Loading…
↗
22
6AW2431410
Pipe 4
Loading…
↗
24
6AW2431400
Pipe 4
Loading…
↗
25
9046416001
Clamp
Loading…
↗
26
9046410M59
Clamp
Loading…
↗
27
6G82437600
Pipe, joint 1
Loading…
↗
