Yamaha Outboard Parts - CONTROL - FT25FET (2011) | Flood Marine

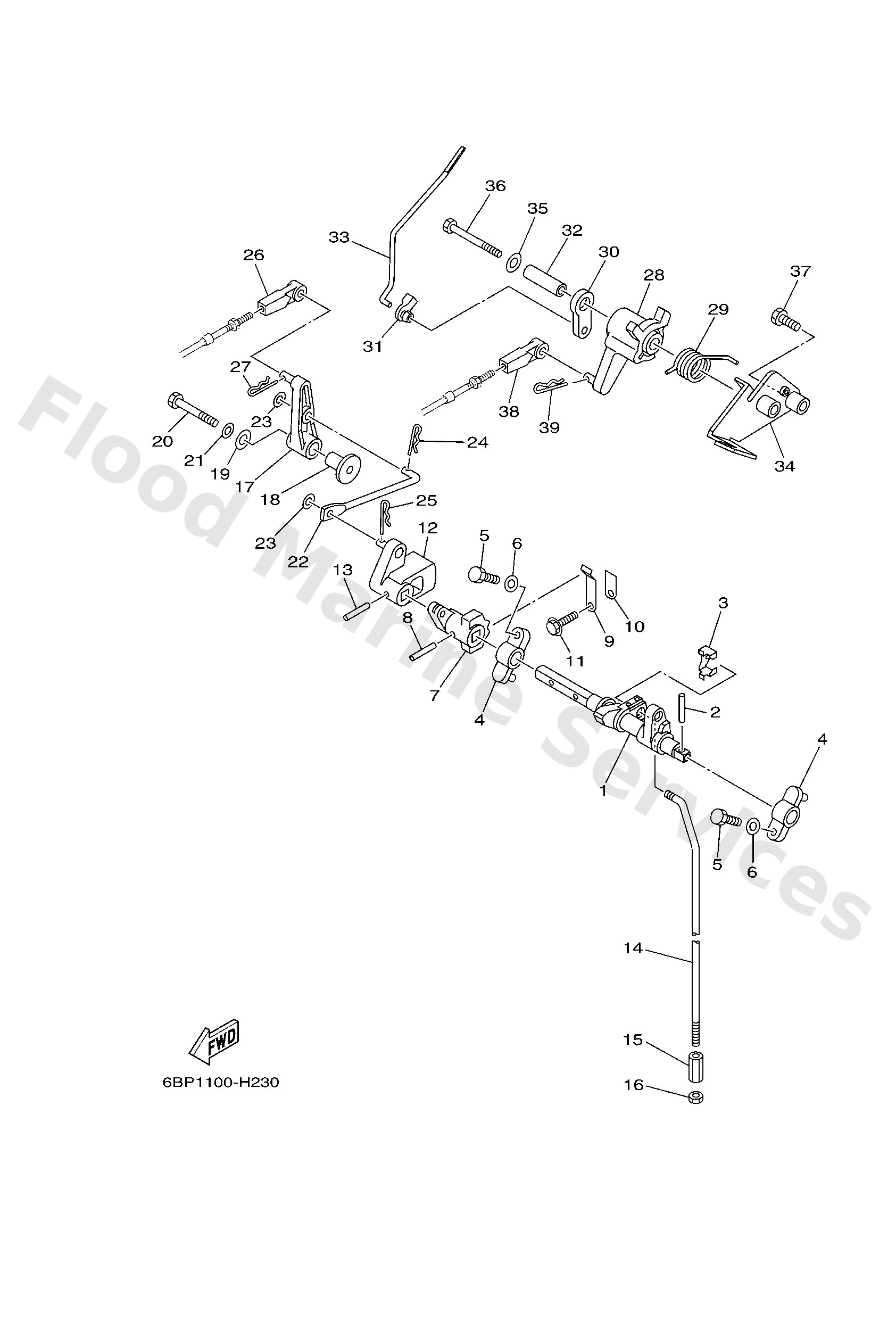

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6BL4412100
Lever, shift rod
Loading…

↗
2
9025403M05
Pin, spring
Loading…

↗
3
6AH2636400
End, cable 2
Loading…

↗
4
6G1416620194
Bracket
Loading…

↗
5
9709506020
Bolt(7u8)
Loading…

↗
6
9299506600
Washer, plain (646)
Loading…

↗
7
6BL4417300
Lever, shift control
Loading…

↗
9
65W4411600
Spring
Loading…

↗
10
66R4411400
Stopper
Loading…

↗
11
9589506014
Bolt, flange deep recess
Loading…

↗
12
6BL4414200
Joint
Loading…

↗
14
6BL4414300
Rod, shift
Loading…

↗
15
67C4414600
Connector, shift rod
Loading…

↗
16
9538006700
Nut
Loading…

↗
17
6BL4412500
Lever, shift rod
Loading…

↗
18
9038706M86
Collar
Loading…

↗
19
9020106M31
Washer (6a0)
Loading…

↗
20
9709506035
Bolt(j52)
Loading…

↗
22
6BL4419200
Link, shift rod
Loading…

↗
23
9020105M06
Washer, plate(61u)
Loading…

↗
24
9046810005
Pin, hair 6264123500
Loading…

↗
25
9046818001
Clip
Loading…

↗
26
6634834400
Cable end, remote control
Loading…

↗
27
9046818008
Clip 620436610000
Loading…

↗
28
6BL4163800
Pulley
Loading…

↗
29
9050820040
Spring, torsion
Loading…

↗
30
65W4128300
Lever, free accel.
Loading…

↗
31
6J84126200
Joint, choke lever
Loading…

↗
32
9038706139
Collar
Loading…

↗
33
6BL4121100
Link, accel.
Loading…

↗
34
6BL1457110
Bracket, throttle
Loading…

↗
36
9709506065
Bolt(jn5)
Loading…

↗
37
9709506025
Bolt
Loading…

↗
