Yamaha Outboard Parts - CONTROL - FT50CET (2007) | Flood Marine

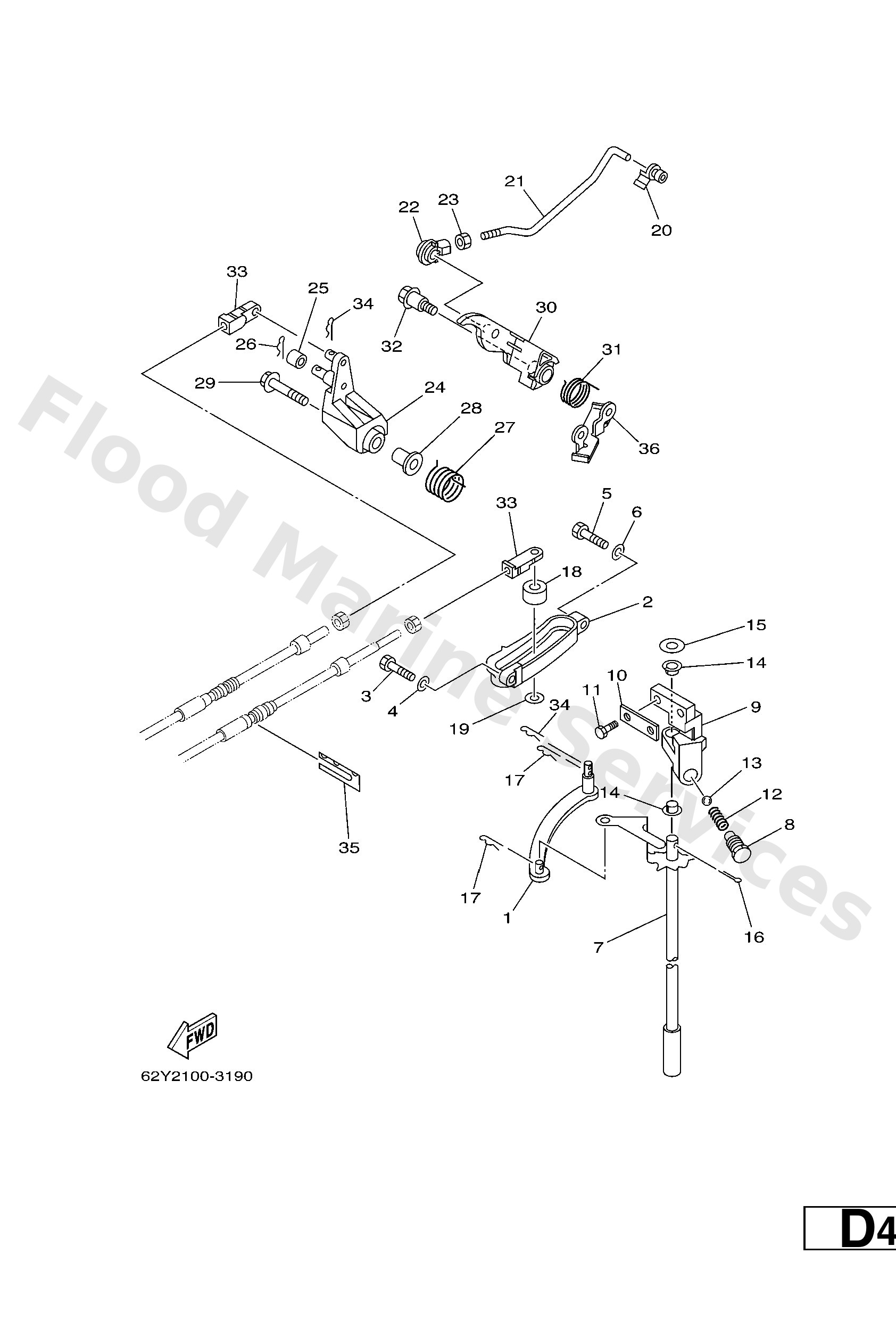

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
69W4412100
Lever, shift rod
Loading…

↗
2
62Y44117011S
Bracket
Loading…

↗
3
9709506020
Bolt(7u8)
Loading…

↗
4
9299506600
Washer, plain (646)
Loading…

↗
5
9709506025
Bolt
Loading…

↗
7
62Y4412001 L(21.0")
Handle gear shift assembly
Loading…

↗
8
62Y4271501
Bushing
Loading…

↗
9
62Y4411800
Bracket
Loading…

↗
10
62Y4411200
Stay, handle gear shift
Loading…

↗
12
9050112082
Spring 6484411600
Loading…

↗
13
9350104M02
Ball (697)
Loading…

↗
14
9038690M90
Bush(61a)
Loading…

↗
15
9020110M20
Washer, plate (663)
Loading…

↗
16
9149020015
Pin, cotter (648)
Loading…

↗
17
9046818008
Clip 620436610000
Loading…

↗
18
6884412200
Bushing, shift rod lever
Loading…

↗
19
9020207M07
Washer, plate (688)
Loading…

↗
20
6F54123700
Joint, link
Loading…

↗
21
62Y4124100
Rod, link
Loading…

↗
22
6624123701
Joint, link
Loading…

↗
23
9538005700
Nut (656)
Loading…

↗
24
62Y4215400
Lever, throttle control
Loading…

↗
25
62Y4217100
Bushing
Loading…

↗
26
9149016010
Pin, cotter
Loading…

↗
27
62Y4413500
Spring
Loading…

↗
28
9038706M45
Collar(62y)
Loading…

↗
29
9589506035
Bolt, flange(4nx)
Loading…

↗
30
62Y4233520
Lever, accel. control
Loading…

↗
31
62Y4411601
Spring
Loading…

↗
32
9010906M30
Bolt(62y)
Loading…

↗
33
6G82636300
End, wire 1
Loading…

↗
35
62Y4853800
Clamp, cable 1
Loading…

↗
36
62Y4215901
Stay
Loading…

↗
