FT50JET (2015)
CONTROL

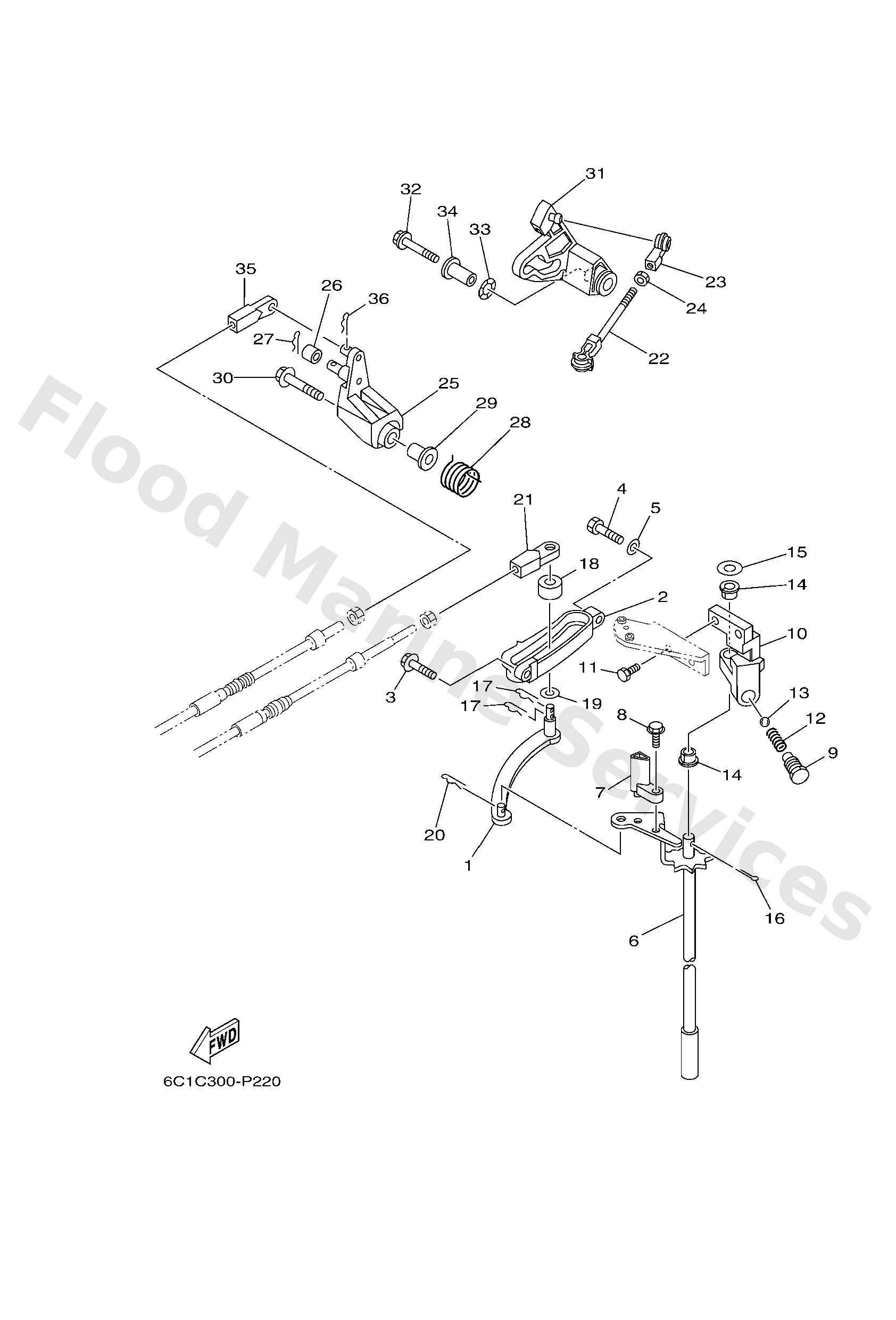

Diagram: CONTROL
Parts List
Reference
Description
Price
1
69W4412100
Lever, shift rod
Loading…
↗
2
62Y4411701
Bracket
Loading…
↗
3
9759506520
Bolt(7u8)
Loading…
↗
4
9709506025
Bolt
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
6C54412002
L(20.9")
Handle gear shift assembly
Loading…
↗
6
6C54412012
X(25.4")
Handle gear shift assembly
Loading…
↗
7
6C54412200
Bushing, shift rod lever
Loading…
↗
8
9759505514
Bolt, w/ plain
Loading…
↗
9
62Y4271501
Bushing
Loading…
↗
10
62Y441180094
Bracket
Loading…
↗
11
9010106054
Bolt(7u8)
Loading…
↗
12
9050112082
Spring 6484411600
Loading…
↗
13
9350104M02
Ball (697)
Loading…
↗
14
9038690M90
Bush(61a)
Loading…
↗
15
9020110M20
Washer, plate (663)
Loading…
↗
16
9149020015
Pin, cotter (648)
Loading…
↗
17
9046818008
Clip 620436610000
Loading…
↗
18
6884412200
Bushing, shift rod lever
Loading…
↗
19
9020207M07
Washer, plate (688)
Loading…
↗
21
69W4834400
Cable end, remote control
Loading…
↗
22
6884121101
Link, accel
Loading…
↗
23
6H44123700
Joint, link
Loading…
↗
24
9538005700
Nut (656)
Loading…
↗
25
62Y4215400
Lever, throttle control
Loading…
↗
26
6C54217100
Bushing
Loading…
↗
27
9149016010
Pin, cotter
Loading…
↗
28
62Y4413500
Spring
Loading…
↗
29
9038706M45
Collar(62y)
Loading…
↗
30
9011906126
Bolt, with washer
Loading…
↗
31
6C54233500
Lever, accel. control
Loading…
↗
32
9589506035
Bolt, flange(4nx)
Loading…
↗
33
9020610M04
Washer, wave (676)
Loading…
↗
34
9038706M82
Collar
Loading…
↗
