Yamaha Outboard Parts - CONTROL - FT60DET (2012) | Flood Marine

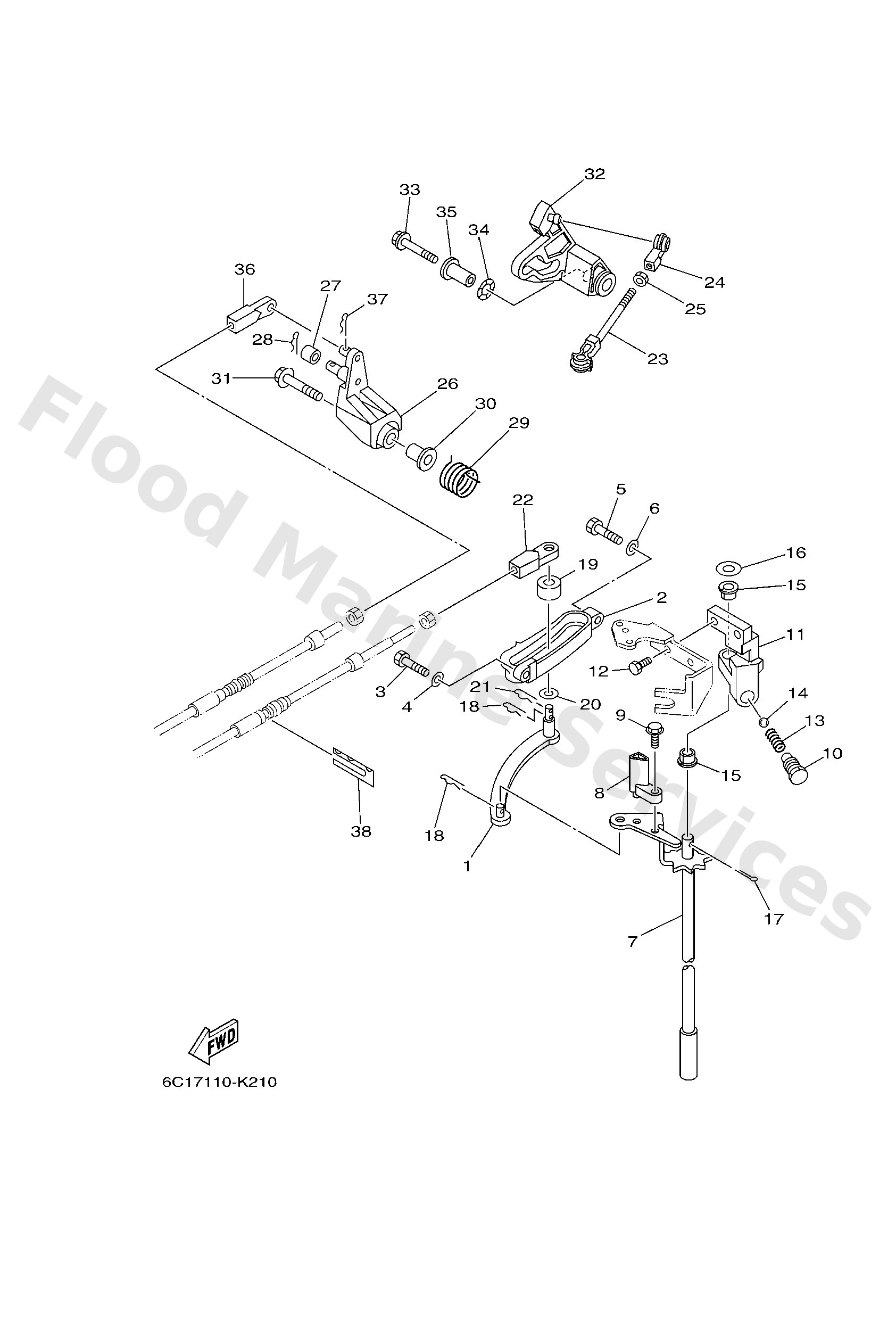

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
69W4412100
Lever, shift rod
Loading…

↗
2
62Y441170194
Bracket
Loading…

↗
3
9709506020
Bolt(7u8)
Loading…

↗
4
9299506600
Washer, plain (646)
Loading…

↗
5
9709506025
Bolt
Loading…

↗
7
6C54412001 L(20.7")
Handle gear shift assembly
Loading…

↗
7
6C54412011 X(25.2")
Handle gear shift assembly
Loading…

↗
8
6C54412200
Bushing, shift rod lever
Loading…

↗
9
9759505514
Bolt, w/ plain
Loading…

↗
10
62Y4271501
Bushing
Loading…

↗
11
62Y441180094
Bracket
Loading…

↗
12
9010106054
Bolt(7u8)
Loading…

↗
13
9050112082
Spring 6484411600
Loading…

↗
14
9350104M02
Ball (697)
Loading…

↗
15
9038690M90
Bush(61a)
Loading…

↗
16
9020110M20
Washer, plate (663)
Loading…

↗
17
9149020015
Pin, cotter (648)
Loading…

↗
18
9046818008
Clip 620436610000
Loading…

↗
19
6884412200
Bushing, shift rod lever
Loading…

↗
20
9020207M07
Washer, plate (688)
Loading…

↗
22
69W4834400
Cable end, remote control
Loading…

↗
23
6884121101
Link, accel
Loading…

↗
24
6H44123700
Joint, link
Loading…

↗
25
9538005700
Nut (656)
Loading…

↗
26
62Y4215400
Lever, throttle control
Loading…

↗
27
6C54217100
Bushing
Loading…

↗
28
9149016010
Pin, cotter
Loading…

↗
29
62Y4413500
Spring
Loading…

↗
30
9038706M45
Collar(62y)
Loading…

↗
31
9011906106
Bolt, with washer
Loading…

↗
32
6C54233500
Lever, accel. control
Loading…

↗
33
9589506035
Bolt, flange(4nx)
Loading…

↗
34
9020610M04
Washer, wave (676)
Loading…

↗
35
9038706M82
Collar
Loading…

↗
38
62Y4853800
Clamp, cable 1
Loading…

↗
