Yamaha Outboard Parts - CONTROL - FT60GET (2024) | Flood Marine

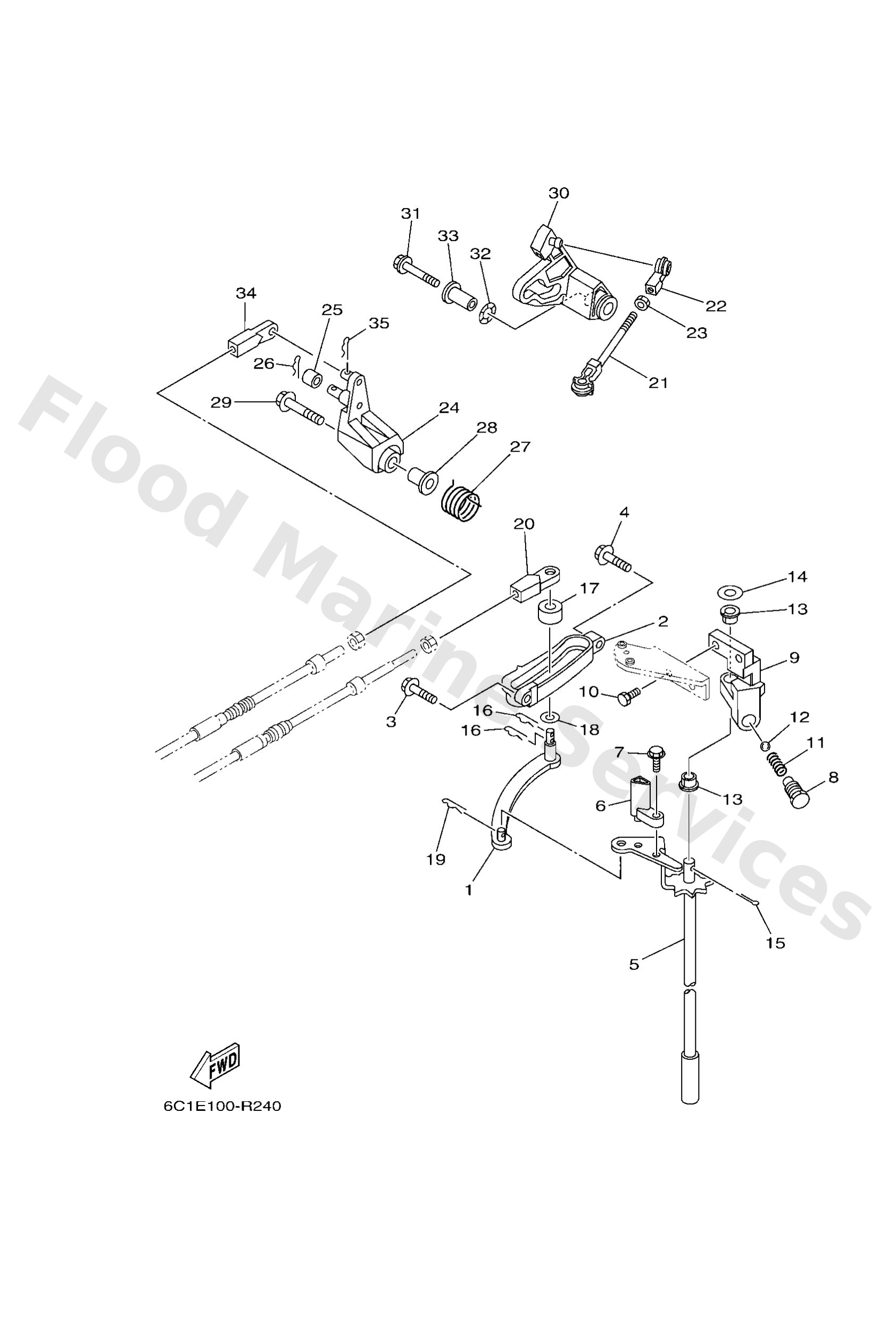

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
69W4412100
Lever, shift rod
Loading…

↗
2
62Y4411701
Bracket
Loading…

↗
3
97E9506520
Bolt, hexagon w/w deep recess
Loading…

↗
4
97E9506525
Bolt, hexagon w/w deep recess
Loading…

↗
5
6C54412013 X(25.4")
Handle gear shift assembly
Loading…

↗
5
6C54412003 L(20.9")
Handle gear shift assembly
Loading…

↗
6
6C54412200
Bushing, shift rod lever
Loading…

↗
7
9759505514
Bolt, w/ plain
Loading…

↗
8
62Y4271501
Bushing
Loading…

↗
9
62Y441180094
Bracket
Loading…

↗
10
9010106063
Bolt
Loading…

↗
11
9050112082
Spring 6484411600
Loading…

↗
12
9350104M02
Ball (697)
Loading…

↗
13
9038690M90
Bush(61a)
Loading…

↗
14
9020110M20
Washer, plate (663)
Loading…

↗
15
9149020015
Pin, cotter (648)
Loading…

↗
16
9046818008
Clip 620436610000
Loading…

↗
17
6884412200
Bushing, shift rod lever
Loading…

↗
18
9020207M07
Washer, plate (688)
Loading…

↗
20
69W4834400
Cable end, remote control
Loading…

↗
21
6884121101
Link, accel
Loading…

↗
22
6H44123700
Joint, link
Loading…

↗
23
9538005700
Nut (656)
Loading…

↗
24
62Y42154A0
Lever, throttle control
Loading…

↗
25
6C54217100
Bushing
Loading…

↗
26
9149016010
Pin, cotter
Loading…

↗
27
62Y4413500
Spring
Loading…

↗
28
9038706M45
Collar(62y)
Loading…

↗
29
9011906297
Bolt, with washer
Loading…

↗
30
6C54233500
Lever, accel. control
Loading…

↗
31
95D9506035
Bolt, flange deep recess
Loading…

↗
32
9020610M04
Washer, wave (676)
Loading…

↗
33
9038706M82
Collar
Loading…

↗
