FT9.9DEP (2002)
CONTROL

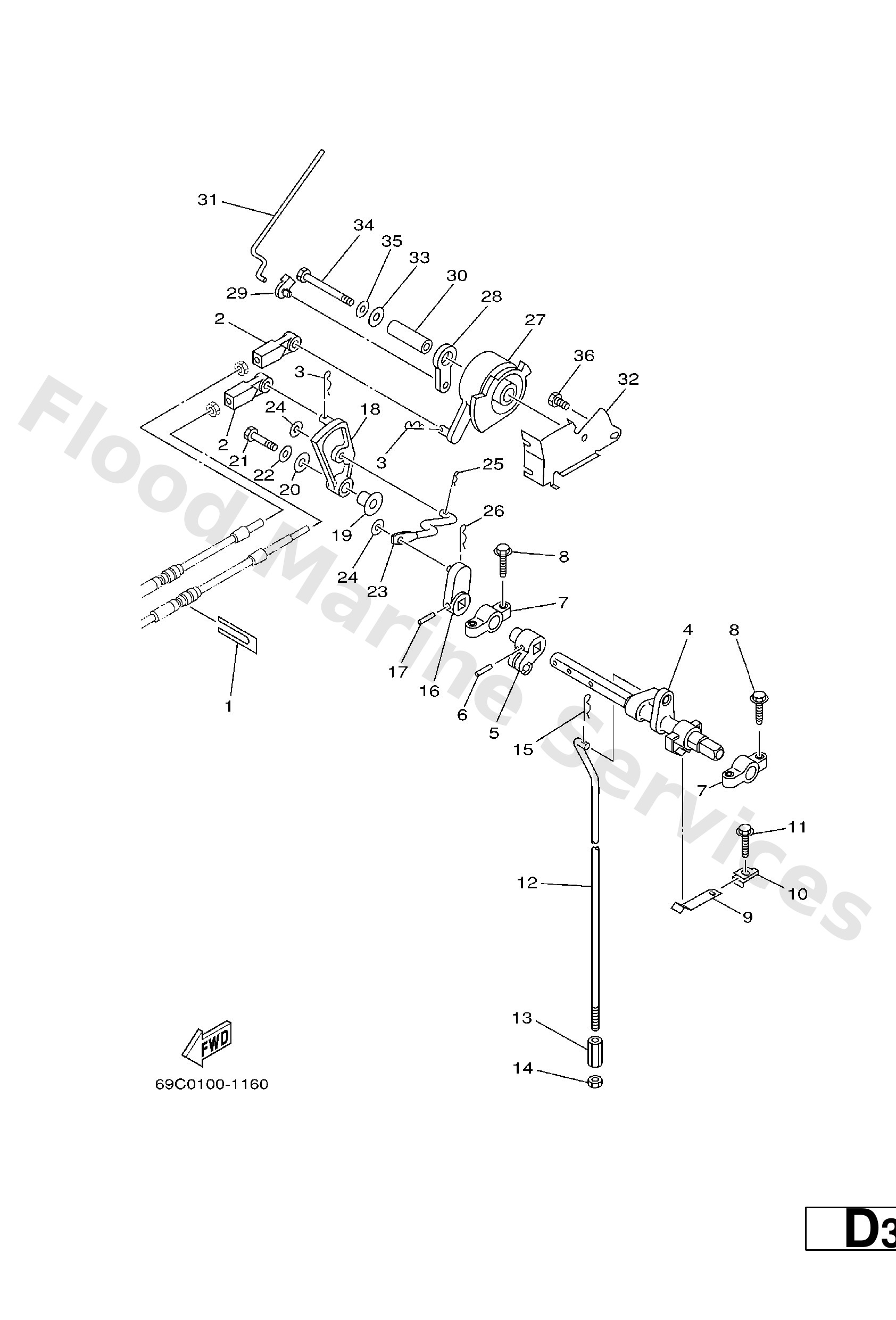

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6H3−48538−00
Clamp, cable
Loading…
↗
2
663−48344−00
Cable end, remote control
Loading…
↗
3
90468−18008
Clip 620436610000
Loading…
↗
4
65W−44121−00
Lever, shift rod
Loading…
↗
5
66M−44122−00
Bushing, shift rod lever
Loading…
↗
6
90254−03M05
Pin, spring
Loading…
↗
7
6F5−41662−00
Bracket 2
Loading…
↗
8
90109−06M81
Bolt
Loading…
↗
9
65W−44116−00
Spring
Loading…
↗
10
66R−44117−00
Bracket
Loading…
↗
11
90109−06M86
Bolt
Loading…
↗
12
66M−44143−10
L,X
Rod, shift
Loading…
↗
13
90170−06015
Connector, shift rod
Loading…
↗
14
95380−06700
Nut
Loading…
↗
16
65W−44142−00
Joint
Loading…
↗
18
65W−44125−00
Lever, shift rod
Loading…
↗
19
90387−06M29
Coller (6a0)
Loading…
↗
20
90201−06M31
Washer (6a0)
Loading…
↗
21
97095−06025
Bolt
Loading…
↗
22
92995−06600
Washer, plain (646)
Loading…
↗
23
66M−44192−00
Joint, rod 1
Loading…
↗
24
90201−05M06
Washer, plate(61u)
Loading…
↗
25
90468−10005
Pin, hair 6264123500
Loading…
↗
27
65W−41638−00
Pulley
Loading…
↗
28
65W−41283−00
Lever, free accel.
Loading…
↗
29
661−41262−02
Joint, choke lever
Loading…
↗
30
90387−06M08
Collar
Loading…
↗
31
66M−41211−00
Link, accel.
Loading…
↗
32
65W−14497−01
Stay, Throttle Wire
Loading…
↗
34
97095−06055
Bolt, hexagon w/w deep recess
Loading…
↗
36
97095−06010
Bolt
Loading…
↗
