Yamaha Outboard Parts - CONTROL - INTHDP/HDL (2014) | Flood Marine

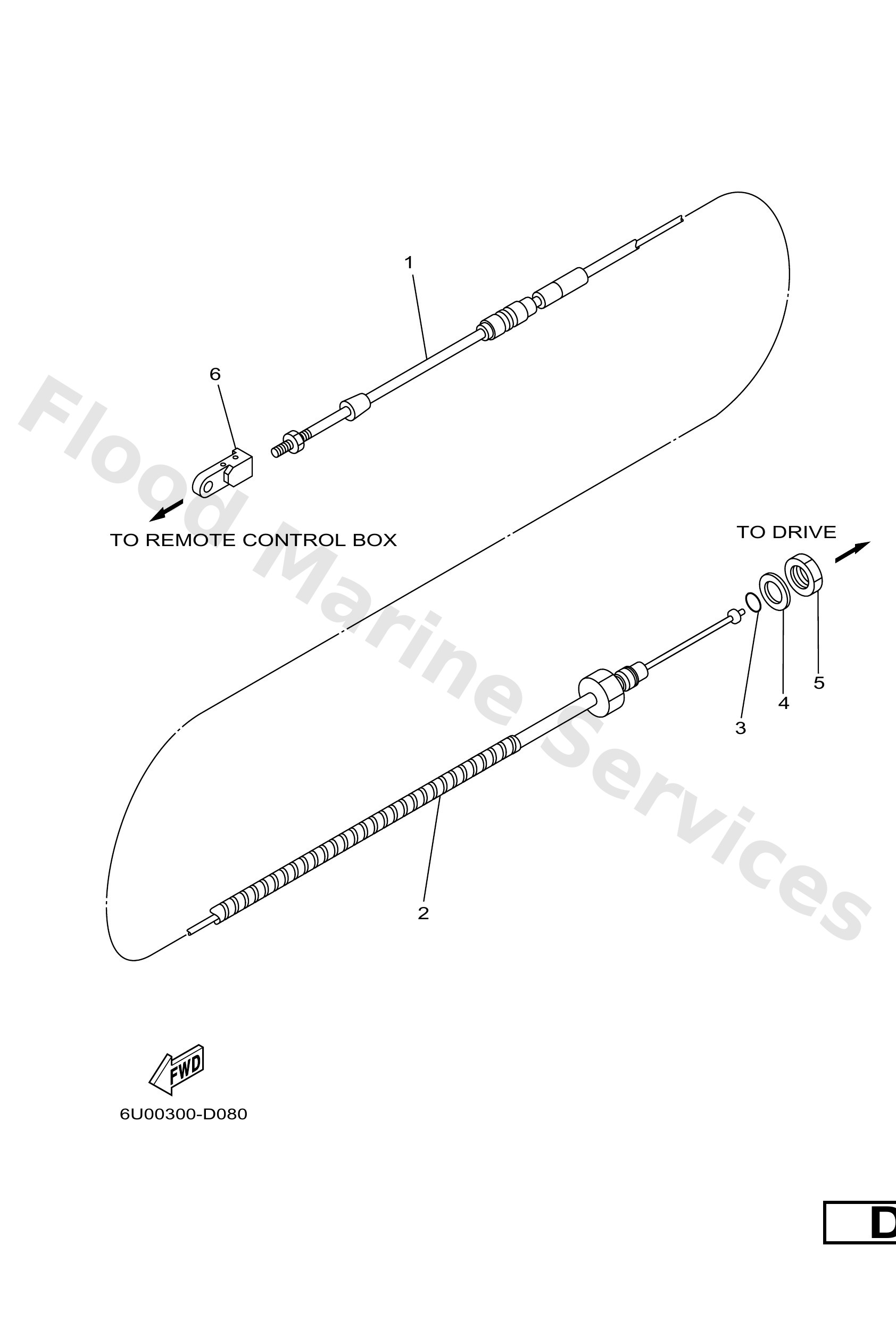

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6U04831110
Cable
Loading…

↗
2
9044608M37
Hose(6u0)
Loading…

↗
3
9321010107
O-ring (4g0)
Loading…

↗
4
9020113M05
Washer, plate(6u0)
Loading…

↗
5
9017012M28
Nut(6u0)
Loading…

↗
6
6G82636300
End, wire 1
Loading…

↗
