LZ200NETO (2007)
CONTROL

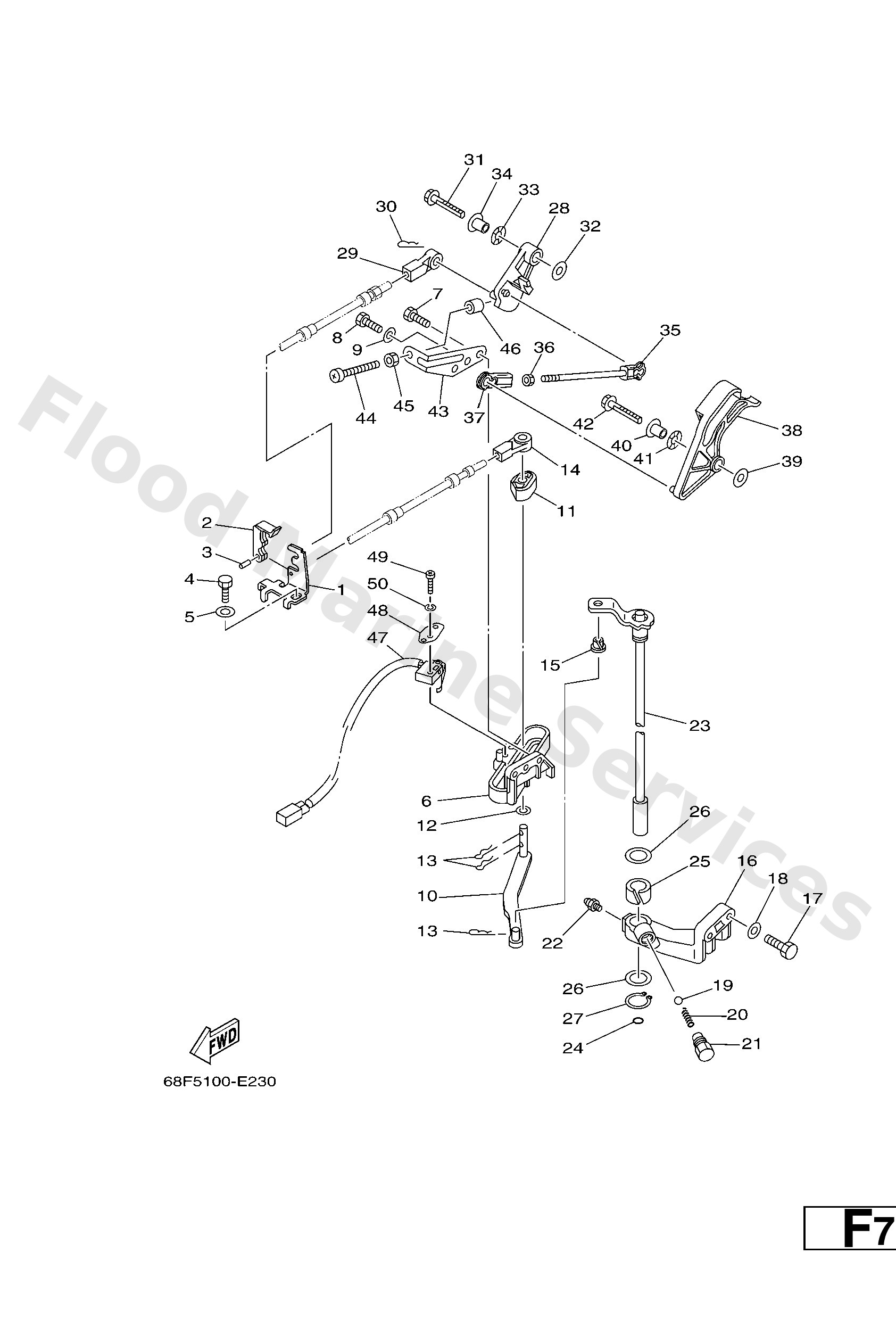

Diagram: CONTROL
Parts List
Reference
Description
Price
1
68F4853120
Bracket, remote control 1
Loading…
↗
2
6634853800
Clamp, cable 1
Loading…
↗
3
9169030010
Pin, spring (663)
Loading…
↗
4
9709508016
Bolt, hexagon deep recess
Loading…
↗
5
9299508600
Washer, plain (663)
Loading…
↗
6
68F44117011S
Bracket
Loading…
↗
7
9709506020
Bolt(7u8)
Loading…
↗
8
9701306012
Bolt(gh1)
Loading…
↗
9
9290306600
Washer, plain (646)
Loading…
↗
10
68F4412100
Lever, shift rod
Loading…
↗
11
68J4412201
Bushing, shift rod lever
Loading…
↗
12
9020208M20
Washer, plate (6e5)
Loading…
↗
13
9046818008
Clip 620436610000
Loading…
↗
14
6E54834400
Cable end, remote control
Loading…
↗
15
9038606M12
Bushing (688)
Loading…
↗
16
6E544118011S
Bracket 2
Loading…
↗
17
9701308030
Bolt
Loading…
↗
18
9290308600
Washer, plain (663)
Loading…
↗
19
9350104M02
Ball (697)
Loading…
↗
20
9050112082
Spring 6484411600
Loading…
↗
21
6484271500
Bushing 2
Loading…
↗
22
9370006M03
Nipple, grease(6a1)
Loading…
↗
23
6E54412003
L(20.3")
Handle gear shift assembly
Loading…
↗
23
6E54412023
X(25.3")
Handle gear shift assembly
Loading…
↗
24
9321009165
O-ring
Loading…
↗
25
9038616M66
Bush(6e5)
Loading…
↗
26
9020216061
Washer, plate(663)
Loading…
↗
27
9341016006
Circlip
Loading…
↗
28
67H4163200
Lever, magneto control
Loading…
↗
31
9011906MA4
Bolt, with washer
Loading…
↗
32
9020106M31
Washer (6a0)
Loading…
↗
33
9020610M04
Washer, wave (676)
Loading…
↗
34
9038706M29
Coller (6a0)
Loading…
↗
35
61A4123700
Joint, link
Loading…
↗
36
9538005600
Nut, hexagon (663)
Loading…
↗
37
6824123700
Joint, link 2
Loading…
↗
38
68F4121300
Cam, accel.
Loading…
↗
43
68F4274400
Stay
Loading…
↗
44
9015706M11
Screw, pan head(697)
Loading…
↗
45
9538006600
Nut(661)
Loading…
↗
46
6884419400
Cap
Loading…
↗
47
60V8259F00
Switch assembly
Loading…
↗
48
61A8258801
Plate
Loading…
↗
49
9788504016
Screw, panhead (796)
Loading…
↗
50
9299504100
Ybs67-4 washer, spring
Loading…
↗
