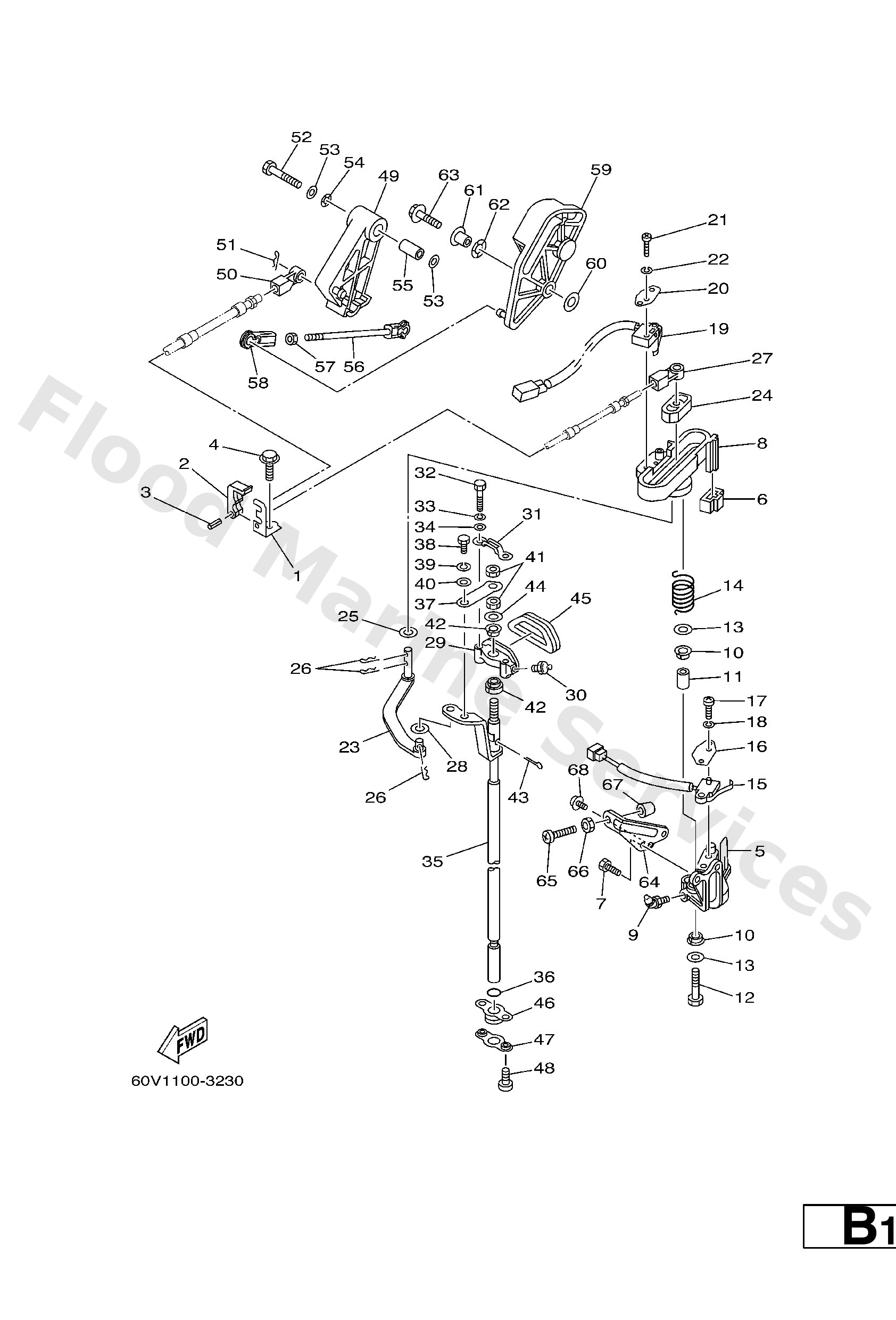

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
60V−48531−00
Bracket, Remote Control 1
Loading…

↗
2
663−48538−00
Clamp, cable 1
Loading…

↗
3
91690−30010
Pin, spring (663)
Loading…

↗
4
90109−06M80
Bolt
Loading…

↗
5
60V−44117−00−1S
Bracket
Loading…

↗
6
60V−44194−00
Cap
Loading…

↗
7
97095−06020
Bolt(7u8)
Loading…

↗
8
60V−44176−00−1S
Bracket
Loading…

↗
9
93700−06M01
Nipple, grease(61a)
Loading…

↗
10
90386−12069
Bush(666)
Loading…

↗
11
90387−08M09
Collar(61a)
Loading…

↗
12
97095−08035
Bolt(70w)
Loading…

↗
13
92995−08200
Ybs66-8 washer, plain
Loading…

↗
14
90508−20M31
Spring, torsion(61a)
Loading…

↗
15
61A−8259F−00
Switch assembly
Loading…

↗
16
61A−82588−01
Plate
Loading…

↗
17
97885−04016
Screw, panhead (796)
Loading…

↗
18
92995−04100
Ybs67-4 washer, spring
Loading…

↗
19
60V−8259F−00
Switch assembly
Loading…

↗
23
61A−44121−00
Lever, shift rod
Loading…

↗
24
68J−44122−01
Bushing, shift rod lever
Loading…

↗
25
90202−08M20
Washer, plate (6e5)
Loading…

↗
26
90468−18008
Clip 620436610000
Loading…

↗
27
6E5−48344−00
Cable end, remote control
Loading…

↗
28
90202−06007
Washer plate 626441880000
Loading…

↗
29
61A−44118−00−8D
Bracket
Loading…

↗
30
93700−06M03
Nipple, grease(6a1)
Loading…

↗
31
61A−44116−00
Spring
Loading…

↗
32
97095−06030
Bolt(jf7)
Loading…

↗
33
92995−06100
Washer(6a1)
Loading…

↗
34
92995−06600
Washer, plain (646)
Loading…

↗
35
61A−44120−22 X
Handle gear shift assembly
Loading…

↗
35
61A−44120−32 U
Handle gear shift assembly
Loading…

↗
36
93210−09165
O-ring
Loading…

↗
37
61A−44112−00
Stay, handle gear shift
Loading…

↗
38
97013−06012
Bolt(gh1)
Loading…

↗
39
92903−06100
Washer(6a1)
Loading…

↗
40
92903−06600
Washer, plain (646)
Loading…

↗
41
95313−08600
Nut(6l2)
Loading…

↗
42
90386−90M90
Bush(61a)
Loading…

↗
43
91490−20012
Pin, cotter (648)
Loading…

↗
44
90201−09M02
Washer, plate(61a)
Loading…

↗
45
61A−15315−00
Seal, crankcase
Loading…

↗
46
61A−42724−00
Grommet
Loading…

↗
47
61A−44138−00
Washer
Loading…

↗
48
97885−06008
Screw, pan head(6a3)
Loading…

↗
49
65L−41632−01
Lever, magneto control
Loading…

↗
52
97013−08045
Bolt
Loading…

↗
53
92990−08200
Ybs66-8 washer, plain
Loading…

↗
54
90206−12M00
Washer, wave (676)
Loading…

↗
55
90387−08M16
Collar
Loading…

↗
56
61A−41237−00
Joint, link
Loading…

↗
57
95380−05600
Nut, hexagon (663)
Loading…

↗
58
6H4−41237−00
Joint, link
Loading…

↗
59
60V−41230−00
Cam accelerator comp
Loading…

↗
60
90201−06M31
Washer (6a0)
Loading…

↗
61
90387−06M29
Coller (6a0)
Loading…

↗
62
90206−10M04
Washer, wave (676)
Loading…

↗
63
90119−06MA4
Bolt, with washer
Loading…

↗
64
69L−42744−00
Stay
Loading…

↗
65
97885−06030
Screw, pan head(6e0)
Loading…

↗
66
95380−06600
Nut(661)
Loading…

↗
67
688−44194−00
Cap
Loading…

↗
68
90159−05M25
Screw,pan head (646)
Loading…

↗
