Yamaha Outboard Parts - CONTROL - ME730TIH (2006) | Flood Marine

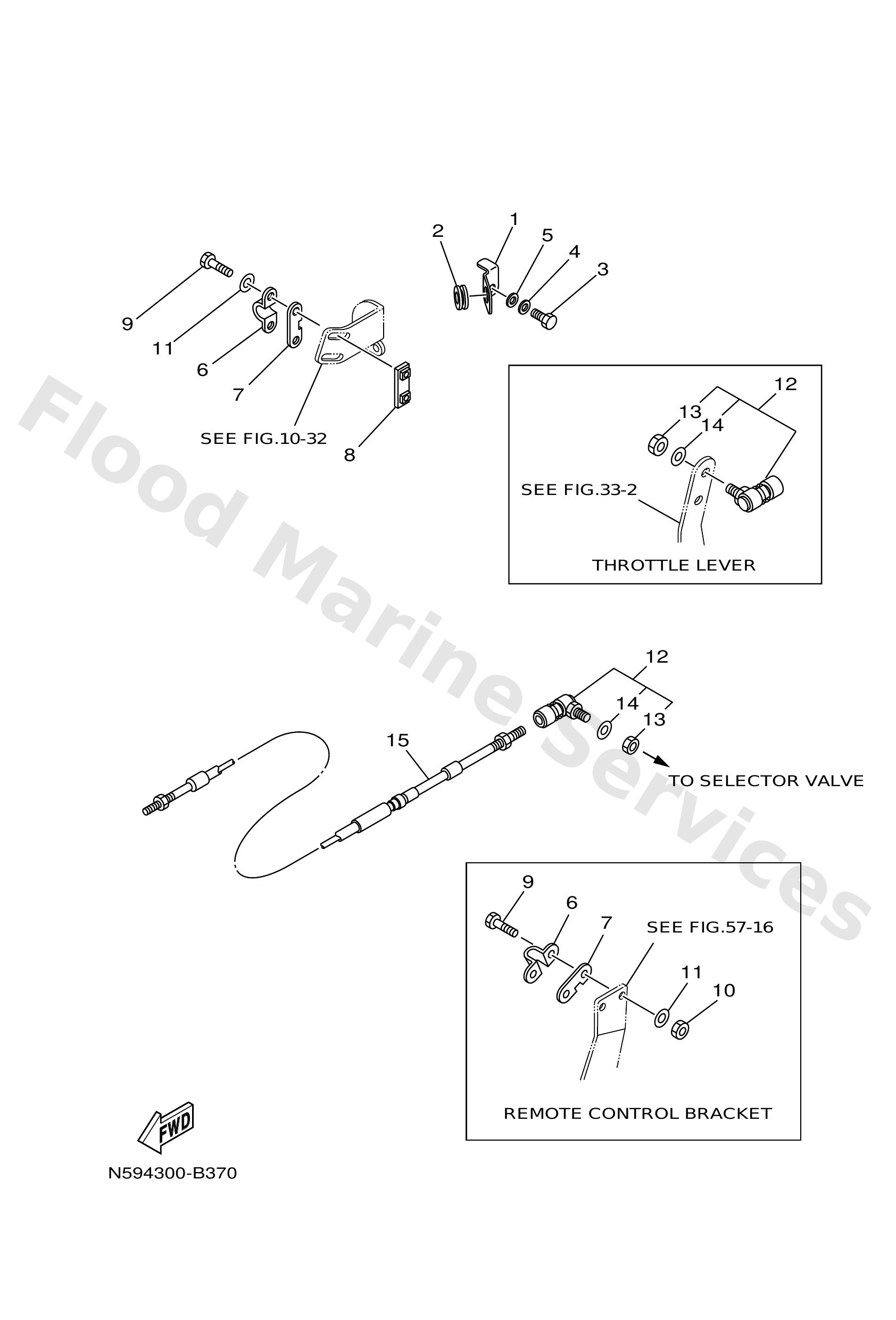

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
N591415500
Guide, cable
Loading…

↗
2
9048020527
Grommet(87a)
Loading…

↗
4
3
-
Loading…

↗
4
9290708600
Washer(6ta)
Loading…

↗
6
7054853801
Clamp, cable 1
Loading…

↗
7
7014835060 UR
Cable, Remote Control L=27F
Loading…

↗
7
7014835030 UR
Cable, Remote Control L=24F
Loading…

↗
7
7
6Tc-41661-00
Loading…

↗
9
9014305004
Screw
Loading…

↗
9
7014835000 UR
Cable, Remote Control L=21F
Loading…

↗
9
5
90480-13M24
Loading…

↗
10
9530705600
Nut, hexagon
Loading…

↗
11
9290705600
Washer(1rw)
Loading…

↗
12
7054833060
Cable end assembly (exp)
Loading…

↗
12
14 WASHER, INTERNAL TOOTH 1
D Om Te
Loading…

↗
13
9570706300
Nut, nylon
Loading…

↗
14
8
-
Loading…

↗
15
7014831010 UR
Cable, Remote Control L=6F
Loading…

↗
15
7014831060 UR
Cable, Remote Control L=9F
Loading…

↗
15
7014832000 UR
Cable, Remote Control L=12F
Loading…

↗
15
7014832050 UR
Cable, Remote Control L=15F
Loading…

↗
15
7014832090 UR
Cable, Remote Control L=18F
Loading…

↗
