XF375NSA (2018)
CONTROL

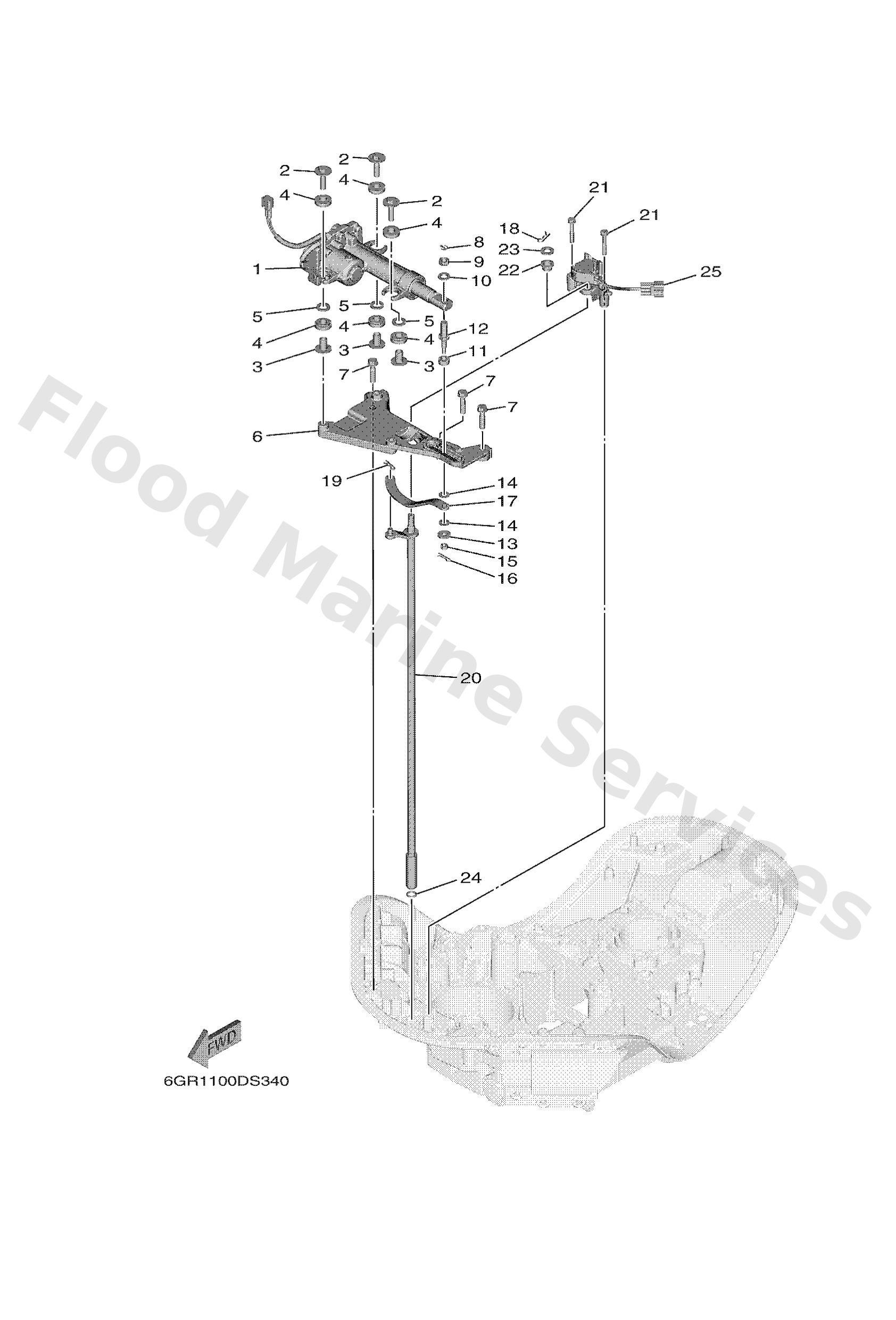

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6GR4820A00
Actuator unit
Loading…
↗
2
9011908175
Bolt, with washer
Loading…
↗
3
9038708104
Collar
Loading…
↗
4
6CE8556400
Grommet
Loading…
↗
5
9020112064
Washer, plate
Loading…
↗
6
6GR4411700
Bracket
Loading…
↗
7
9757508535
Bolt(70w)
Loading…
↗
8
9149020015
Pin, cotter (648)
Loading…
↗
9
9538010700
Nut (682)
Loading…
↗
10
9020110048
Washer, plate
Loading…
↗
11
6CE4412200
Bushing, shift rod lever
Loading…
↗
12
6GR4219500
Pin, joint 1
Loading…
↗
13
9020106068
Washer,plate (6k8)
Loading…
↗
14
9020208M41
Washer, plate(6t4)
Loading…
↗
15
9018506M07
Nut, self-locking(6e5)
Loading…
↗
16
9046818008
Clip 620436610000
Loading…
↗
17
6GR4412100
Lever, shift rod
Loading…
↗
18
90468180A0
Clip
Loading…
↗
20
6GR4412000
Handle gear shift assembly
Loading…
↗
21
9759506540
Bolt, hexagon w/w deep recess
Loading…
↗
22
9038612M61
Bush(6j8)
Loading…
↗
23
9020110M63
Washer, plate
Loading…
↗
24
9321011073
O-ring (p95)
Loading…
↗
25
6GR6830300
Sensor assembly
Loading…
↗
