Yamaha Outboard Parts - CONTROL - XF425NSA2 (2022) | Flood Marine

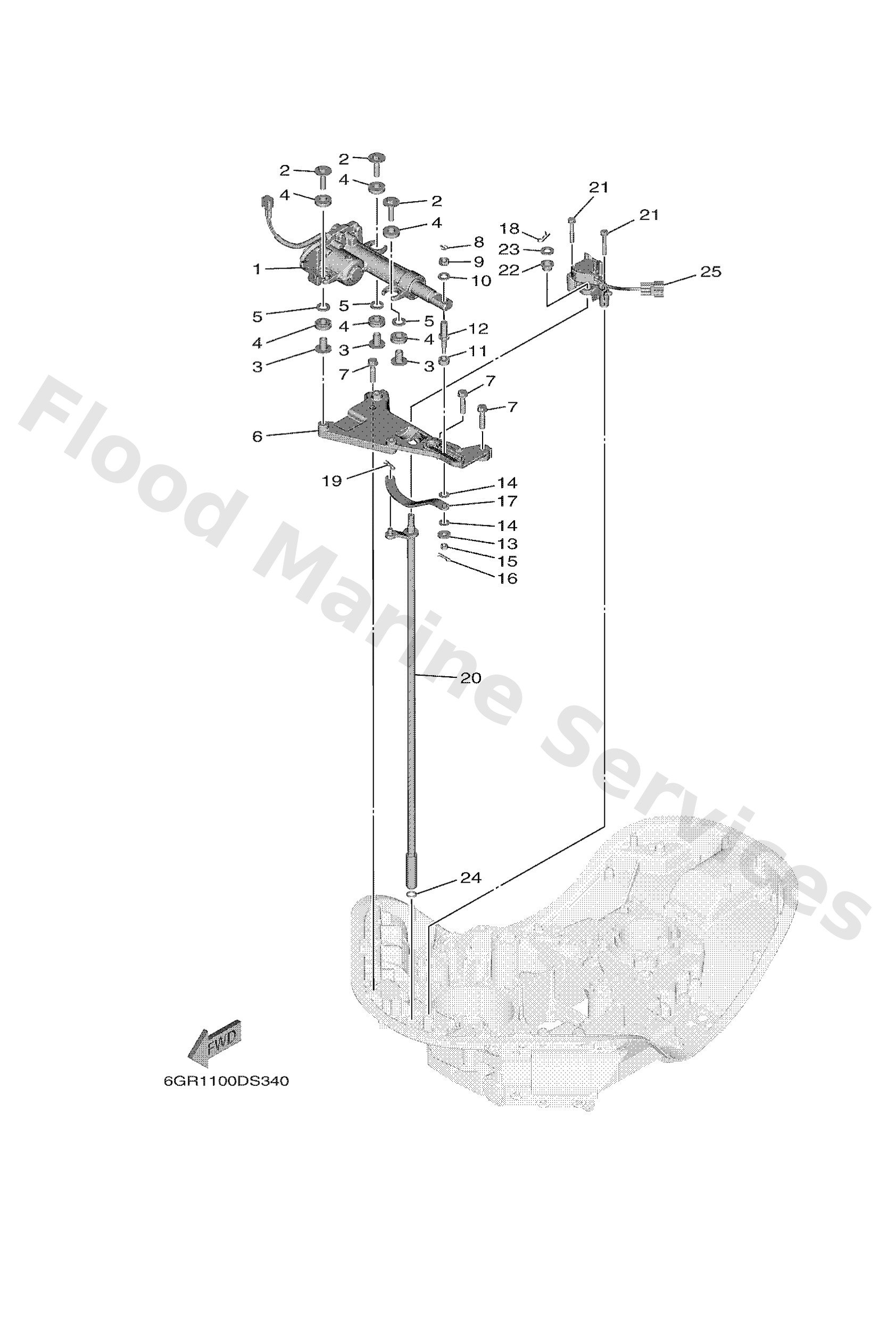

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6GR4820A01
Actuator unit
Loading…

↗
2
9011908175
Bolt, with washer
Loading…

↗
3
9038708104
Collar
Loading…

↗
4
6CE8556400
Grommet
Loading…

↗
5
9020112064
Washer, plate
Loading…

↗
6
6GR4411700
Bracket
Loading…

↗
7
97E7508535
Bolt, hexagon w/w deep recess
Loading…

↗
8
9149020015
Pin, cotter (648)
Loading…

↗
9
9538010700
Nut (682)
Loading…

↗
10
9020110048
Washer, plate
Loading…

↗
11
6CE4412200
Bushing, shift rod lever
Loading…

↗
12
6GR4219500
Pin, joint 1
Loading…

↗
13
9020106068
Washer,plate (6k8)
Loading…

↗
14
9020208M41
Washer, plate(6t4)
Loading…

↗
15
9018506M07
Nut, self-locking(6e5)
Loading…

↗
16
9046818008
Clip 620436610000
Loading…

↗
17
6GR4412100
Lever, shift rod
Loading…

↗
18
90468180A0
Clip
Loading…

↗
20
6GR4412001
Handle gear shift assembly
Loading…

↗
21
97E9506540
Bolt, hexagon w/w deep recess
Loading…

↗
22
9038612M61
Bush(6j8)
Loading…

↗
23
9020110081
Washer, plate
Loading…

↗
24
9321011073
O-ring (p95)
Loading…

↗
25
6GR6830300
Sensor assembly
Loading…

↗
