Z200PETO (2003)
CONTROL

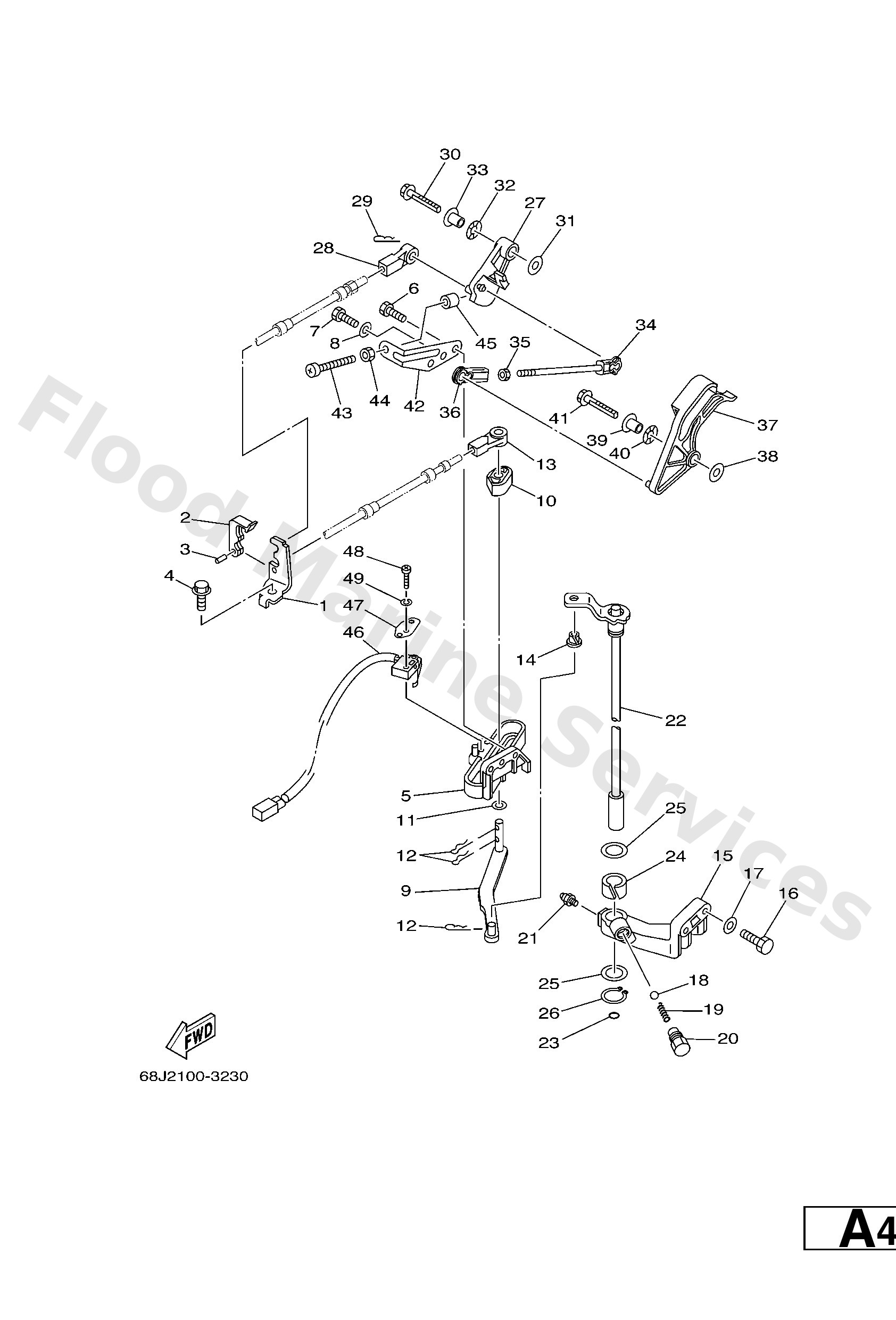

Diagram: CONTROL
Parts List
Reference
Description
Price
1
68F4853100
-
Loading…
↗
2
6634853800
Clamp, cable 1
Loading…
↗
3
9169030010
Pin, spring (663)
Loading…
↗
4
9010906M80
Bolt
Loading…
↗
5
68F44117011S
Bracket
Loading…
↗
6
9709506020
Bolt(7u8)
Loading…
↗
7
9701306012
Bolt(gh1)
Loading…
↗
8
9290306600
Washer, plain (646)
Loading…
↗
9
68F4412100
Lever, shift rod
Loading…
↗
10
68J4412201
Bushing, shift rod lever
Loading…
↗
11
9020208M20
Washer, plate (6e5)
Loading…
↗
12
9046818008
Clip 620436610000
Loading…
↗
13
6E54834400
Cable end, remote control
Loading…
↗
14
9038606M12
Bushing (688)
Loading…
↗
15
6E544118011S
Bracket 2
Loading…
↗
16
9701308030
Bolt
Loading…
↗
17
9290308600
Washer, plain (663)
Loading…
↗
18
9350104M02
Ball (697)
Loading…
↗
19
9050112082
Spring 6484411600
Loading…
↗
20
6484271500
Bushing 2
Loading…
↗
21
9370006M03
Nipple, grease(6a1)
Loading…
↗
22
6E54412003
L
Handle gear shift assembly
Loading…
↗
23
9321009165
O-ring
Loading…
↗
24
9038616M66
Bush(6e5)
Loading…
↗
25
9020216061
Washer, plate(663)
Loading…
↗
26
9341016006
Circlip
Loading…
↗
27
67H4163200
Lever, magneto control
Loading…
↗
30
9011906MA4
Bolt, with washer
Loading…
↗
31
9020106M31
Washer (6a0)
Loading…
↗
32
9020610M04
Washer, wave (676)
Loading…
↗
33
9038706M29
Coller (6a0)
Loading…
↗
34
61A4123700
Joint, link
Loading…
↗
35
9538005600
Nut, hexagon (663)
Loading…
↗
36
6824123700
Joint, link 2
Loading…
↗
37
68F4121300
Cam, accel.
Loading…
↗
42
68F4274400
Stay
Loading…
↗
43
9015706M11
Screw, pan head(697)
Loading…
↗
44
9538006600
Nut(661)
Loading…
↗
45
6884419400
Cap
Loading…
↗
46
68F8259F00
Switch assembly
Loading…
↗
47
61A8258801
Plate
Loading…
↗
48
9788504016
Screw, panhead (796)
Loading…
↗
49
9299504100
Ybs67-4 washer, spring
Loading…
↗
