Z250FETO (2006)
CONTROL

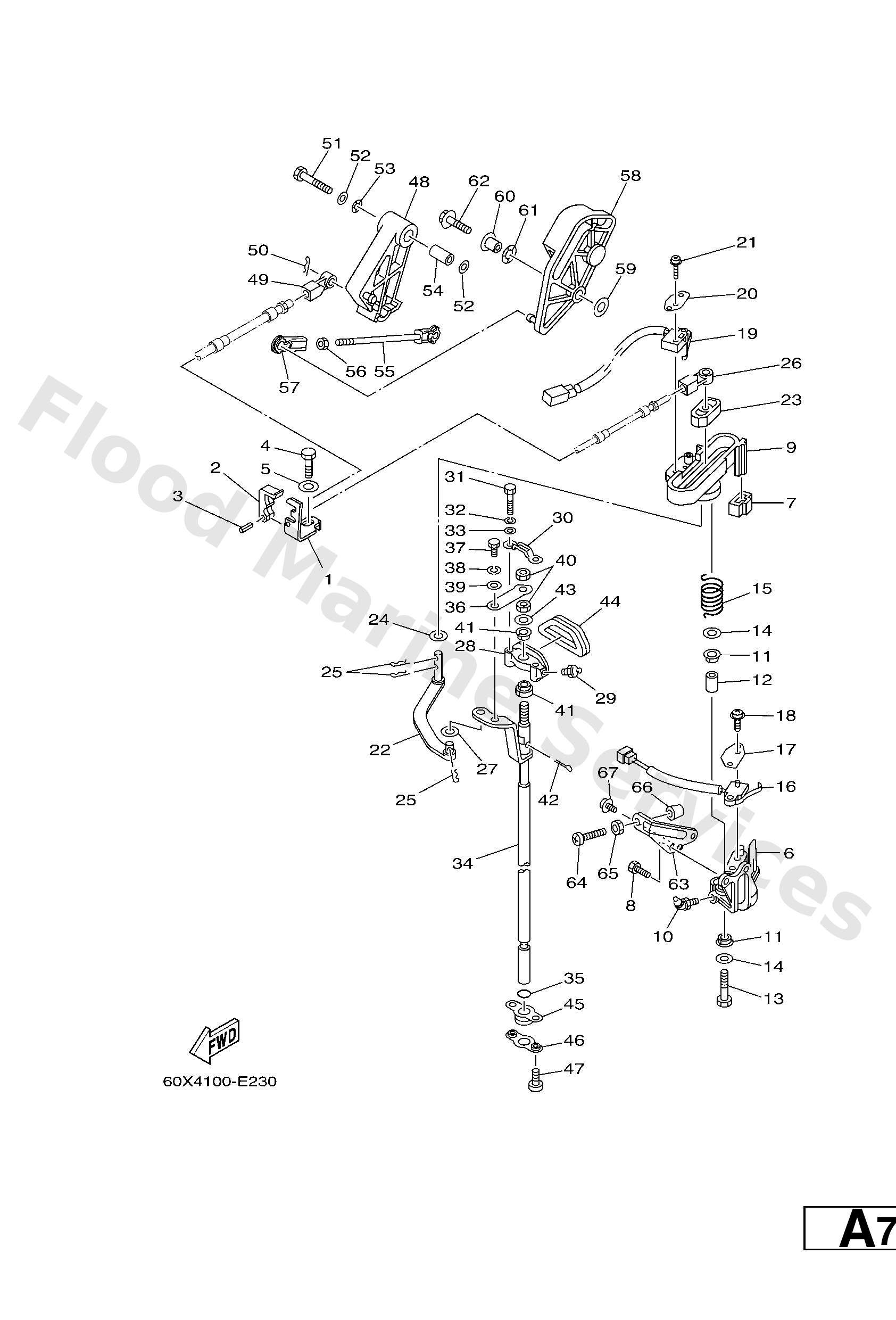

Diagram: CONTROL
Parts List
Reference
Description
Price
1
60V4853120
Bracket, remote control 1
Loading…
↗
2
6634853800
Clamp, cable 1
Loading…
↗
3
9169030010
Pin, spring (663)
Loading…
↗
4
9709508016
Bolt, hexagon deep recess
Loading…
↗
5
9299508600
Washer, plain (663)
Loading…
↗
6
6D044117001S
Bracket
Loading…
↗
7
60V4419400
Cap
Loading…
↗
8
9709506020
Bolt(7u8)
Loading…
↗
9
60V44176001S
Bracket
Loading…
↗
10
9370006M01
Nipple, grease(61a)
Loading…
↗
11
9038612069
Bush(666)
Loading…
↗
12
9038708M09
Collar(61a)
Loading…
↗
13
9709508035
Bolt(70w)
Loading…
↗
14
9299508200
Ybs66-8 washer, plain
Loading…
↗
15
9050820M31
Spring, torsion(61a)
Loading…
↗
16
61A8259F00
Switch assembly
Loading…
↗
17
61A8258801
Plate
Loading…
↗
18
9798504116
Screw, with washer(61b)
Loading…
↗
19
60V8259F00
Switch assembly
Loading…
↗
22
61A4412100
Lever, shift rod
Loading…
↗
23
68J4412201
Bushing, shift rod lever
Loading…
↗
24
9020208M20
Washer, plate (6e5)
Loading…
↗
25
9046818008
Clip 620436610000
Loading…
↗
26
6E54834400
Cable end, remote control
Loading…
↗
27
9020206007
Washer plate 626441880000
Loading…
↗
28
61A44118008D
Bracket
Loading…
↗
29
9370006M03
Nipple, grease(6a1)
Loading…
↗
30
61A4411600
Spring
Loading…
↗
31
9709506030
Bolt(jf7)
Loading…
↗
32
9299506100
Washer(6a1)
Loading…
↗
33
9299506600
Washer, plain (646)
Loading…
↗
34
66K4412001
Handle Gear Shift assembly
Loading…
↗
35
9321009165
O-ring
Loading…
↗
36
61A4411200
Stay, handle gear shift
Loading…
↗
37
9701306012
Bolt(gh1)
Loading…
↗
38
9290306100
Washer(6a1)
Loading…
↗
39
9290306600
Washer, plain (646)
Loading…
↗
40
9531308600
Nut(6l2)
Loading…
↗
41
9038690M90
Bush(61a)
Loading…
↗
42
9149020012
Pin, cotter (648)
Loading…
↗
43
9020109M02
Washer, plate(61a)
Loading…
↗
44
61A1531500
Seal, crankcase
Loading…
↗
45
61A4272400
Grommet
Loading…
↗
46
61A4413800
Washer
Loading…
↗
47
9788506008
Screw, pan head(6a3)
Loading…
↗
48
65L4163201
Lever, magneto control
Loading…
↗
51
9701308045
Bolt
Loading…
↗
52
9299008200
Ybs66-8 washer, plain
Loading…
↗
53
9020612M00
Washer, wave (676)
Loading…
↗
54
9038708M16
Collar
Loading…
↗
55
61A4123700
Joint, link
Loading…
↗
56
9538005600
Nut, hexagon (663)
Loading…
↗
57
6H44123700
Joint, link
Loading…
↗
58
60V4123000
Cam accelerator comp
Loading…
↗
59
9020106M31
Washer (6a0)
Loading…
↗
60
9038706M29
Coller (6a0)
Loading…
↗
61
9020610M04
Washer, wave (676)
Loading…
↗
62
9011906MA4
Bolt, with washer
Loading…
↗
63
69L4274400
Stay
Loading…
↗
64
9015706006
-
Loading…
↗
65
9538006600
Nut(661)
Loading…
↗
66
6884419400
Cap
Loading…
↗
67
9015905M25
Screw,pan head (646)
Loading…
↗
