30DETO (2009)
CONTROL 1

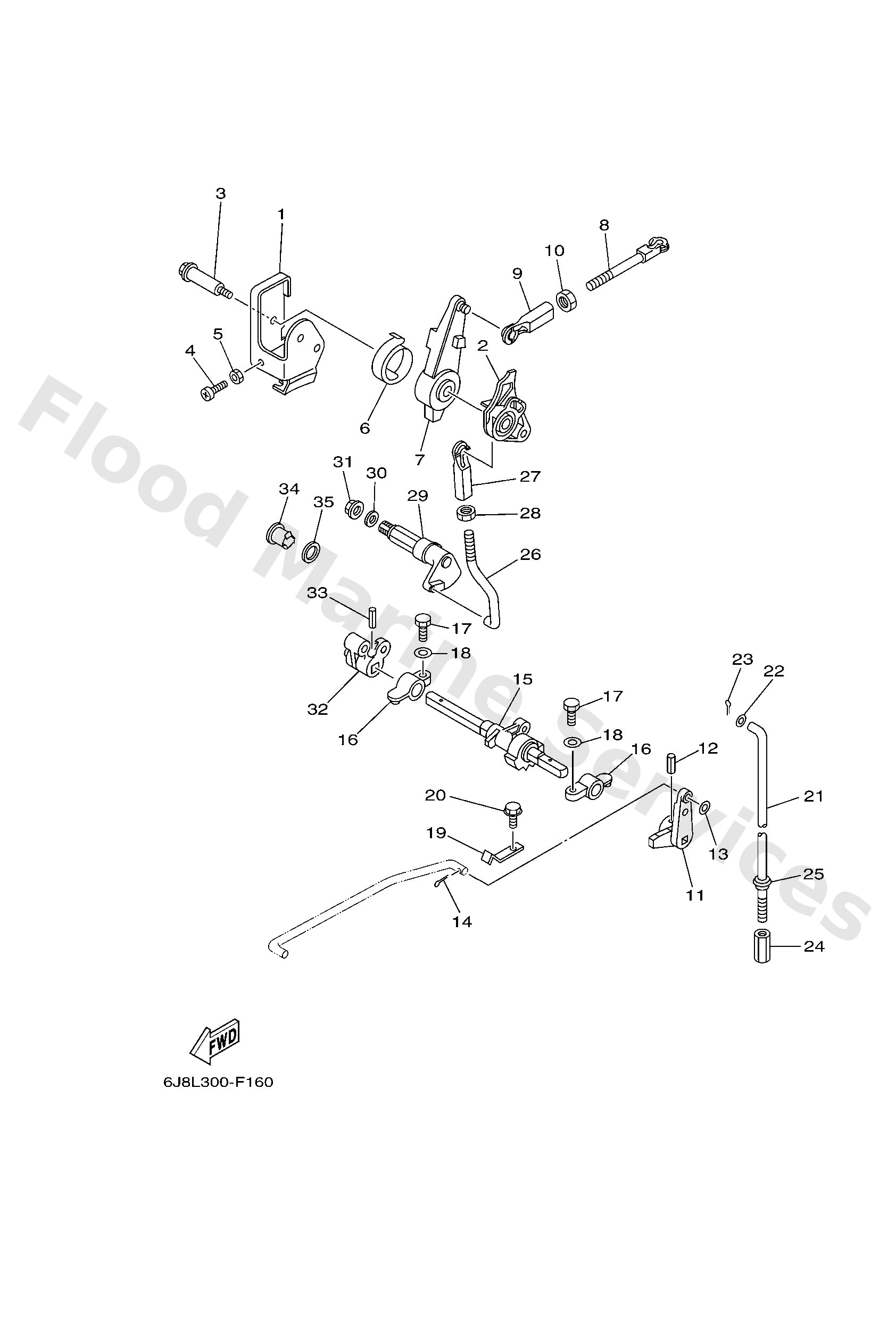

Diagram: CONTROL 1
Parts List
Reference
Description
Price
1
6J81449700
Stay, throttle wire
Loading…
↗
2
6J84121300
Cam, accel.
Loading…
↗
3
9010906M28
Bolt(6j8)
Loading…
↗
4
9788006025
Screw, pan head(6b0)
Loading…
↗
5
9530306600
Nut(661)
Loading…
↗
6
6J84216700
Spring 1
Loading…
↗
7
6J84163102
Lever, magneto control
Loading…
↗
8
6894216901
Joint
Loading…
↗
9
6824123700
Joint, link 2
Loading…
↗
10
9538005600
Nut, hexagon (663)
Loading…
↗
11
6J84412300
Arm, shift rod
Loading…
↗
12
9025403M04
Pin, spring (6h3)
Loading…
↗
13
9299006200
Ybs66-6 washer, plain
Loading…
↗
14
9149020012
Pin, cotter (648)
Loading…
↗
15
6J84412100
Lever, shift rod
Loading…
↗
16
6G1416620194
Bracket
Loading…
↗
17
9701306020
Bolt(62y)
Loading…
↗
18
9290306600
Washer, plain (646)
Loading…
↗
19
6J84411600
Spring
Loading…
↗
20
9589506012
Bolt, flange deep recess
Loading…
↗
21
6J84414300
Rod, shift
Loading…
↗
22
9299005600
Washer, plain (646)
Loading…
↗
23
9149016010
Pin, cotter
Loading…
↗
24
9017006015
Connector, shift rod
Loading…
↗
25
6894337301
Seal, damper
Loading…
↗
26
6J84219200
Rod 2
Loading…
↗
29
6J84215401
Lever, throttle control
Loading…
↗
30
9020210024
Washer plate 648441880000
Loading…
↗
31
9578008300
Nut, nylon (6j8)
Loading…
↗
32
6J84414200
Joint
Loading…
↗
34
6824272600
Grommet 3
Loading…
↗
35
9020212M17
Washer, plate (6e0)
Loading…
↗
