30DMH (2003)
CONTROL 1

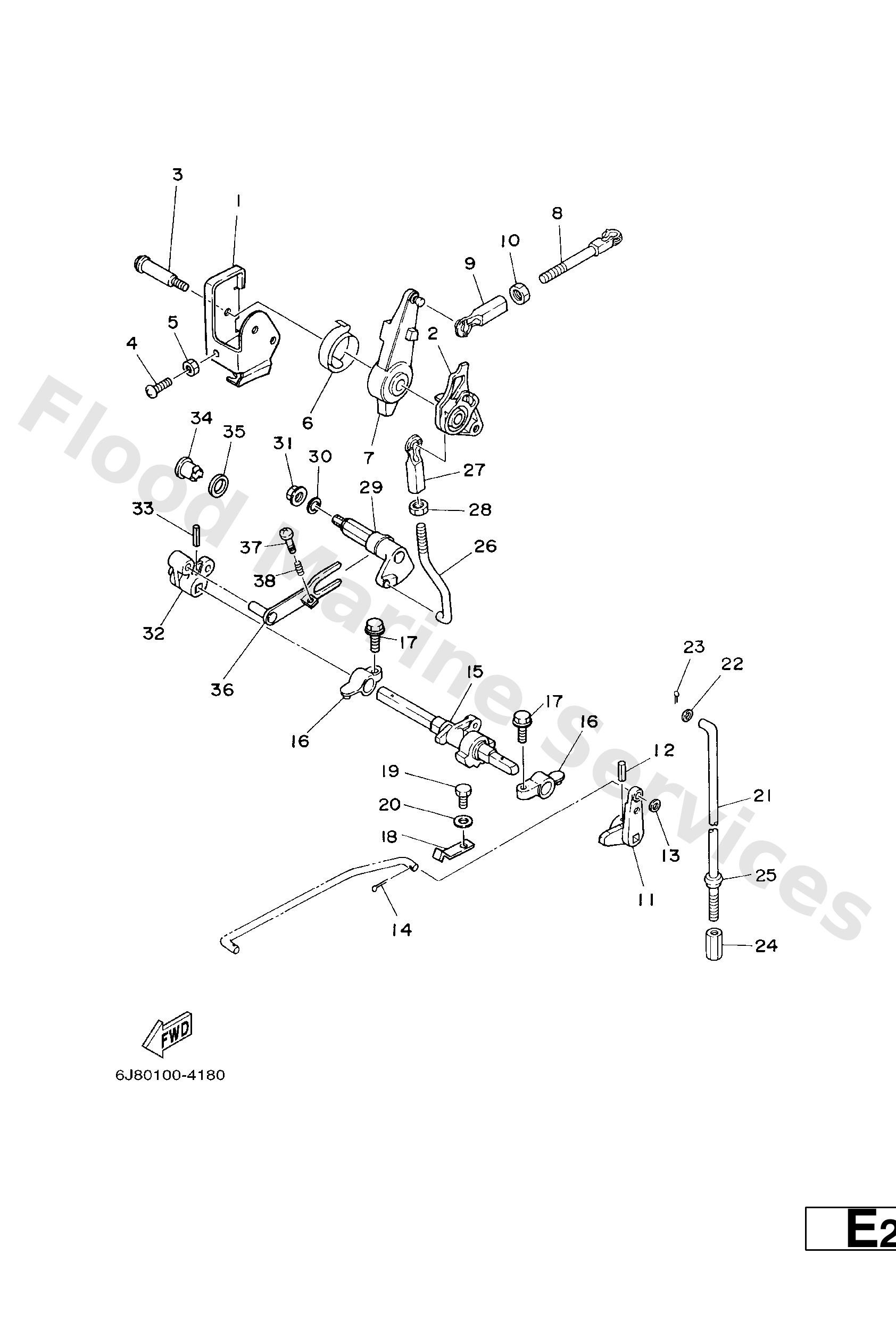

Diagram: CONTROL 1
Parts List
Reference
Description
Price
1
6J8−14497−00
Stay, throttle wire
Loading…
↗
2
6J8−41213−00
Cam, accel.
Loading…
↗
3
90109−06M28
Bolt(6j8)
Loading…
↗
4
97880−06025
Screw, pan head(6b0)
Loading…
↗
5
95303−06600
Nut(661)
Loading…
↗
6
6J8−42167−00
Spring 1
Loading…
↗
7
6J8−41631−02
Lever, magneto control
Loading…
↗
8
689−42169−01
Joint
Loading…
↗
9
682−41237−00
Joint, link 2
Loading…
↗
10
95380−05600
Nut, hexagon (663)
Loading…
↗
11
6J8−44123−00
Arm, shift rod
Loading…
↗
12
90254−03M04
Pin, spring (6h3)
Loading…
↗
13
92990−06200
Ybs66-6 washer, plain
Loading…
↗
14
91490−20012
Pin, cotter (648)
Loading…
↗
15
6J8−44121−00
Lever, shift rod
Loading…
↗
16
6G1−41662−01−94
Bracket
Loading…
↗
17
97513−06520
Bolt, with washer(61b)
Loading…
↗
18
6J8−44116−00
Spring
Loading…
↗
19
97095−06012
Bolt(gh1)
Loading…
↗
20
92995−06600
Washer, plain (646)
Loading…
↗
21
6J8−44143−00
Rod, shift
Loading…
↗
22
92990−05600
Washer, plain (646)
Loading…
↗
23
91490−16010
Pin, cotter
Loading…
↗
24
90170−06015
Connector, shift rod
Loading…
↗
25
689−43373−01
Seal, damper
Loading…
↗
26
6J8−42192−00
Rod 2
Loading…
↗
29
6J8−42154−01
Lever, throttle control
Loading…
↗
30
90202−10024
Washer plate 648441880000
Loading…
↗
31
95780−08300
Nut, nylon (6j8)
Loading…
↗
32
6J8−44142−00
Joint
Loading…
↗
34
682−42726−00
Grommet 3
Loading…
↗
35
90202−12M17
Washer, plate (6e0)
Loading…
↗
36
6J8−41211−00
Link, accel.
Loading…
↗
37
97880−04020
Screw, pan head (7h3)
Loading…
↗
38
90501−08M66
Spring, compression(6j8)
Loading…
↗
