40JMH (2003)
CONTROL 1

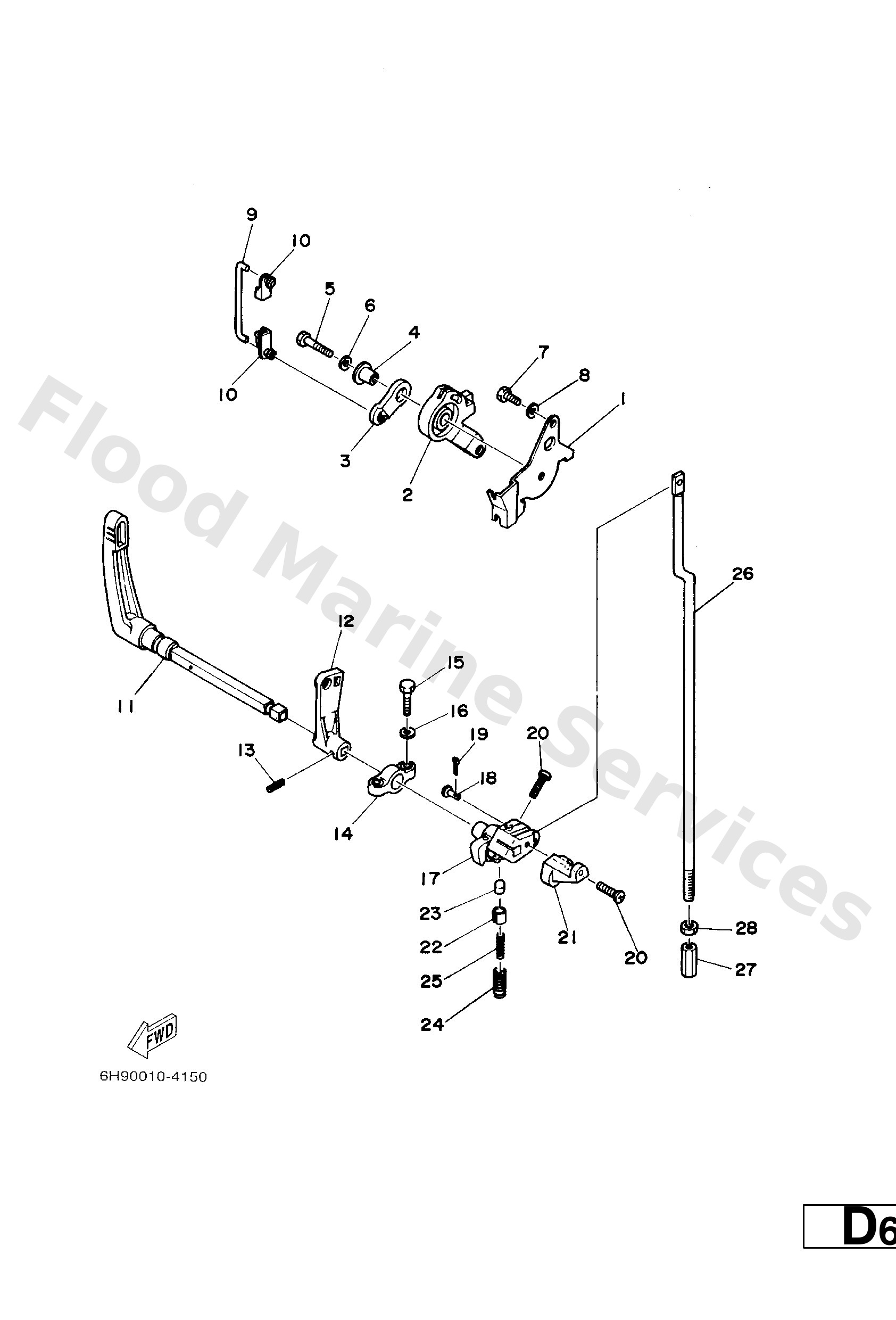

Diagram: CONTROL 1
Parts List
Reference
Description
Price
1
6F5−14497−00
Stay, throttle wire
Loading…
↗
2
6F5−41638−00
Pulley
Loading…
↗
3
6F5−41283−00
Lever, free accel
Loading…
↗
4
90387−06M29
Coller (6a0)
Loading…
↗
5
97095−06030
Bolt(jf7)
Loading…
↗
6
92995−06600
Washer, plain (646)
Loading…
↗
7
97095−06016
Bolt, hexagon deep recess
Loading…
↗
9
6F5−41211−00
Link, accel
Loading…
↗
10
6E9−41237−00
Joint, link
Loading…
↗
11
6F5−44111−00
Handle, gear shift
Loading…
↗
12
6F5−44125−00
Lever, shift rod 2
Loading…
↗
13
91690−25016
Pin, spring
Loading…
↗
14
6F5−41662−00
Bracket 2
Loading…
↗
15
97013−06025
Bolt(62y)
Loading…
↗
16
92903−06600
Washer, plain (646)
Loading…
↗
17
6F5−44121−00
Lever, shift rod
Loading…
↗
18
90240−05M09
Pin, with hole (6f5)
Loading…
↗
19
91490−16010
Pin, cotter
Loading…
↗
20
97780−40520
Ybs83-420 screw,panh,tapping
Loading…
↗
21
6F5−44173−00
15 −
Loading…
↗
22
6F5−42715−00
Bushing 2
Loading…
↗
23
6F5−44167−00
Plunger, shift cam
Loading…
↗
24
90501−12M36
Spring (6f5)
Loading…
↗
25
90501−07M33
Spring (6f5)
Loading…
↗
26
676−44143−00
Rod, shift 1
Loading…
↗
27
648−44146−00
Connector, shift rod 2
Loading…
↗
28
90170−07021
Nut hexagon 648441280000
Loading…
↗
